Multi-Energy High Resolution Modular Scan System for Internal and External Concealed Commodities MESMERISE June 6th 2017 www.h2020mesmerise.eu

www.h2020mesmerise.eu

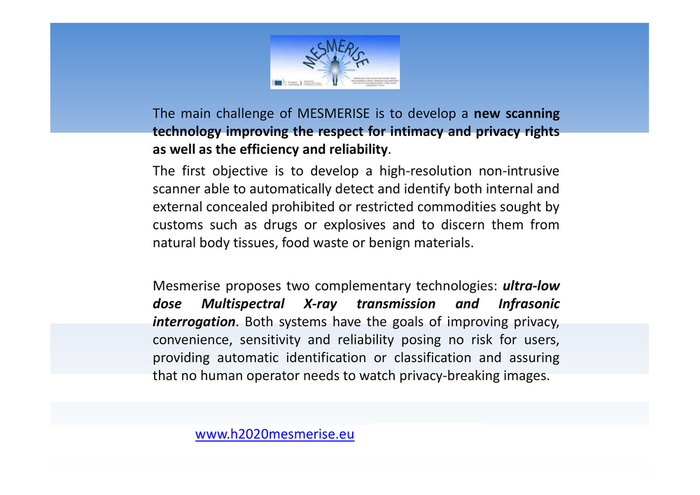

The main challenge of MESMERISE is to develop a new scanning technology improving the respect for intimacy and privacy rights as well as the efficiency and reliability. The first objective is to develop a high-resolution non-intrusive scanner able to automatically detect and identify both internal and external concealed prohibited or restricted commodities sought by customs such as drugs or explosives and to discern them from natural body tissues, food waste or benign materials. Mesmerise proposes two complementary technologies: ultra-low dose Multispectral X-ray transmission and Infrasonic interrogation. Both systems have the goals of improving privacy, convenience, sensitivity and reliability posing no risk for users, providing automatic identification or classification and assuring that no human operator needs to watch privacy-breaking images. www.h2020mesmerise.eu

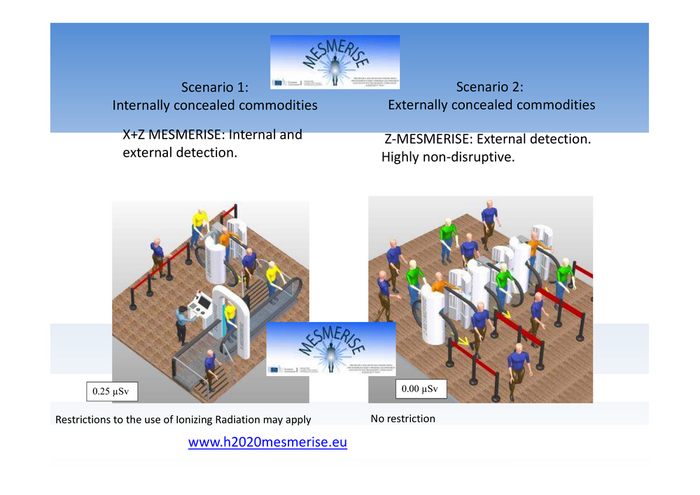

Scenario 1:                                Scenario 2: Internally concealed commodities             Externally concealed commodities X+Z MESMERISE: Internal and               Z-MESMERISE: External detection. external detection.                       Highly non-disruptive. 0.25 µSv                                             0.00 µSv Restrictions to the use of Ionizing Radiation may apply No restriction www.h2020mesmerise.eu

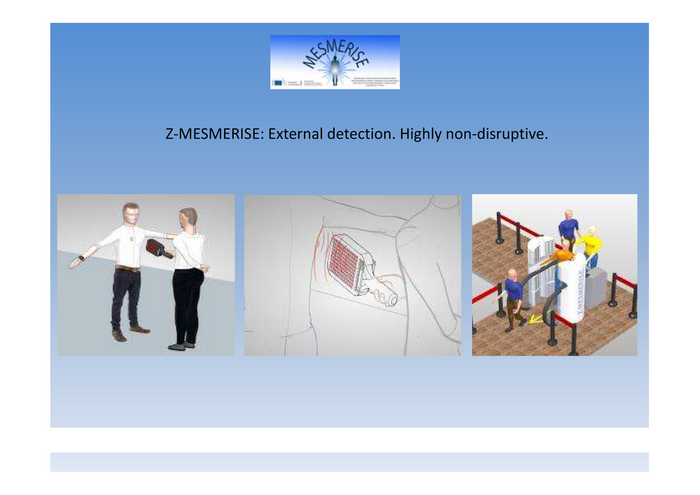

Z-MESMERISE: External detection. Highly non-disruptive.

Acoustic Near Field holography (ANFH) Acoustic Near-Field Impedance Holography Low frequency MEMS arrays

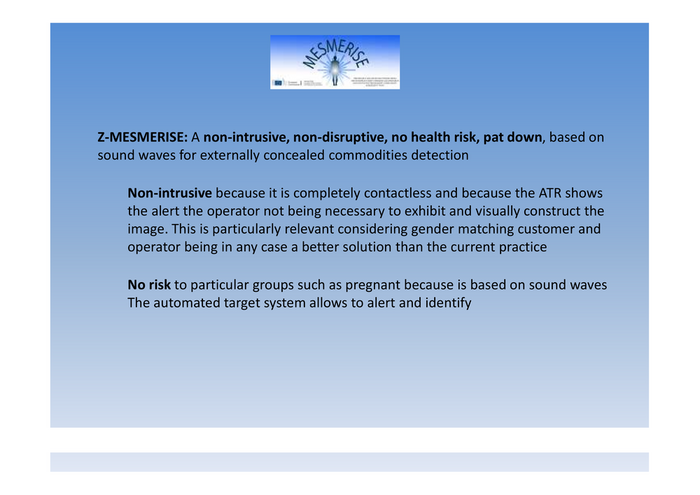

Z-MESMERISE: A non-intrusive, non-disruptive, no health risk, pat down, based on sound waves for externally concealed commodities detection Non-intrusive because it is completely contactless and because the ATR shows the alert the operator not being necessary to exhibit and visually construct the image. This is particularly relevant considering gender matching customer and operator being in any case a better solution than the current practice No risk to particular groups such as pregnant because is based on sound waves The automated target system allows to alert and identify

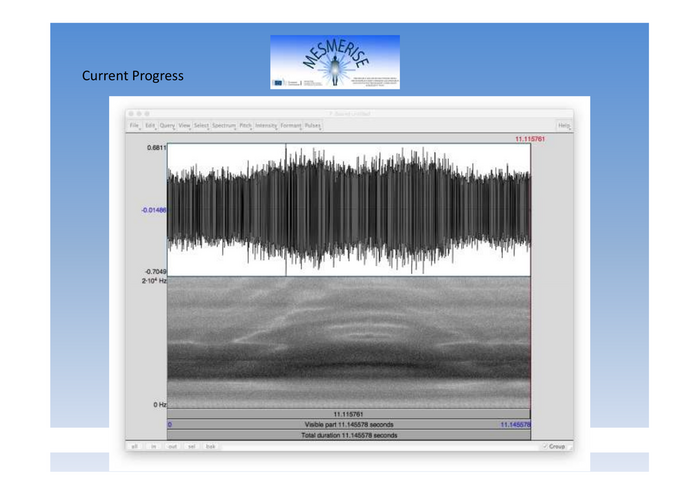

Current Progress

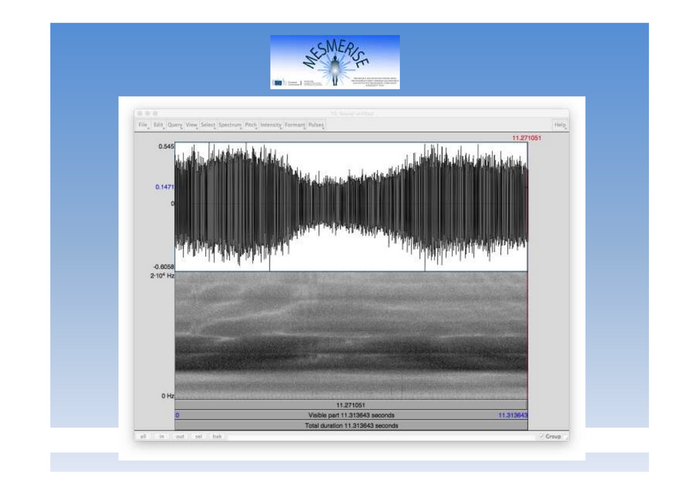

11.271051

in rt



bak Group
