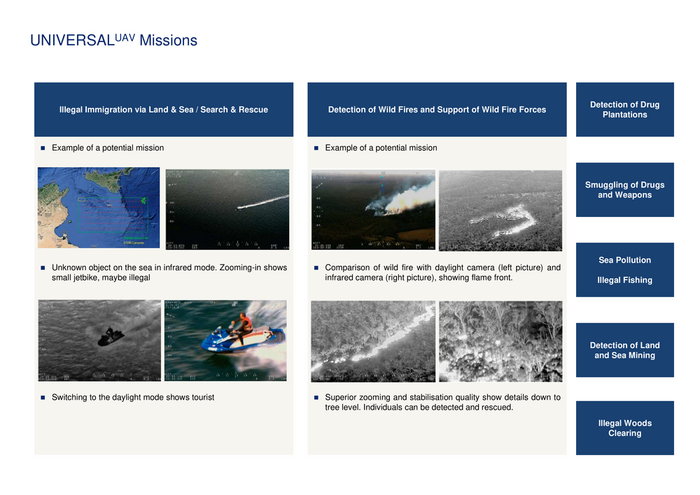

UNIVERSAL           UAV    Missions Detection of Drug Illegal Immigration via Land & Sea / Search & Rescue         Detection of Wild Fires and Support of Wild Fire Forces Plantations Example of a potential mission                               Example of a potential mission Smuggling of Drugs and Weapons Sea Pollution Unknown object on the sea in infrared mode. Zooming-in shows Comparison of wild fire with daylight camera (left picture) and small jetbike, maybe illegal                                 infrared camera (right picture), showing flame front.              Illegal Fishing Detection of Land and Sea Mining Switching to the daylight mode shows tourist                 Superior zooming and stabilisation quality show details down to tree level. Individuals can be detected and rescued. Illegal Woods Clearing

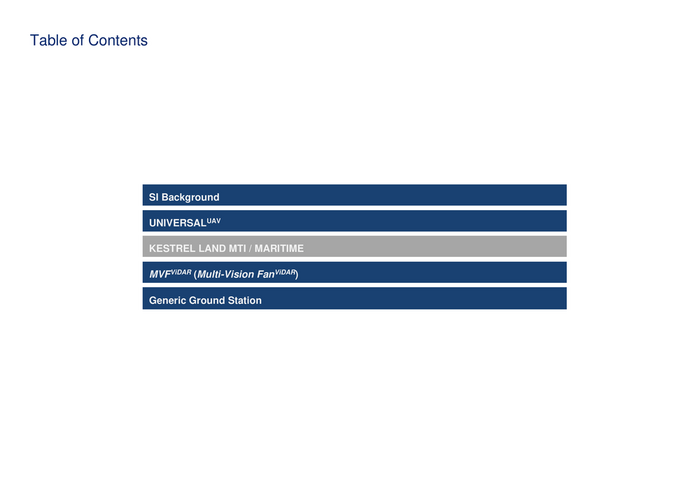

Table of Contents SI Background UNIVERSAL   UAV KESTREL LAND MTI / MARITIME MVF ViDAR (Multi-Vision FanViDAR) Generic Ground Station

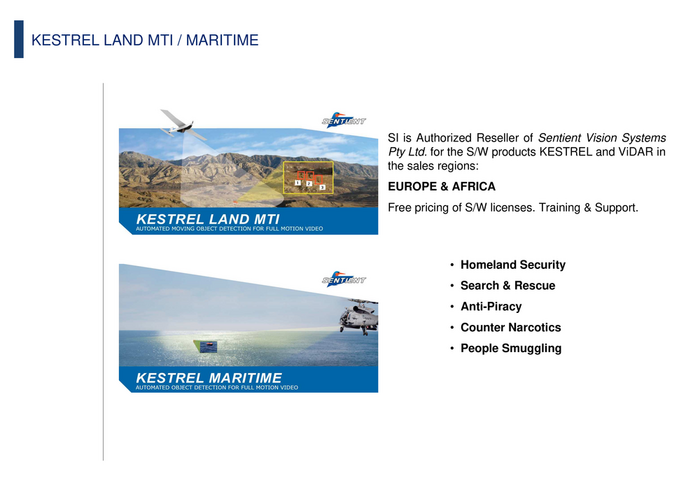

KESTREL LAND MTI / MARITIME SI is Authorized Reseller of Sentient Vision Systems Pty Ltd. for the S/W products KESTREL and ViDAR in the sales regions: EUROPE & AFRICA Free pricing of S/W licenses. Training & Support. • Homeland Security • Search & Rescue • Anti-Piracy • Counter Narcotics • People Smuggling

Table of Contents SI Background UNIVERSAL   UAV KESTREL MTI / MARITIME MVF ViDAR (Multi-Vision FanViDAR) Generic Ground Station

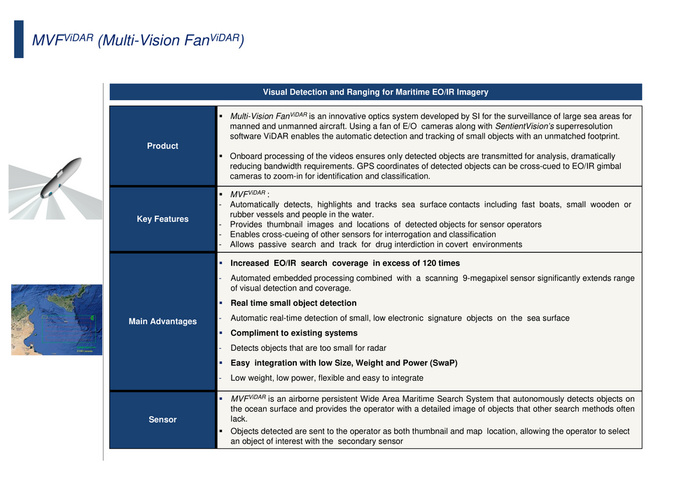

MVF ViDAR (Multi-Vision     FanViDAR  ) Visual Detection and Ranging for Maritime EO/IR Imagery Multi-Vision FanViDAR is an innovative optics system developed by SI for the surveillance of large sea areas for manned and unmanned aircraft. Using a fan of E/O cameras along with SentientVision’s superresolution software ViDAR enables the automatic detection and tracking of small objects with an unmatched footprint. Product Onboard processing of the videos ensures only detected objects are transmitted for analysis, dramatically reducing bandwidth requirements. GPS coordinates of detected objects can be cross-cued to EO/IR gimbal cameras to zoom-in for identification and classification. MVF  ViDAR  : - Automatically detects, highlights and tracks sea surface contacts including fast boats, small wooden or rubber vessels and people in the water. Key Features - Provides thumbnail images and locations of detected objects for sensor operators - Enables cross-cueing of other sensors for interrogation and classification - Allows passive search and track for drug interdiction in covert environments Increased EO/IR search coverage in excess of 120 times - Automated embedded processing combined with a scanning 9-megapixel sensor significantly extends range of visual detection and coverage. Real time small object detection Main Advantages   - Automatic real-time detection of small, low electronic signature objects on the sea surface Compliment to existing systems - Detects objects that are too small for radar Easy integration with low Size, Weight and Power (SwaP) - Low weight, low power, flexible and easy to integrate MVF   ViDAR is an airborne persistent Wide Area Maritime Search System that autonomously detects objects on the ocean surface and provides the operator with a detailed image of objects that other search methods often Sensor          lack. Objects detected are sent to the operator as both thumbnail and map location, allowing the operator to select an object of interest with the secondary sensor

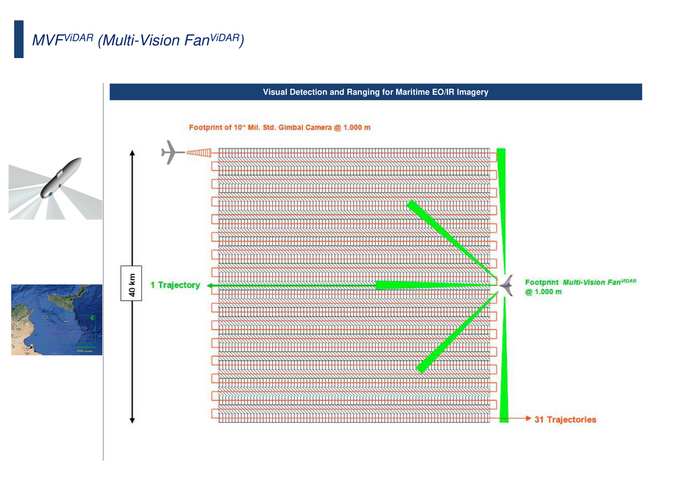

MVF ViDAR (Multi-Vision FanViDAR) Visual Detection and Ranging for Maritime EO/IR Imagery

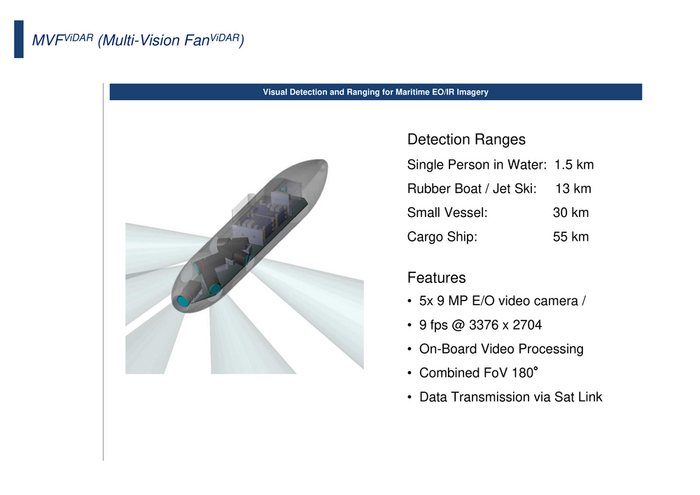

MVF ViDAR (Multi-Vision FanViDAR) Visual Detection and Ranging for Maritime EO/IR Imagery Detection Ranges Single Person in Water: 1.5 km Rubber Boat / Jet Ski:  13 km Small Vessel:           30 km Cargo Ship:             55 km Features • 5x 9 MP E/O video camera / • 9 fps @ 3376 x 2704 • On-Board Video Processing • Combined FoV 180° • Data Transmission via Sat Link

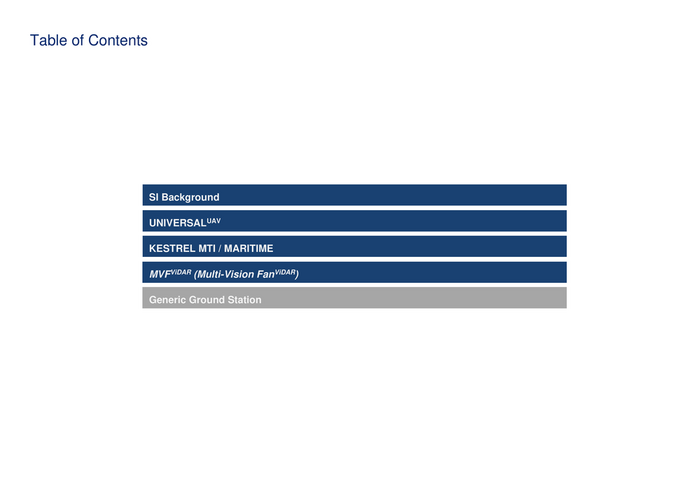

Table of Contents SI Background UNIVERSAL   UAV KESTREL MTI / MARITIME MVF ViDAR (Multi-Vision FanViDAR) Generic Ground Station

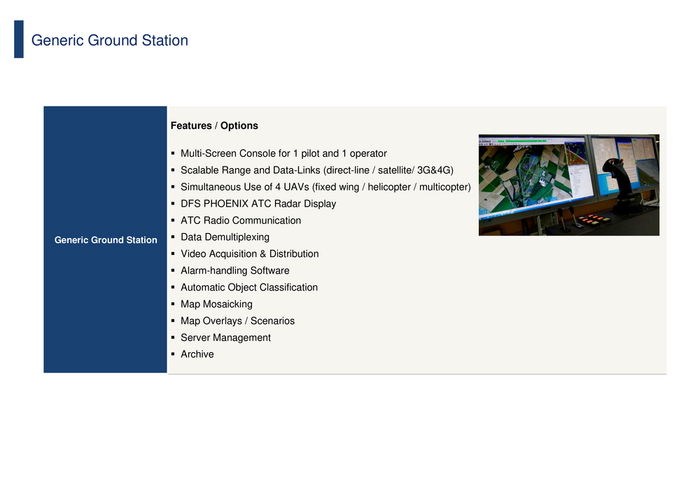

Generic Ground Station Features / Options Multi-Screen Console for 1 pilot and 1 operator Scalable Range and Data-Links (direct-line / satellite/ 3G&4G) Simultaneous Use of 4 UAVs (fixed wing / helicopter / multicopter) DFS PHOENIX ATC Radar Display ATC Radio Communication Generic Ground Station   Data Demultiplexing Video Acquisition & Distribution Alarm-handling Software Automatic Object Classification Map Mosaicking Map Overlays / Scenarios Server Management Archive

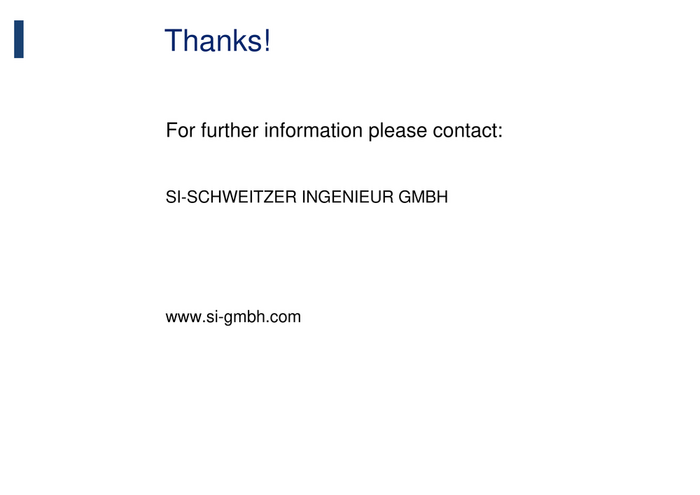

Thanks! For further information please contact: SI-SCHWEITZER INGENIEUR GMBH www.si-gmbh.com
