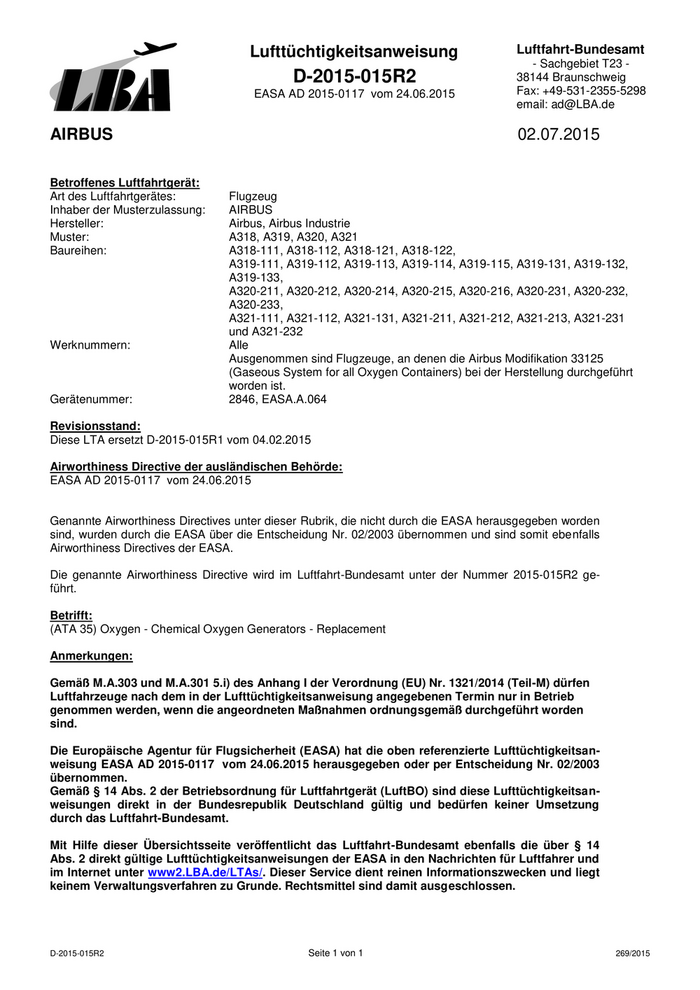

Lufttüchtigkeitsanweisung Luftfahrt-Bundesamt
- Sachgebiet T23 -
D-2015-015R2 38144 Braunschweig
EASA AD 2015-0117 vom 24.06.2015 Fax: +49-531-2355-5298
email: ad@LBA.de
AIRBUS 02.07.2015
Betroffenes Luftfahrtgerät:
Art des Luftfahrtgerätes: Flugzeug
Inhaber der Musterzulassung: AIRBUS
Hersteller: Airbus, Airbus Industrie
Muster: A318, A319, A320, A321
Baureihen: A318-111, A318-112, A318-121, A318-122,
A319-111, A319-112, A319-113, A319-114, A319-115, A319-131, A319-132,
A319-133,
A320-211, A320-212, A320-214, A320-215, A320-216, A320-231, A320-232,
A320-233,
A321-111, A321-112, A321-131, A321-211, A321-212, A321-213, A321-231
und A321-232
Werknummern: Alle
Ausgenommen sind Flugzeuge, an denen die Airbus Modifikation 33125
(Gaseous System for all Oxygen Containers) bei der Herstellung durchgeführt
worden ist.
Gerätenummer: 2846, EASA.A.064
Revisionsstand:
Diese LTA ersetzt D-2015-015R1 vom 04.02.2015
Airworthiness Directive der ausländischen Behörde:
EASA AD 2015-0117 vom 24.06.2015
Genannte Airworthiness Directives unter dieser Rubrik, die nicht durch die EASA herausgegeben worden
sind, wurden durch die EASA über die Entscheidung Nr. 02/2003 übernommen und sind somit ebenfalls
Airworthiness Directives der EASA.
Die genannte Airworthiness Directive wird im Luftfahrt-Bundesamt unter der Nummer 2015-015R2 ge-
führt.
Betrifft:
(ATA 35) Oxygen - Chemical Oxygen Generators - Replacement
Anmerkungen:
Gemäß M.A.303 und M.A.301 5.i) des Anhang I der Verordnung (EU) Nr. 1321/2014 (Teil-M) dürfen
Luftfahrzeuge nach dem in der Lufttüchtigkeitsanweisung angegebenen Termin nur in Betrieb
genommen werden, wenn die angeordneten Maßnahmen ordnungsgemäß durchgeführt worden
sind.
Die Europäische Agentur für Flugsicherheit (EASA) hat die oben referenzierte Lufttüchtigkeitsan-
weisung EASA AD 2015-0117 vom 24.06.2015 herausgegeben oder per Entscheidung Nr. 02/2003
übernommen.
Gemäß § 14 Abs. 2 der Betriebsordnung für Luftfahrtgerät (LuftBO) sind diese Lufttüchtigkeitsan-
weisungen direkt in der Bundesrepublik Deutschland gültig und bedürfen keiner Umsetzung
durch das Luftfahrt-Bundesamt.
Mit Hilfe dieser Übersichtsseite veröffentlicht das Luftfahrt-Bundesamt ebenfalls die über § 14
Abs. 2 direkt gültige Lufttüchtigkeitsanweisungen der EASA in den Nachrichten für Luftfahrer und
im Internet unter www2.LBA.de/LTAs/. Dieser Service dient reinen Informationszwecken und liegt
keinem Verwaltungsverfahren zu Grunde. Rechtsmittel sind damit ausgeschlossen.
D-2015-015R2 Seite 1 von 1 269/2015

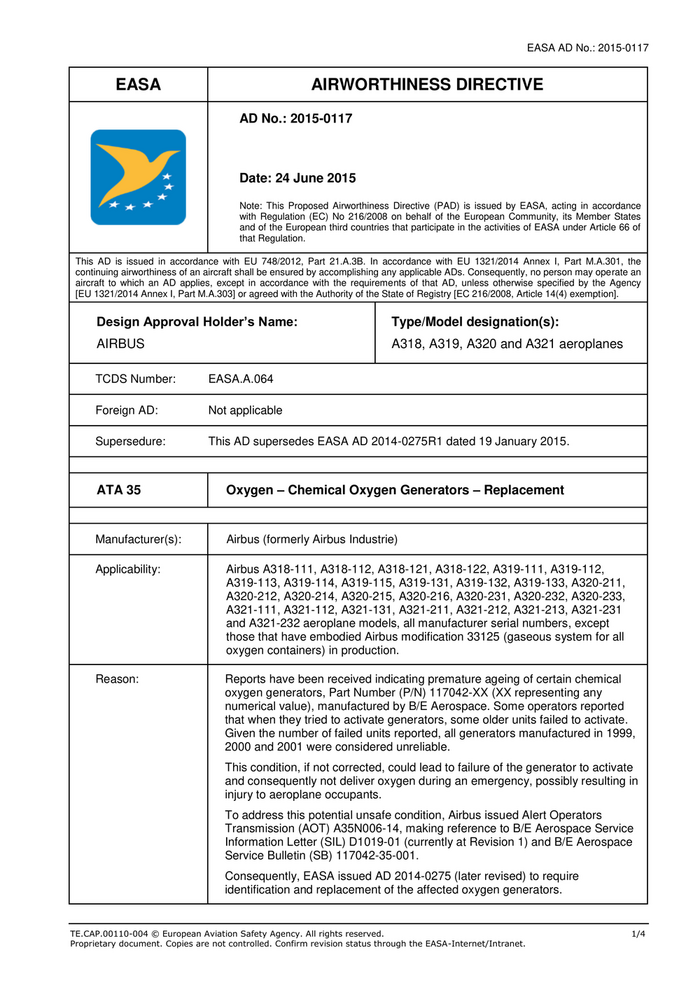

EASA AD No.: 2015-0117
EASA AIRWORTHINESS DIRECTIVE
AD No.: 2015-0117
Date: 24 June 2015
Note: This Proposed Airworthiness Directive (PAD) is issued by EASA, acting in accordance
with Regulation (EC) No 216/2008 on behalf of the European Community, its Member States
and of the European third countries that participate in the activities of EASA under Article 66 of
that Regulation.
This AD is issued in accordance with EU 748/2012, Part 21.A.3B. In accordance with EU 1321/2014 Annex I, Part M.A.301, the
continuing airworthiness of an aircraft shall be ensured by accomplishing any applicable ADs. Consequently, no person may operate an
aircraft to which an AD applies, except in accordance with the requirements of that AD, unless otherwise specified by the Agency
[EU 1321/2014 Annex I, Part M.A.303] or agreed with the Authority of the State of Registry [EC 216/2008, Article 14(4) exemption].
Design Approval Holder’s Name: Type/Model designation(s):
AIRBUS A318, A319, A320 and A321 aeroplanes
TCDS Number: EASA.A.064
Foreign AD: Not applicable
Supersedure: This AD supersedes EASA AD 2014-0275R1 dated 19 January 2015.
ATA 35 Oxygen – Chemical Oxygen Generators – Replacement
Manufacturer(s): Airbus (formerly Airbus Industrie)
Applicability: Airbus A318-111, A318-112, A318-121, A318-122, A319-111, A319-112,
A319-113, A319-114, A319-115, A319-131, A319-132, A319-133, A320-211,
A320-212, A320-214, A320-215, A320-216, A320-231, A320-232, A320-233,
A321-111, A321-112, A321-131, A321-211, A321-212, A321-213, A321-231
and A321-232 aeroplane models, all manufacturer serial numbers, except
those that have embodied Airbus modification 33125 (gaseous system for all
oxygen containers) in production.
Reason: Reports have been received indicating premature ageing of certain chemical
oxygen generators, Part Number (P/N) 117042-XX (XX representing any
numerical value), manufactured by B/E Aerospace. Some operators reported
that when they tried to activate generators, some older units failed to activate.
Given the number of failed units reported, all generators manufactured in 1999,
2000 and 2001 were considered unreliable.
This condition, if not corrected, could lead to failure of the generator to activate
and consequently not deliver oxygen during an emergency, possibly resulting in
injury to aeroplane occupants.
To address this potential unsafe condition, Airbus issued Alert Operators
Transmission (AOT) A35N006-14, making reference to B/E Aerospace Service
Information Letter (SIL) D1019-01 (currently at Revision 1) and B/E Aerospace
Service Bulletin (SB) 117042-35-001.
Consequently, EASA issued AD 2014-0275 (later revised) to require
identification and replacement of the affected oxygen generators.
TE.CAP.00110-004 © European Aviation Safety Agency. All rights reserved. 1/4
Proprietary document. Copies are not controlled. Confirm revision status through the EASA-Internet/Intranet.
EASA AD No.: 2015-0117
Since EASA AD 2014-0275R1 was issued, and following new investigation
results, EASA have decided to introduce a life limitation concerning all P/N
117042-XX chemical oxygen generators, manufactured by B/E Aerospace.
For the reason described above, this AD retains the requirements of the EASA
AD 2014-0275R1, which is superseded, expands the scope of the AD to include
chemical oxygen generators manufactured after 2001, and requires their
removal from service before exceeding 10 years since date of manufacture.
Effective Date: 08 July 2015
Required Action(s) Required as indicated, unless accomplished previously:
and Compliance Partial restatement of the requirements of EASA AD 2014-0275R1:
Time(s):
(1) Within the compliance time specified in Table 1 of this AD, as applicable,
identify the date of manufacture (see Appendix 1 of this AD where this is
located) of each oxygen generator, having a P/N as listed in Table 1 of this
AD, in accordance with the instructions of Airbus AOT A35N006-14. A
review of aeroplane maintenance records is acceptable to make this
identification, provided those records can be relied upon for the purpose of
this requirement.
(2) Within the compliance time specified in Table 1 of this AD, as applicable,
remove each affected oxygen generator from service and replace it with a
serviceable unit in accordance with the instructions of Airbus AOT
A35N006-14 (for 15 and 22 min generators), or the instructions of B/E
Aerospace SB 117042-35-001 (for 15 min generators).
B/E Aerospace SIL D1019-01 Revision 1 provides instructions for the
activation and the disposal of a removed oxygen generator. Airbus AOT
A35N006-14 (Appendix 1) includes instructions for reporting the results of
the activation (including no findings) of removed units.
Table 1 – Replacement of pre-2002 Oxygen Generators
P/N (type) Compliance Time
For units manufactured in or before 1999,
before exceeding 15 years since date of
manufacture, or within 30 days after 24
December 2014 [the effective date of the
117042-02 (15 min - 2 masks) original issue of EASA AD 2014-0275],
117042-03 (15 min - 3 masks) whichever occurs later
117042-04 (15 min - 4 masks) For units manufactured in 2000, within
117042-22 (22 min - 2 masks) 6 months after 24 December 2014 [the
117042-23 (22 min - 3 masks) effective date of the original issue of
117042-24 (22 min - 4 masks) EASA AD 2014-0275]
For units manufactured in 2001, within
12 months after 24 December 2014 [the
effective date of the original issue of
EASA AD 2014-0275]
New requirements of this AD:
(3) Within the compliance time as specified in Table 2 of this AD, as
applicable, and, for generators with a manufacturing date 2009 or later,
before exceeding 10 years since date of manufacture of the oxygen
generator, remove from service each oxygen generator manufactured by
B/E Aerospace and having a P/N 117042-XX, and replace it with a
serviceable unit (see Note) in accordance with the instructions of Airbus
AOT A35N006-14 (for 15 and 22 min generators), or the instructions of B/E
Aerospace SB 117042-35-001 (for 15 min generators).
TE.CAP.00110-004 © European Aviation Safety Agency. All rights reserved. 2/4
Proprietary document. Copies are not controlled. Confirm revision status through the EASA-Internet/Intranet.
EASA AD No.: 2015-0117

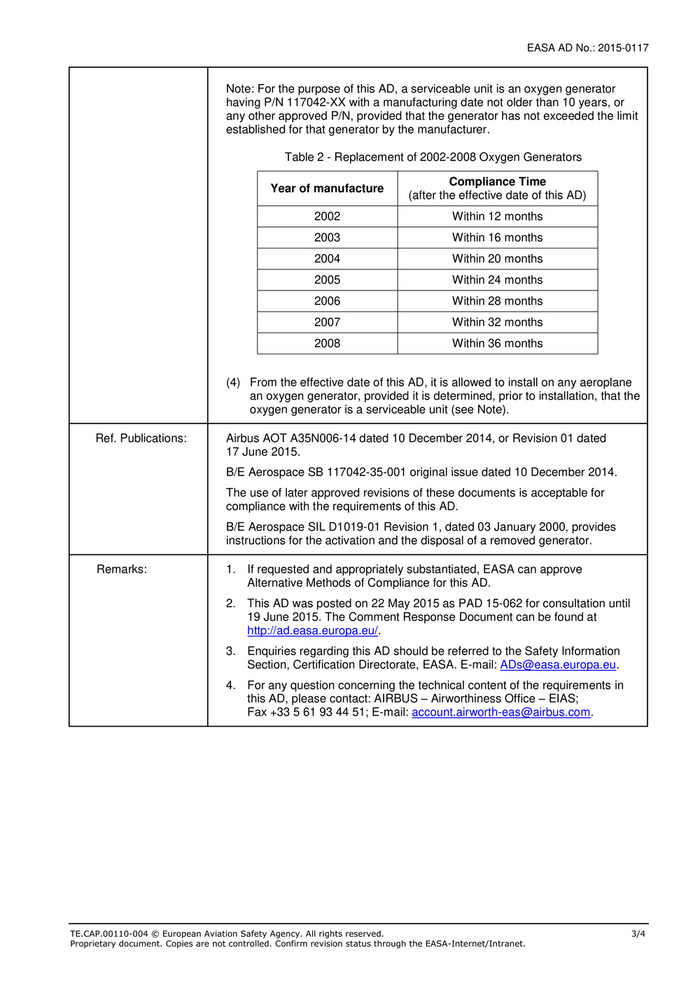

Note: For the purpose of this AD, a serviceable unit is an oxygen generator
having P/N 117042-XX with a manufacturing date not older than 10 years, or
any other approved P/N, provided that the generator has not exceeded the limit
established for that generator by the manufacturer.
Table 2 - Replacement of 2002-2008 Oxygen Generators
Compliance Time
Year of manufacture
(after the effective date of this AD)
2002 Within 12 months
2003 Within 16 months
2004 Within 20 months
2005 Within 24 months
2006 Within 28 months
2007 Within 32 months
2008 Within 36 months
(4) From the effective date of this AD, it is allowed to install on any aeroplane
an oxygen generator, provided it is determined, prior to installation, that the
oxygen generator is a serviceable unit (see Note).
Ref. Publications: Airbus AOT A35N006-14 dated 10 December 2014, or Revision 01 dated
17 June 2015.
B/E Aerospace SB 117042-35-001 original issue dated 10 December 2014.
The use of later approved revisions of these documents is acceptable for
compliance with the requirements of this AD.
B/E Aerospace SIL D1019-01 Revision 1, dated 03 January 2000, provides
instructions for the activation and the disposal of a removed generator.
Remarks: 1. If requested and appropriately substantiated, EASA can approve
Alternative Methods of Compliance for this AD.
2. This AD was posted on 22 May 2015 as PAD 15-062 for consultation until
19 June 2015. The Comment Response Document can be found at
http://ad.easa.europa.eu/.
3. Enquiries regarding this AD should be referred to the Safety Information
Section, Certification Directorate, EASA. E-mail: ADs@easa.europa.eu.
4. For any question concerning the technical content of the requirements in
this AD, please contact: AIRBUS – Airworthiness Office – EIAS;
Fax +33 5 61 93 44 51; E-mail: account.airworth-eas@airbus.com.
TE.CAP.00110-004 © European Aviation Safety Agency. All rights reserved. 3/4
Proprietary document. Copies are not controlled. Confirm revision status through the EASA-Internet/Intranet.
EASA AD No.: 2015-0117

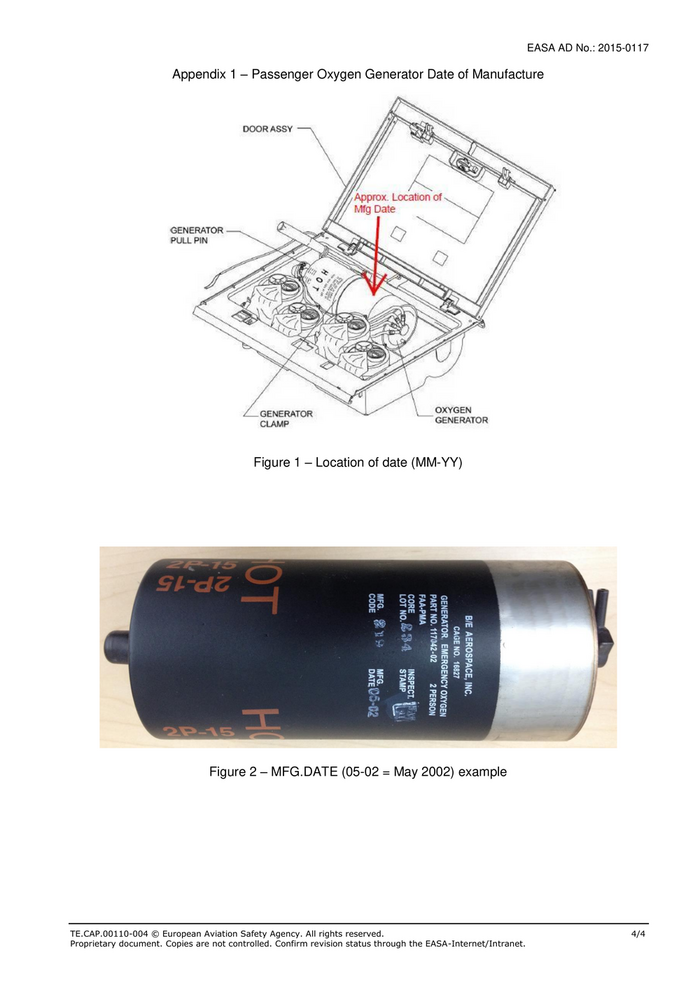

Appendix 1 – Passenger Oxygen Generator Date of Manufacture
Figure 1 – Location of date (MM-YY)
Figure 2 – MFG.DATE (05-02 = May 2002) example
TE.CAP.00110-004 © European Aviation Safety Agency. All rights reserved. 4/4
Proprietary document. Copies are not controlled. Confirm revision status through the EASA-Internet/Intranet.

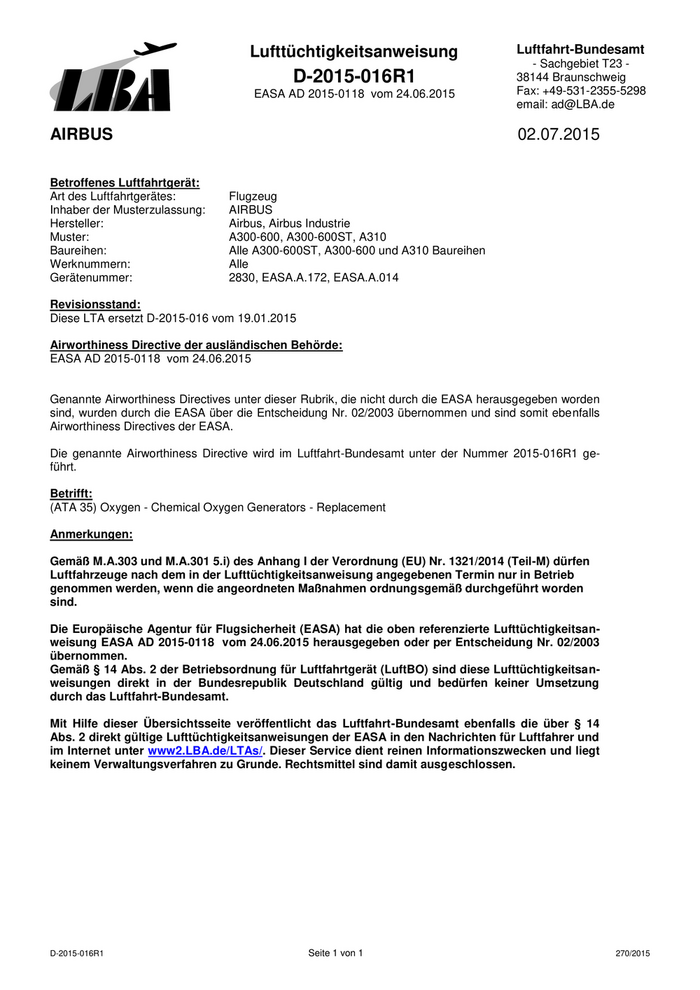

Lufttüchtigkeitsanweisung Luftfahrt-Bundesamt
- Sachgebiet T23 -
D-2015-016R1 38144 Braunschweig
EASA AD 2015-0118 vom 24.06.2015 Fax: +49-531-2355-5298
email: ad@LBA.de
AIRBUS 02.07.2015
Betroffenes Luftfahrtgerät:
Art des Luftfahrtgerätes: Flugzeug
Inhaber der Musterzulassung: AIRBUS
Hersteller: Airbus, Airbus Industrie
Muster: A300-600, A300-600ST, A310
Baureihen: Alle A300-600ST, A300-600 und A310 Baureihen
Werknummern: Alle
Gerätenummer: 2830, EASA.A.172, EASA.A.014
Revisionsstand:
Diese LTA ersetzt D-2015-016 vom 19.01.2015
Airworthiness Directive der ausländischen Behörde:
EASA AD 2015-0118 vom 24.06.2015
Genannte Airworthiness Directives unter dieser Rubrik, die nicht durch die EASA herausgegeben worden
sind, wurden durch die EASA über die Entscheidung Nr. 02/2003 übernommen und sind somit ebenfalls
Airworthiness Directives der EASA.
Die genannte Airworthiness Directive wird im Luftfahrt-Bundesamt unter der Nummer 2015-016R1 ge-
führt.
Betrifft:
(ATA 35) Oxygen - Chemical Oxygen Generators - Replacement
Anmerkungen:
Gemäß M.A.303 und M.A.301 5.i) des Anhang I der Verordnung (EU) Nr. 1321/2014 (Teil-M) dürfen
Luftfahrzeuge nach dem in der Lufttüchtigkeitsanweisung angegebenen Termin nur in Betrieb
genommen werden, wenn die angeordneten Maßnahmen ordnungsgemäß durchgeführt worden
sind.
Die Europäische Agentur für Flugsicherheit (EASA) hat die oben referenzierte Lufttüchtigkeitsan-
weisung EASA AD 2015-0118 vom 24.06.2015 herausgegeben oder per Entscheidung Nr. 02/2003
übernommen.
Gemäß § 14 Abs. 2 der Betriebsordnung für Luftfahrtgerät (LuftBO) sind diese Lufttüchtigkeitsan-
weisungen direkt in der Bundesrepublik Deutschland gültig und bedürfen keiner Umsetzung
durch das Luftfahrt-Bundesamt.
Mit Hilfe dieser Übersichtsseite veröffentlicht das Luftfahrt-Bundesamt ebenfalls die über § 14
Abs. 2 direkt gültige Lufttüchtigkeitsanweisungen der EASA in den Nachrichten für Luftfahrer und
im Internet unter www2.LBA.de/LTAs/. Dieser Service dient reinen Informationszwecken und liegt
keinem Verwaltungsverfahren zu Grunde. Rechtsmittel sind damit ausgeschlossen.
D-2015-016R1 Seite 1 von 1 270/2015

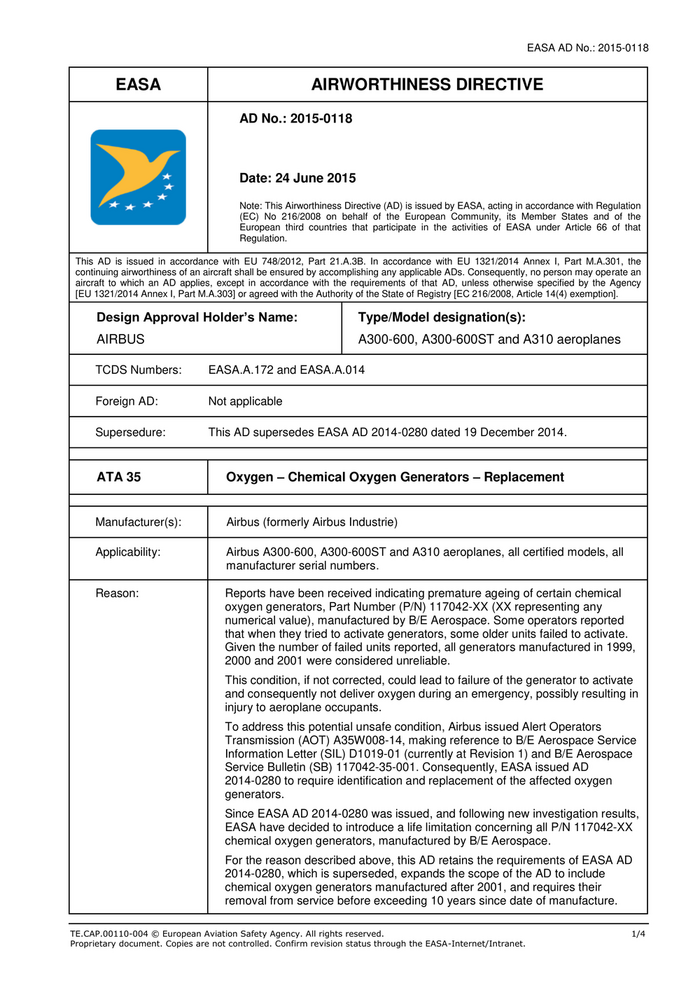

EASA AD No.: 2015-0118
EASA AIRWORTHINESS DIRECTIVE
AD No.: 2015-0118
Date: 24 June 2015
Note: This Airworthiness Directive (AD) is issued by EASA, acting in accordance with Regulation
(EC) No 216/2008 on behalf of the European Community, its Member States and of the
European third countries that participate in the activities of EASA under Article 66 of that
Regulation.
This AD is issued in accordance with EU 748/2012, Part 21.A.3B. In accordance with EU 1321/2014 Annex I, Part M.A.301, the
continuing airworthiness of an aircraft shall be ensured by accomplishing any applicable ADs. Consequently, no person may operate an
aircraft to which an AD applies, except in accordance with the requirements of that AD, unless otherwise specified by the Agency
[EU 1321/2014 Annex I, Part M.A.303] or agreed with the Authority of the State of Registry [EC 216/2008, Article 14(4) exemption].
Design Approval Holder’s Name: Type/Model designation(s):
AIRBUS A300-600, A300-600ST and A310 aeroplanes
TCDS Numbers: EASA.A.172 and EASA.A.014
Foreign AD: Not applicable
Supersedure: This AD supersedes EASA AD 2014-0280 dated 19 December 2014.
ATA 35 Oxygen – Chemical Oxygen Generators – Replacement
Manufacturer(s): Airbus (formerly Airbus Industrie)
Applicability: Airbus A300-600, A300-600ST and A310 aeroplanes, all certified models, all
manufacturer serial numbers.
Reason: Reports have been received indicating premature ageing of certain chemical
oxygen generators, Part Number (P/N) 117042-XX (XX representing any
numerical value), manufactured by B/E Aerospace. Some operators reported
that when they tried to activate generators, some older units failed to activate.
Given the number of failed units reported, all generators manufactured in 1999,
2000 and 2001 were considered unreliable.
This condition, if not corrected, could lead to failure of the generator to activate
and consequently not deliver oxygen during an emergency, possibly resulting in
injury to aeroplane occupants.
To address this potential unsafe condition, Airbus issued Alert Operators
Transmission (AOT) A35W008-14, making reference to B/E Aerospace Service
Information Letter (SIL) D1019-01 (currently at Revision 1) and B/E Aerospace
Service Bulletin (SB) 117042-35-001. Consequently, EASA issued AD
2014-0280 to require identification and replacement of the affected oxygen
generators.
Since EASA AD 2014-0280 was issued, and following new investigation results,
EASA have decided to introduce a life limitation concerning all P/N 117042-XX
chemical oxygen generators, manufactured by B/E Aerospace.
For the reason described above, this AD retains the requirements of EASA AD
2014-0280, which is superseded, expands the scope of the AD to include
chemical oxygen generators manufactured after 2001, and requires their
removal from service before exceeding 10 years since date of manufacture.
TE.CAP.00110-004 © European Aviation Safety Agency. All rights reserved. 1/4
Proprietary document. Copies are not controlled. Confirm revision status through the EASA-Internet/Intranet.

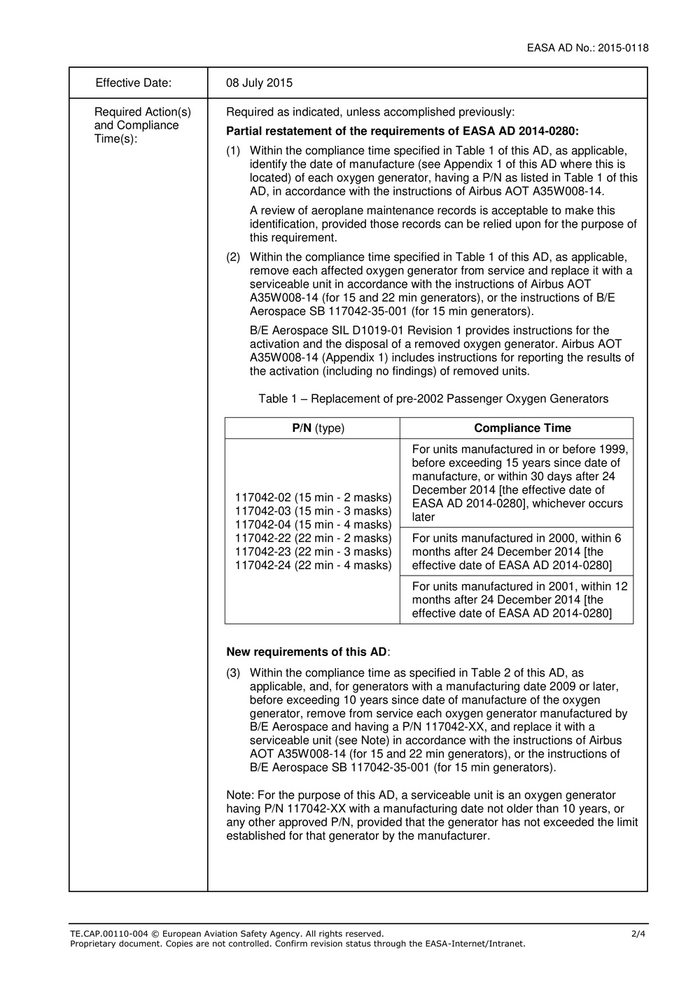

EASA AD No.: 2015-0118
Effective Date: 08 July 2015
Required Action(s) Required as indicated, unless accomplished previously:
and Compliance Partial restatement of the requirements of EASA AD 2014-0280:
Time(s):
(1) Within the compliance time specified in Table 1 of this AD, as applicable,
identify the date of manufacture (see Appendix 1 of this AD where this is
located) of each oxygen generator, having a P/N as listed in Table 1 of this
AD, in accordance with the instructions of Airbus AOT A35W008-14.
A review of aeroplane maintenance records is acceptable to make this
identification, provided those records can be relied upon for the purpose of
this requirement.
(2) Within the compliance time specified in Table 1 of this AD, as applicable,
remove each affected oxygen generator from service and replace it with a
serviceable unit in accordance with the instructions of Airbus AOT
A35W008-14 (for 15 and 22 min generators), or the instructions of B/E
Aerospace SB 117042-35-001 (for 15 min generators).
B/E Aerospace SIL D1019-01 Revision 1 provides instructions for the
activation and the disposal of a removed oxygen generator. Airbus AOT
A35W008-14 (Appendix 1) includes instructions for reporting the results of
the activation (including no findings) of removed units.
Table 1 – Replacement of pre-2002 Passenger Oxygen Generators
P/N (type) Compliance Time
For units manufactured in or before 1999,
before exceeding 15 years since date of
manufacture, or within 30 days after 24
December 2014 [the effective date of
117042-02 (15 min - 2 masks)
EASA AD 2014-0280], whichever occurs
117042-03 (15 min - 3 masks)
later
117042-04 (15 min - 4 masks)
117042-22 (22 min - 2 masks) For units manufactured in 2000, within 6
117042-23 (22 min - 3 masks) months after 24 December 2014 [the
117042-24 (22 min - 4 masks) effective date of EASA AD 2014-0280]
For units manufactured in 2001, within 12
months after 24 December 2014 [the
effective date of EASA AD 2014-0280]
New requirements of this AD:
(3) Within the compliance time as specified in Table 2 of this AD, as
applicable, and, for generators with a manufacturing date 2009 or later,
before exceeding 10 years since date of manufacture of the oxygen
generator, remove from service each oxygen generator manufactured by
B/E Aerospace and having a P/N 117042-XX, and replace it with a
serviceable unit (see Note) in accordance with the instructions of Airbus
AOT A35W008-14 (for 15 and 22 min generators), or the instructions of
B/E Aerospace SB 117042-35-001 (for 15 min generators).
Note: For the purpose of this AD, a serviceable unit is an oxygen generator
having P/N 117042-XX with a manufacturing date not older than 10 years, or
any other approved P/N, provided that the generator has not exceeded the limit
established for that generator by the manufacturer.
TE.CAP.00110-004 © European Aviation Safety Agency. All rights reserved. 2/4
Proprietary document. Copies are not controlled. Confirm revision status through the EASA-Internet/Intranet.

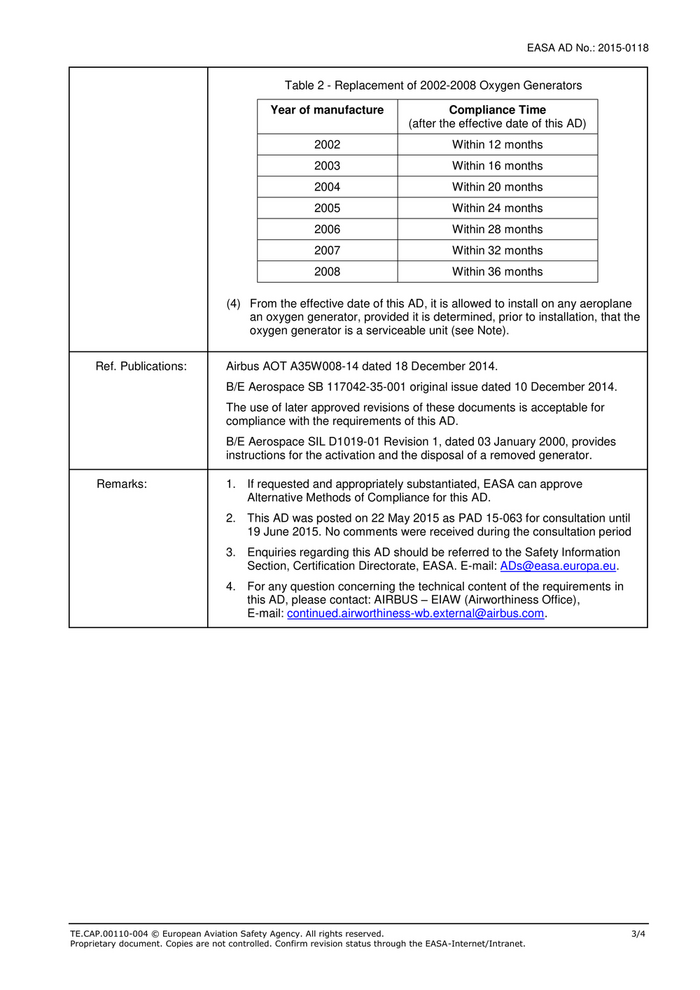

EASA AD No.: 2015-0118
Table 2 - Replacement of 2002-2008 Oxygen Generators
Year of manufacture Compliance Time
(after the effective date of this AD)
2002 Within 12 months
2003 Within 16 months
2004 Within 20 months
2005 Within 24 months
2006 Within 28 months
2007 Within 32 months
2008 Within 36 months
(4) From the effective date of this AD, it is allowed to install on any aeroplane
an oxygen generator, provided it is determined, prior to installation, that the
oxygen generator is a serviceable unit (see Note).
Ref. Publications: Airbus AOT A35W008-14 dated 18 December 2014.
B/E Aerospace SB 117042-35-001 original issue dated 10 December 2014.
The use of later approved revisions of these documents is acceptable for
compliance with the requirements of this AD.
B/E Aerospace SIL D1019-01 Revision 1, dated 03 January 2000, provides
instructions for the activation and the disposal of a removed generator.
Remarks: 1. If requested and appropriately substantiated, EASA can approve
Alternative Methods of Compliance for this AD.
2. This AD was posted on 22 May 2015 as PAD 15-063 for consultation until
19 June 2015. No comments were received during the consultation period
3. Enquiries regarding this AD should be referred to the Safety Information
Section, Certification Directorate, EASA. E-mail: ADs@easa.europa.eu.
4. For any question concerning the technical content of the requirements in
this AD, please contact: AIRBUS – EIAW (Airworthiness Office),
E-mail: continued.airworthiness-wb.external@airbus.com.
TE.CAP.00110-004 © European Aviation Safety Agency. All rights reserved. 3/4
Proprietary document. Copies are not controlled. Confirm revision status through the EASA-Internet/Intranet.
EASA AD No.: 2015-0118
Appendix 1 – Passenger Oxygen Generator Date of Manufacture
Figure 1 – Location of date (MM-YY)
Figure 2 – MFG.DATE (05-02 = May 2002) example
TE.CAP.00110-004 © European Aviation Safety Agency. All rights reserved. 4/4
Proprietary document. Copies are not controlled. Confirm revision status through the EASA-Internet/Intranet.
