[Federal Register Volume 81, Number 201 (Tuesday, October 18, 2016)]
[Rules and Regulations]
[Pages 71591-71593]
From the Federal Register Online via the Government Publishing Office [www.gpo.gov]
[FR Doc No: 2016-24738]

––––––––––––––––––––––––––––––––––

DEPARTMENT OF TRANSPORTATION

Federal Aviation Administration

14 CFR Part 39

[Docket No. FAA-2016-6640; Directorate Identifier 2015-SW-084-AD; Amendment 39-18683;
AD 2016-21-02]

RIN 2120-AA64

Airworthiness Directives; Sikorsky Aircraft Corporation Helicopters

AGENCY: Federal Aviation Administration (FAA), DOT.

ACTION: Final rule.

––––––––––––––––––––––––––––––––––

SUMMARY: We are adopting a new airworthiness directive (AD) for Sikorsky Aircraft Corporation
(Sikorsky) Model S-92A helicopters. This AD requires altering the fire bottle inertia switch wiring
and performing a cartridge functional test of the fire extinguishing system. This AD was prompted by
the inadvertent tripping of inertia-switches that has led to unintentional discharging of the fire bottles,
leaving the helicopter's auxiliary power unit and engines without fire protection. The actions are
intended to prevent unintentional and undetected fire bottle discharges and subsequent unavailability
of fire suppression in case of a fire.

DATES: This AD is effective November 22, 2016.
The Director of the Federal Register approved the incorporation by reference of a certain
document listed in this AD as of November 22, 2016.

ADDRESSES: For service information identified in this final rule, contact Sikorsky Aircraft
Corporation, Customer Service Engineering, 124 Quarry Road, Trumbull, CT 06611; telephone 1-
800-Winged-S or 203-416-4299; email wcs_cust_service_eng.gr-sik@lmco.com. You may review a
copy of the referenced service information at the FAA, Office of the Regional Counsel, Southwest
Region, 10101 Hillwood Pkwy., Room 6N-321, Fort Worth, TX 76177. It is also available on the
Internet at http://www.regulations.gov by searching for and locating Docket No. FAA-2016-6640.

Examining the AD Docket

You may examine the AD docket on the Internet at http://www.regulations.gov by searching for
and locating Docket No. FAA-2016-6640; or in person at the Docket Operations Office between 9
a.m. and 5 p.m., Monday through Friday, except Federal holidays. The AD docket contains this AD,
any incorporated-by-reference service information, the economic evaluation, any comments received,

and other information. The street address for the Docket Operations Office (phone: 800-647-5527) is
U.S. Department of Transportation, Docket Operations Office, M-30, West Building Ground Floor,
Room W12-140, 1200 New Jersey Avenue SE., Washington, DC 20590.

FOR FURTHER INFORMATION CONTACT: Kris Greer, Aviation Safety Engineer, Boston
Aircraft Certification Office, Engine & Propeller Directorate, 1200 District Avenue, Burlington,
Massachusetts 01803; telephone (781) 238-7799; email kristopher.greer@faa.gov.

SUPPLEMENTARY INFORMATION:

Discussion

On May 13, 2016, at 81 FR 29817, the Federal Register published our notice of proposed
rulemaking (NPRM), which proposed to amend 14 CFR part 39 by adding an AD that would apply to
certain serial-numbered Sikorsky Model S-92A helicopters. Sikorsky has informed us that the
inadvertent tripping of inertia switches has caused several engine and auxiliary power unit fire bottle
discharges during taxi, flight, and landing operations. Because these discharges are undetected, the
fire bottles remain unavailable in the event of a fire.
The NPRM proposed to require altering the fire bottle inertia switch wiring to disable the
automatic feature of the fire extinguishing system and performing a cartridge functional test. The
proposed requirements were intended to prevent an unintentional and undetected fire bottle discharge
and subsequent unavailability of fire suppression in the event of a fire.
Since the NPRM was issued, the email address for Sikorsky has changed. We have revised this
email address throughout this final rule.

Comments

We gave the public the opportunity to participate in developing this AD, but we did not receive
any comments on the NPRM.

FAA's Determination

We have reviewed the relevant information and determined that an unsafe condition exists and is
likely to exist or develop on other products of the same type design and that air safety and the public
interest require adopting the AD requirements as proposed.

Related Service Information Under 1 CFR Part 51

We reviewed Sikorsky Alert Service Bulletin 92-26-005A, Revision A, dated June 27, 2014
(ASB 92-26-005A). ASB 92-26-005A specifies performing a one-time alteration of the fire bottle
inertia switch wiring to disable the automatic actuation feature of the fire extinguishing system. ASB
92-26-005A includes figures that depict the wiring and electrical connector pin changes.
This service information is reasonably available because the interested parties have access to it
through their normal course of business or by the means identified in the ADDRESSES section.

Other Related Service Information

We also reviewed Sikorsky Alert Service Bulletin 92-26-005, Basic Issue, dated June 18, 2014
(ASB 92-26-005). ASB 92-26-005 contains the same procedures as ASB 92-26-005A. However,
ASB 92-26-005A contains an additional figure.

Differences Between This AD and the Service Information

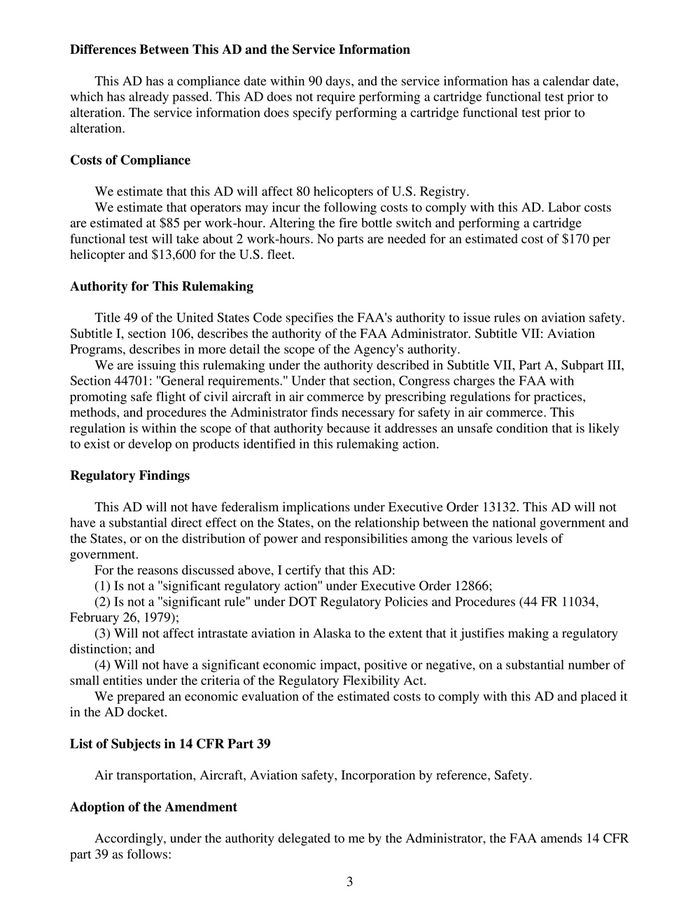

This AD has a compliance date within 90 days, and the service information has a calendar date,
which has already passed. This AD does not require performing a cartridge functional test prior to
alteration. The service information does specify performing a cartridge functional test prior to
alteration.

Costs of Compliance

We estimate that this AD will affect 80 helicopters of U.S. Registry.
We estimate that operators may incur the following costs to comply with this AD. Labor costs
are estimated at $85 per work-hour. Altering the fire bottle switch and performing a cartridge
functional test will take about 2 work-hours. No parts are needed for an estimated cost of $170 per
helicopter and $13,600 for the U.S. fleet.

Authority for This Rulemaking

Title 49 of the United States Code specifies the FAA's authority to issue rules on aviation safety.
Subtitle I, section 106, describes the authority of the FAA Administrator. Subtitle VII: Aviation
Programs, describes in more detail the scope of the Agency's authority.
We are issuing this rulemaking under the authority described in Subtitle VII, Part A, Subpart III,
Section 44701: ''General requirements.'' Under that section, Congress charges the FAA with
promoting safe flight of civil aircraft in air commerce by prescribing regulations for practices,
methods, and procedures the Administrator finds necessary for safety in air commerce. This
regulation is within the scope of that authority because it addresses an unsafe condition that is likely
to exist or develop on products identified in this rulemaking action.

Regulatory Findings

This AD will not have federalism implications under Executive Order 13132. This AD will not
have a substantial direct effect on the States, on the relationship between the national government and
the States, or on the distribution of power and responsibilities among the various levels of
government.
For the reasons discussed above, I certify that this AD:
(1) Is not a ''significant regulatory action'' under Executive Order 12866;
(2) Is not a ''significant rule'' under DOT Regulatory Policies and Procedures (44 FR 11034,
February 26, 1979);
(3) Will not affect intrastate aviation in Alaska to the extent that it justifies making a regulatory
distinction; and
(4) Will not have a significant economic impact, positive or negative, on a substantial number of
small entities under the criteria of the Regulatory Flexibility Act.
We prepared an economic evaluation of the estimated costs to comply with this AD and placed it
in the AD docket.

List of Subjects in 14 CFR Part 39

Air transportation, Aircraft, Aviation safety, Incorporation by reference, Safety.

Adoption of the Amendment

Accordingly, under the authority delegated to me by the Administrator, the FAA amends 14 CFR
part 39 as follows:

PART 39–AIRWORTHINESS DIRECTIVES

1. The authority citation for part 39 continues to read as follows:

    Authority: 49 U.S.C. 106(g), 40113, 44701.

§ 39.13 [Amended]

2. The FAA amends § 39.13 by adding the following new airworthiness directive (AD):




                                                    4

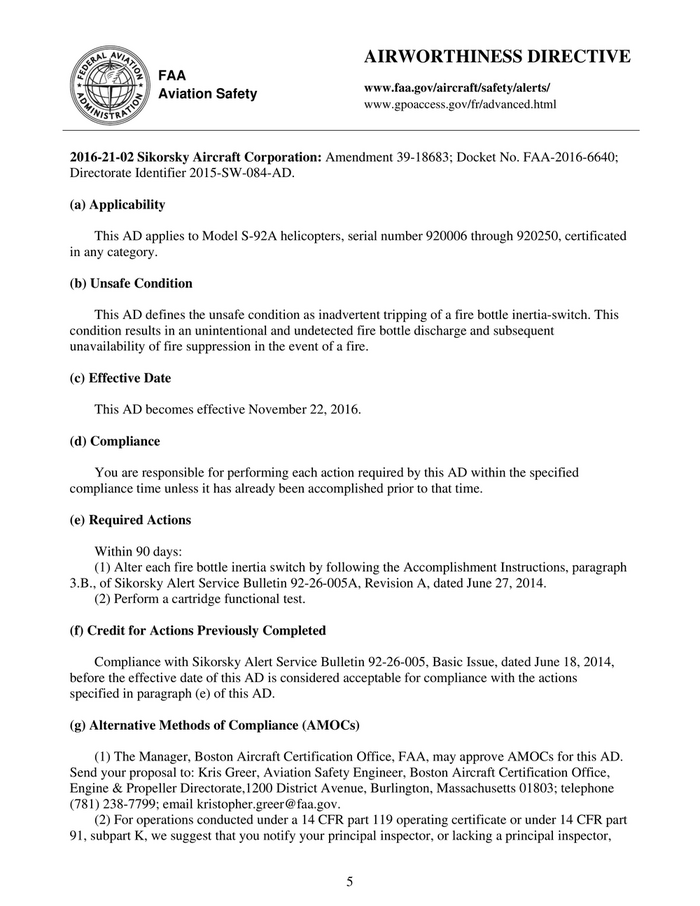

AIRWORTHINESS DIRECTIVE
FAA
www.faa.gov/aircraft/safety/alerts/
Aviation Safety
www.gpoaccess.gov/fr/advanced.html

2016-21-02 Sikorsky Aircraft Corporation: Amendment 39-18683; Docket No. FAA-2016-6640;
Directorate Identifier 2015-SW-084-AD.

(a) Applicability

This AD applies to Model S-92A helicopters, serial number 920006 through 920250, certificated
in any category.

(b) Unsafe Condition

This AD defines the unsafe condition as inadvertent tripping of a fire bottle inertia-switch. This
condition results in an unintentional and undetected fire bottle discharge and subsequent
unavailability of fire suppression in the event of a fire.

This AD becomes effective November 22, 2016.

(d) Compliance

You are responsible for performing each action required by this AD within the specified
compliance time unless it has already been accomplished prior to that time.

(e) Required Actions

Within 90 days:
(1) Alter each fire bottle inertia switch by following the Accomplishment Instructions, paragraph
3.B., of Sikorsky Alert Service Bulletin 92-26-005A, Revision A, dated June 27, 2014.
(2) Perform a cartridge functional test.

(f) Credit for Actions Previously Completed

Compliance with Sikorsky Alert Service Bulletin 92-26-005, Basic Issue, dated June 18, 2014,
before the effective date of this AD is considered acceptable for compliance with the actions
specified in paragraph (e) of this AD.

(g) Alternative Methods of Compliance (AMOCs)

(1) The Manager, Boston Aircraft Certification Office, FAA, may approve AMOCs for this AD.
Send your proposal to: Kris Greer, Aviation Safety Engineer, Boston Aircraft Certification Office,
Engine & Propeller Directorate,1200 District Avenue, Burlington, Massachusetts 01803; telephone
(781) 238-7799; email kristopher.greer@faa.gov.
(2) For operations conducted under a 14 CFR part 119 operating certificate or under 14 CFR part
91, subpart K, we suggest that you notify your principal inspector, or lacking a principal inspector,

the manager of the local flight standards district office or certificate holding district office before
operating any aircraft complying with this AD through an AMOC.

(h) Additional Information

Sikorsky Alert Service Bulletin 92-26-005, Basic Issue, dated June 18, 2014, which is not
incorporated by reference, contains additional information about the subject of this final rule. For
service information identified in this final rule, contact Sikorsky Aircraft Corporation, Customer
Service Engineering, 124 Quarry Road, Trumbull, CT 06611; telephone 1-800-Winged-S or 203-416-
4299; email wcs_cust_service_eng.gr-sik@lmco.com. You may review a copy of this service
information at the FAA, Office of the Regional Counsel, Southwest Region, 10101 Hillwood Pkwy.,
Room 6N-321, Fort Worth, TX 76177.

(i) Subject

Joint Aircraft Service Component (JASC) Code: 2621 Fire Bottle, Fixed.

(j) Material Incorporated by Reference

(1) The Director of the Federal Register approved the incorporation by reference of the service
information listed in this paragraph under 5 U.S.C. 552(a) and 1 CFR part 51.
(2) You must use this service information as applicable to do the actions required by this AD,
unless the AD specifies otherwise.
(i) Sikorsky Alert Service Bulletin 92-26-005A, Revision A, dated June 27, 2014.
(ii) Reserved.
(3) For Sikorsky service information identified in this final rule, contact Sikorsky Aircraft
Corporation, Customer Service Engineering, 124 Quarry Road, Trumbull, CT 06611; telephone 1-
800-Winged-S or 203-416-4299; email wcs_cust_service_eng.gr-sik@lmco.com.
(4) You may view this service information at FAA, Office of the Regional Counsel, Southwest
Region, 10101 Hillwood Pkwy., Room 6N-321, Fort Worth, TX 76177. For information on the
availability of this material at the FAA, call (817) 222-5110.
(5) You may view this service information that is incorporated by reference at the National
Archives and Records Administration (NARA). For information on the availability of this material at
NARA, call (202) 741-6030, or go to: http://www.archives.gov/federal-register/cfr/ibr-locations.html.

Issued in Fort Worth, Texas, on October 3, 2016.
Lance T. Gant,
Manager, Rotorcraft Directorate,
Aircraft Certification Service.

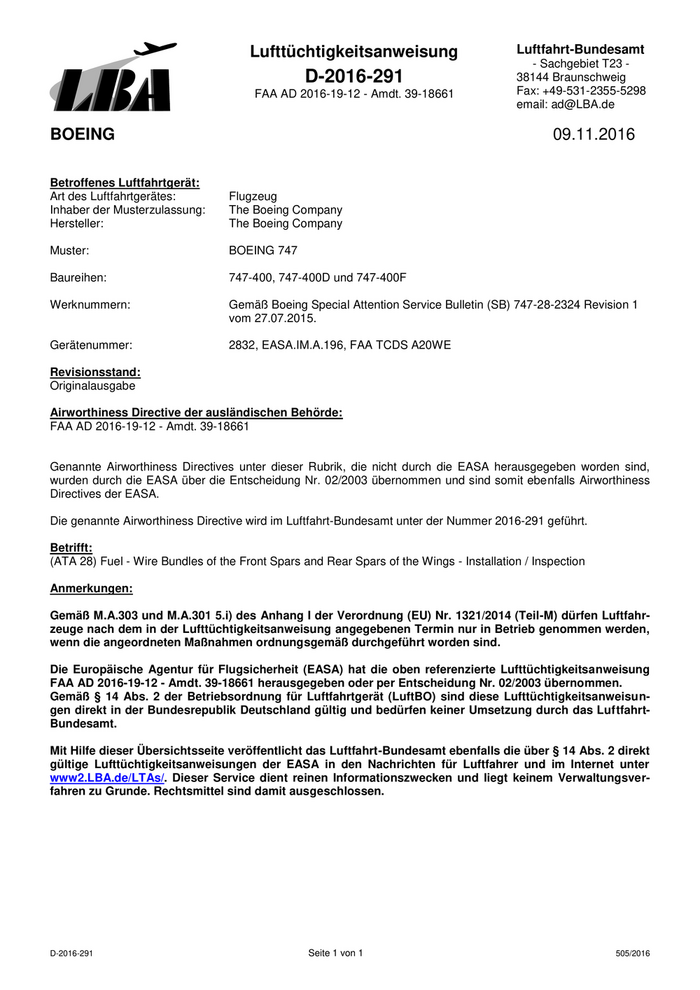

Lufttüchtigkeitsanweisung Luftfahrt-Bundesamt
- Sachgebiet T23 -
D-2016-291 38144 Braunschweig
FAA AD 2016-19-12 - Amdt. 39-18661 Fax: +49-531-2355-5298
email: ad@LBA.de

BOEING 09.11.2016

Betroffenes Luftfahrtgerät:
Art des Luftfahrtgerätes: Flugzeug
Inhaber der Musterzulassung: The Boeing Company
Hersteller: The Boeing Company

Muster: BOEING 747

Baureihen: 747-400, 747-400D und 747-400F

Werknummern: Gemäß Boeing Special Attention Service Bulletin (SB) 747-28-2324 Revision 1
vom 27.07.2015.

Gerätenummer: 2832, EASA.IM.A.196, FAA TCDS A20WE

Revisionsstand:
Originalausgabe

Airworthiness Directive der ausländischen Behörde:
FAA AD 2016-19-12 - Amdt. 39-18661

Genannte Airworthiness Directives unter dieser Rubrik, die nicht durch die EASA herausgegeben worden sind,
wurden durch die EASA über die Entscheidung Nr. 02/2003 übernommen und sind somit ebenfalls Airworthiness
Directives der EASA.

Die genannte Airworthiness Directive wird im Luftfahrt-Bundesamt unter der Nummer 2016-291 geführt.

Betrifft:
(ATA 28) Fuel - Wire Bundles of the Front Spars and Rear Spars of the Wings - Installation / Inspection

Anmerkungen:

Gemäß M.A.303 und M.A.301 5.i) des Anhang I der Verordnung (EU) Nr. 1321/2014 (Teil-M) dürfen Luftfahr-
zeuge nach dem in der Lufttüchtigkeitsanweisung angegebenen Termin nur in Betrieb genommen werden,
wenn die angeordneten Maßnahmen ordnungsgemäß durchgeführt worden sind.

Die Europäische Agentur für Flugsicherheit (EASA) hat die oben referenzierte Lufttüchtigkeitsanweisung
FAA AD 2016-19-12 - Amdt. 39-18661 herausgegeben oder per Entscheidung Nr. 02/2003 übernommen.
Gemäß § 14 Abs. 2 der Betriebsordnung für Luftfahrtgerät (LuftBO) sind diese Lufttüchtigkeitsanweisun-
gen direkt in der Bundesrepublik Deutschland gültig und bedürfen keiner Umsetzung durch das Luftfahrt-
Bundesamt.

Mit Hilfe dieser Übersichtsseite veröffentlicht das Luftfahrt-Bundesamt ebenfalls die über § 14 Abs. 2 direkt
gültige Lufttüchtigkeitsanweisungen der EASA in den Nachrichten für Luftfahrer und im Internet unter
www2.LBA.de/LTAs/. Dieser Service dient reinen Informationszwecken und liegt keinem Verwaltungsver-
fahren zu Grunde. Rechtsmittel sind damit ausgeschlossen.

D-2016-291 Seite 1 von 1 505/2016

[Federal Register Volume 81, Number 195 (Friday, October 7, 2016)]
[Rules and Regulations]
[Pages 69666-69668]
From the Federal Register Online via the Government Publishing Office [www.gpo.gov]
[FR Doc No: 2016-22707]

––––––––––––––––––––––––––––––––––

DEPARTMENT OF TRANSPORTATION

Federal Aviation Administration

14 CFR Part 39

[Docket No. FAA-2016-3986; Directorate Identifier 2015-NM-147-AD; Amendment 39-18661;
AD 2016-19-12]

RIN 2120-AA64

Airworthiness Directives; The Boeing Company Airplanes

AGENCY: Federal Aviation Administration (FAA), DOT.

ACTION: Final rule.

––––––––––––––––––––––––––––––––––

SUMMARY: We are adopting a new airworthiness directive (AD) for certain The Boeing Company
Model 747-400, 747-400D, and 747-400F series airplanes. This AD was prompted by a
determination that a certain fastener type in the fuel tank walls has insufficient bond to the structure,
and an electrical wiring short could cause arcing to occur at the ends of fasteners in the fuel tanks.
This AD requires the installation of new clamps and polytetrafluoroethylene (TFE) sleeves on the
wire bundles of the front spars and rear spars of the wings. This AD also requires inspecting the
existing TFE sleeves under the wire bundle clamps for correct installation, and replacement if
necessary. We are issuing this AD to prevent potential ignition sources in the fuel tank in the event of
a lightning strike or high-powered short circuit, and consequent fire or explosion.

DATES: This AD is effective November 14, 2016.
The Director of the Federal Register approved the incorporation by reference of a certain
publication listed in this AD as of November 14, 2016.

ADDRESSES: For service information identified in this final rule, contact Boeing Commercial
Airplanes, Attention: Data & Services Management, P.O. Box 3707, MC 2H-65, Seattle, WA 98124-
2207; telephone: 206-544-5000, extension 1; fax: 206-766-5680; Internet:
https://www.myboeingfleet.com. You may view this referenced service information at the FAA,
Transport Airplane Directorate, 1601 Lind Avenue SW., Renton, WA. For information on the
availability of this material at the FAA, call 425-227-1221. It is also available on the Internet at
http://www.regulations.gov by searching for and locating Docket No. FAA-2016-3986.

Examining the AD Docket

     You may examine the AD docket on the Internet at http://www.regulations.gov by searching for
and locating Docket No. FAA-2016-3986; or in person at the Docket Management Facility between 9
a.m. and 5 p.m., Monday through Friday, except Federal holidays. The AD docket contains this AD,
the regulatory evaluation, any comments received, and other information. The address for the Docket
Office (phone: 800-647-5527) is Docket Management Facility, U.S. Department of Transportation,
Docket Operations, M-30, West Building Ground Floor, Room W12-140, 1200 New Jersey Avenue
SE., Washington, DC 20590.

FOR FURTHER INFORMATION CONTACT: Tung Tran, Aerospace Engineer, Propulsion
Branch, ANM-140S, FAA, Seattle Aircraft Certification Office (ACO), 1601 Lind Avenue SW.,
Renton, WA 98057-3356; phone: 425-917-6505; fax: 425-917-6590; email: Tung.Tran@faa.gov.

SUPPLEMENTARY INFORMATION:

Discussion

     We issued a notice of proposed rulemaking (NPRM) to amend 14 CFR part 39 by adding an AD
that would apply to certain The Boeing Company Model 747-400, 747-400D, and 747-400F series
airplanes. The NPRM published in the Federal Register on March 1, 2016 (81 FR 10537) (''the
NPRM''). The NPRM was prompted by a determination that a certain fastener type in the fuel tank
walls has insufficient bond to the structure, and an electrical wiring short could cause arcing to occur
at the ends of fasteners in the fuel tanks. The NPRM proposed to require the installation of new
clamps and TFE sleeves on the wire bundles of the front spars and rear spars of the wings. The
NPRM also proposed to require inspecting the existing TFE sleeves under the wire bundle clamps for
correct installation, and replacement if necessary. We are issuing this AD to prevent potential ignition
sources in the fuel tank in the event of a lightning strike or high-powered short circuit, and
consequent fire or explosion.

Comments

     We gave the public the opportunity to participate in developing this AD. The following presents
the comments received on the NPRM and the FAA's response to each comment.

Support for the NPRM

    Boeing supported the content of the NPRM. United Airlines had no objection to the NPRM.

Conclusion

    We reviewed the relevant data, considered the comments received, and determined that air safety
and the public interest require adopting this AD as proposed, except for minor editorial changes. We
have determined that these minor changes:
   • Are consistent with the intent that was proposed in the NPRM for correcting the unsafe
       condition; and
   • Do not add any additional burden upon the public than was already proposed in the NPRM.

Related Service Information Under 1 CFR Part 51

    We reviewed Boeing Special Attention Service Bulletin 747-28-2324, Revision 1, dated July 27,
2015. The service information describes procedures for installing new clamps and TFE sleeves on the
                                                   2

wire bundles of the front spars and rear spars of the wings. The service information also describes
procedures for inspecting TFE sleeves under the wire bundle clamps that were installed using the
procedures specified in Boeing Special Attention Service Bulletin 747-28-2324, dated November 3,
2014, for correct installation, and replacing them if necessary. This service information is reasonably
available because the interested parties have access to it through their normal course of business or by
the means identified in the ADDRESSES section.

Costs of Compliance

We estimate that this AD affects 135 airplanes of U.S. registry.
We estimate the following costs to comply with this AD:

Estimated Costs
Action Labor cost Parts Cost per Cost on U.S.
cost product operators
Installation of wire Up to 7 work-hours × $85 $138 Up to $733 Up to $98,955.
bundle clamps per hour = $595
Inspection Up to 5 work-hours × $85 0 Up to $425 Up to $57,375.
per hour = $425

We have received no definitive data that enables us to provide cost estimates for the on-condition
actions specified in this AD.

Authority for This Rulemaking

Regulatory Findings

This AD will not have federalism implications under Executive Order 13132. This AD will not
have a substantial direct effect on the States, on the relationship between the national government and
the States, or on the distribution of power and responsibilities among the various levels of
government.
For the reasons discussed above, I certify that this AD:
(1) Is not a ''significant regulatory action'' under Executive Order 12866,
(2) Is not a ''significant rule'' under DOT Regulatory Policies and Procedures (44 FR 11034,
February 26, 1979),
(3) Will not affect intrastate aviation in Alaska, and
(4) Will not have a significant economic impact, positive or negative, on a substantial number of
small entities under the criteria of the Regulatory Flexibility Act.

Zur nächsten Seite
