Nachrichten für Luftfahrer 2019 Teil 2 (weicht ggf. von Druckversion ab)

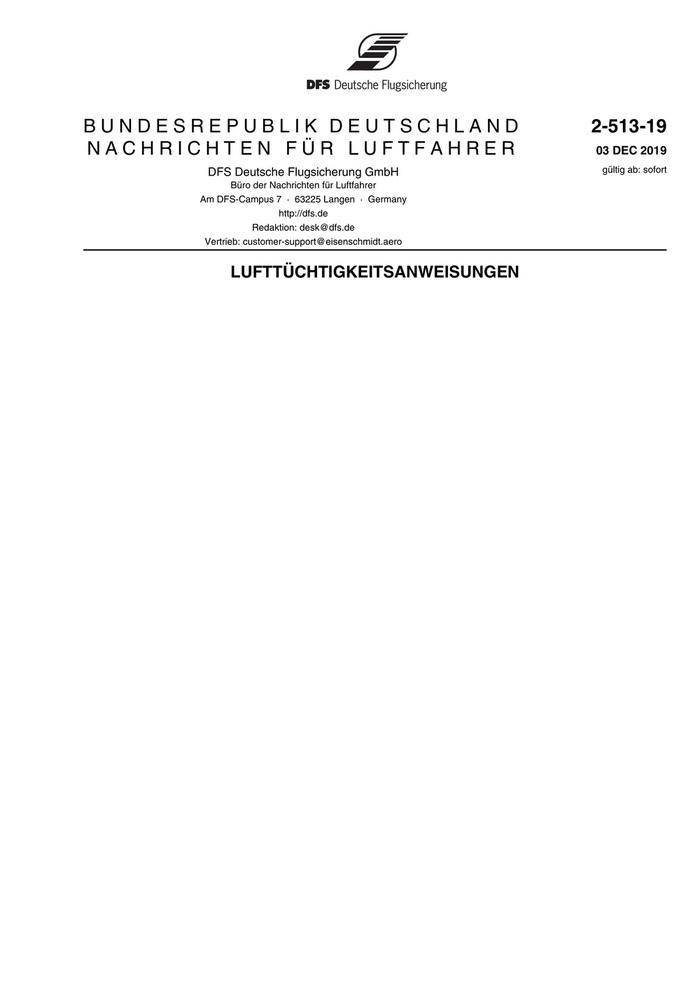

BUNDESREPUBLIK DEUTSCHLAND 2-513-19
NACHRICHTEN FÜR LUFTFAHRER 03 DEC 2019
DFS Deutsche Flugsicherung GmbH gültig ab: sofort
Büro der Nachrichten für Luftfahrer
Am DFS-Campus 7 · 63225 Langen · Germany
http://dfs.de
Redaktion: desk@dfs.de
Vertrieb: customer-support@eisenschmidt.aero
LUFTTÜCHTIGKEITSANWEISUNGEN
LUFTTÜCHTIGKEITSANWEISUNGEN
Gemäß § 14 Abs. 1 der Betriebsordnung für Luftfahrtgerät (LuftBO) werden nachstehende Lufttüchtig-
keitsanweisungen (LTA‘s) veröffentlicht.
LTA-Nr: Titel Geräte-Nummer(n)
Änderungen:
-keine-
Neuausgaben:
-keine-
Weiterhin sind nachstehend die Lufttüchtigkeitsanweisungen abgedruckt, die durch die Europäische Agentur für
Flugsicherheit (EASA) herausgegeben oder per Entscheidung Nr. 2019/018/ED übernommen worden sind.
NfL 2-86-15 ist hierzu zu beachten.
LTA-Nr: AD-Nr. Titel Geräte-Nummer(n)
Änderungen:
D-2017-259R1 EASA AD 2019-0285 AIRBUS HELICOPTERS EASA.R.150
D-2019-270R1 FAA AD 2019-21-51 General Electric Company EASA.IM.E.002 und
FAA TCDS E00049EN
D-2019-282R1 EASA AD 2019-0272R1 AIRBUS HELICOPTERS 3065 und EASA.R.508
D-2019-296R1 FAA AD 2019-23-10 Textron Aviation Inc. 534, 534a, 627, 627a
und FAA TCDS 3A15
Neuausgaben:
D-2019-295 TC AD CF-2019-43 Bombardier Inc. EASA.IM.A.080 und
TC TCDS A-234
D-2019-296 FAA AD 2019-21-08 Textron Aviation Inc. 534, 534a, 627, 627a
und FAA TCDS 3A15
D-2019-297 TC AD CF-2019-41 Bombardier Inc. 2854, EASA.IM.A.023
und TC TCDS A-131
D-2019-298 TC AD CF-2019-42 Bombardier Inc. 2854, EASA.IM.A.023
und TC TCDS A-131
D-2019-299 EASA Emergency AIRBUS DEFENCE AND 679 und EASA.A.554
AD 2019-0284-E SPACE GMBH
D-2019-300 ANAC BAD 2019-11-07 Embraer S.A. EASA.IM.A.001,
EASA.IM.A.071,
ANAC TCDS EA-
2003T05 und
ANAC TCDS EA-
2005T13
D-2019-301 EASA AD 2019-0278 ATR-GIE Avions de 2847 und EASA.A.084
Transport Regional
D-2019-302 EASA AD 2019-0279 AIRBUS S.A.S. 2846 und EASA.A.064
D-2019-303 EASA AD 2019-0282 Rolls-Royce Deutschland EASA.E.036
Ltd & Co KG

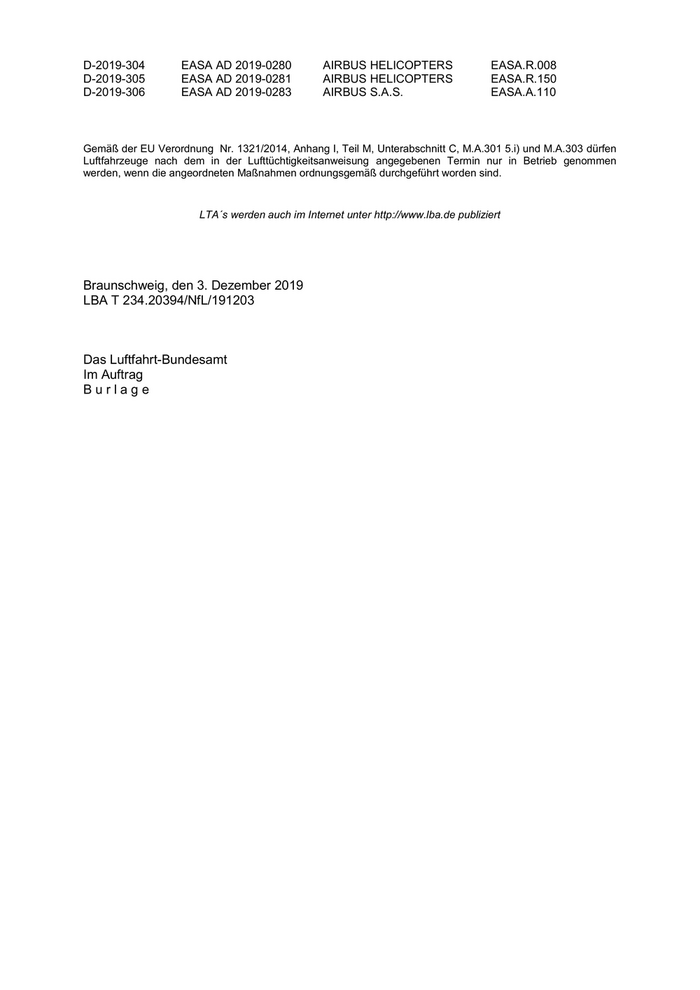

D-2019-304 EASA AD 2019-0280 AIRBUS HELICOPTERS EASA.R.008
D-2019-305 EASA AD 2019-0281 AIRBUS HELICOPTERS EASA.R.150
D-2019-306 EASA AD 2019-0283 AIRBUS S.A.S. EASA.A.110
Gemäß der EU Verordnung Nr. 1321/2014, Anhang I, Teil M, Unterabschnitt C, M.A.301 5.i) und M.A.303 dürfen
Luftfahrzeuge nach dem in der Lufttüchtigkeitsanweisung angegebenen Termin nur in Betrieb genommen
werden, wenn die angeordneten Maßnahmen ordnungsgemäß durchgeführt worden sind.
LTA´s werden auch im Internet unter http://www.lba.de publiziert
Braunschweig, den 3. Dezember 2019
LBA T 234.20394/NfL/191203
Das Luftfahrt-Bundesamt
Im Auftrag
Burlage

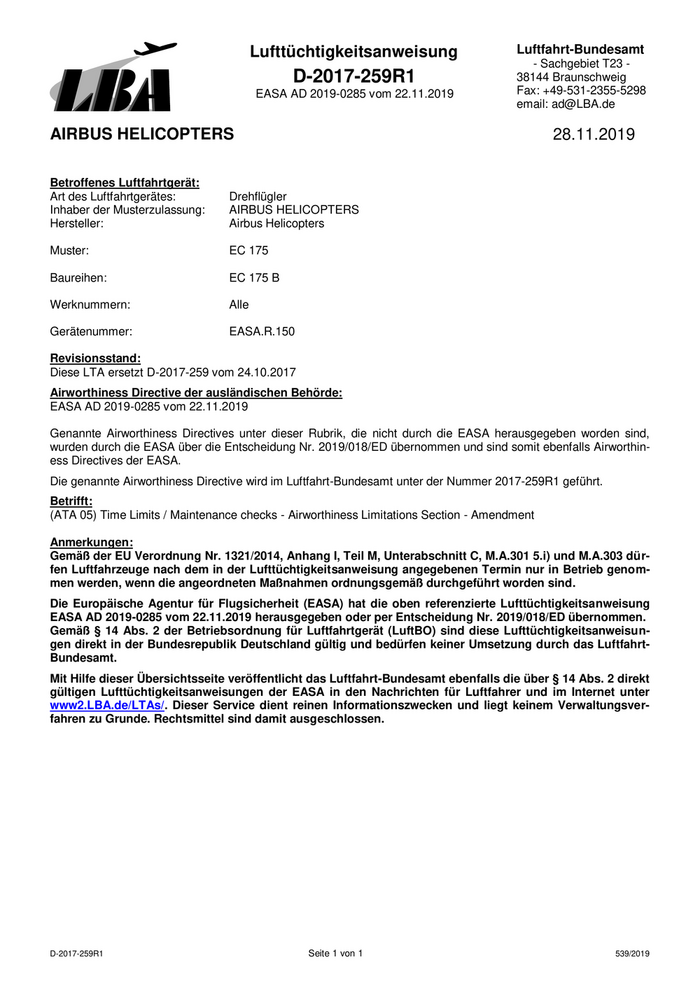

Lufttüchtigkeitsanweisung Luftfahrt-Bundesamt
- Sachgebiet T23 -
D-2017-259R1 38144 Braunschweig
EASA AD 2019-0285 vom 22.11.2019 Fax: +49-531-2355-5298
email: ad@LBA.de
AIRBUS HELICOPTERS 28.11.2019
Betroffenes Luftfahrtgerät:
Art des Luftfahrtgerätes: Drehflügler
Inhaber der Musterzulassung: AIRBUS HELICOPTERS
Hersteller: Airbus Helicopters
Muster: EC 175
Baureihen: EC 175 B
Werknummern: Alle
Gerätenummer: EASA.R.150
Revisionsstand:
Diese LTA ersetzt D-2017-259 vom 24.10.2017
Airworthiness Directive der ausländischen Behörde:
EASA AD 2019-0285 vom 22.11.2019
Genannte Airworthiness Directives unter dieser Rubrik, die nicht durch die EASA herausgegeben worden sind,
wurden durch die EASA über die Entscheidung Nr. 2019/018/ED übernommen und sind somit ebenfalls Airworthin-
ess Directives der EASA.
Die genannte Airworthiness Directive wird im Luftfahrt-Bundesamt unter der Nummer 2017-259R1 geführt.
Betrifft:
(ATA 05) Time Limits / Maintenance checks - Airworthiness Limitations Section - Amendment
Anmerkungen:
Gemäß der EU Verordnung Nr. 1321/2014, Anhang I, Teil M, Unterabschnitt C, M.A.301 5.i) und M.A.303 dür-
fen Luftfahrzeuge nach dem in der Lufttüchtigkeitsanweisung angegebenen Termin nur in Betrieb genom-
men werden, wenn die angeordneten Maßnahmen ordnungsgemäß durchgeführt worden sind.
Die Europäische Agentur für Flugsicherheit (EASA) hat die oben referenzierte Lufttüchtigkeitsanweisung
EASA AD 2019-0285 vom 22.11.2019 herausgegeben oder per Entscheidung Nr. 2019/018/ED übernommen.
Gemäß § 14 Abs. 2 der Betriebsordnung für Luftfahrtgerät (LuftBO) sind diese Lufttüchtigkeitsanweisun-
gen direkt in der Bundesrepublik Deutschland gültig und bedürfen keiner Umsetzung durch das Luftfahrt-
Bundesamt.
Mit Hilfe dieser Übersichtsseite veröffentlicht das Luftfahrt-Bundesamt ebenfalls die über § 14 Abs. 2 direkt
gültigen Lufttüchtigkeitsanweisungen der EASA in den Nachrichten für Luftfahrer und im Internet unter
www2.LBA.de/LTAs/. Dieser Service dient reinen Informationszwecken und liegt keinem Verwaltungsver-
fahren zu Grunde. Rechtsmittel sind damit ausgeschlossen.
D-2017-259R1 Seite 1 von 1 539/2019

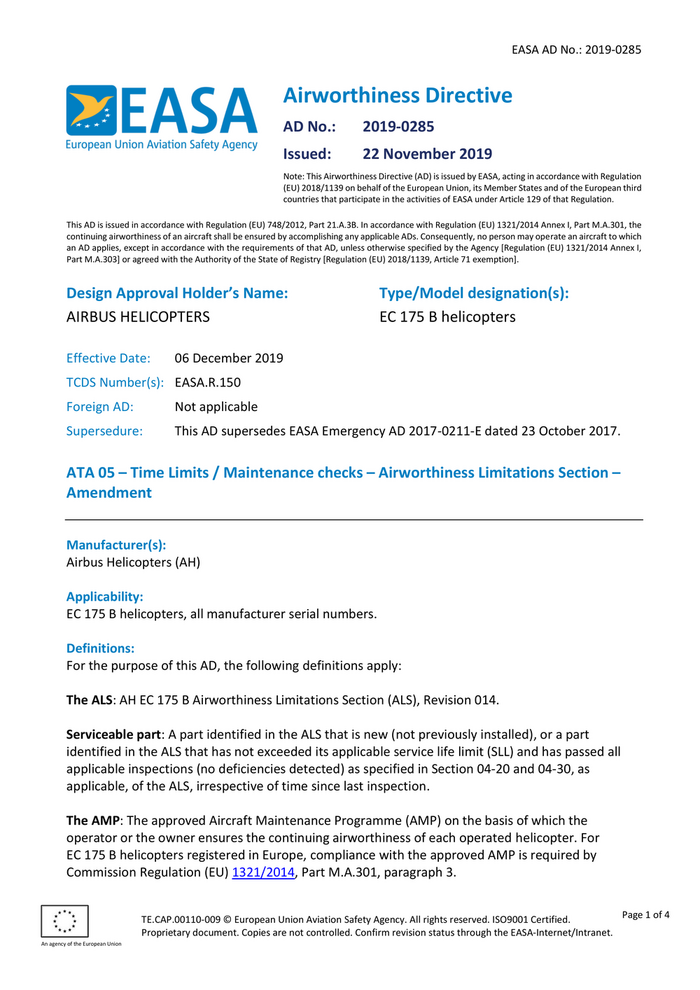

EASA AD No.: 2019-0285
Airworthiness Directive
AD No.: 2019-0285
Issued: 22 November 2019
Note: This Airworthiness Directive (AD) is issued by EASA, acting in accordance with Regulation
(EU) 2018/1139 on behalf of the European Union, its Member States and of the European third
countries that participate in the activities of EASA under Article 129 of that Regulation.
This AD is issued in accordance with Regulation (EU) 748/2012, Part 21.A.3B. In accordance with Regulation (EU) 1321/2014 Annex I, Part M.A.301, the
continuing airworthiness of an aircraft shall be ensured by accomplishing any applicable ADs. Consequently, no person may operate an aircraft to which
an AD applies, except in accordance with the requirements of that AD, unless otherwise specified by the Agency [Regulation (EU) 1321/2014 Annex I,
Part M.A.303] or agreed with the Authority of the State of Registry [Regulation (EU) 2018/1139, Article 71 exemption].
Design Approval Holder’s Name: Type/Model designation(s):
AIRBUS HELICOPTERS EC 175 B helicopters
Effective Date: 06 December 2019
TCDS Number(s): EASA.R.150
Foreign AD: Not applicable
Supersedure: This AD supersedes EASA Emergency AD 2017-0211-E dated 23 October 2017.
ATA 05 – Time Limits / Maintenance checks – Airworthiness Limitations Section –
Amendment
Manufacturer(s):
Airbus Helicopters (AH)
Applicability:
EC 175 B helicopters, all manufacturer serial numbers.
Definitions:
For the purpose of this AD, the following definitions apply:
The ALS: AH EC 175 B Airworthiness Limitations Section (ALS), Revision 014.
Serviceable part: A part identified in the ALS that is new (not previously installed), or a part
identified in the ALS that has not exceeded its applicable service life limit (SLL) and has passed all
applicable inspections (no deficiencies detected) as specified in Section 04-20 and 04-30, as
applicable, of the ALS, irrespective of time since last inspection.
The AMP: The approved Aircraft Maintenance Programme (AMP) on the basis of which the
operator or the owner ensures the continuing airworthiness of each operated helicopter. For
EC 175 B helicopters registered in Europe, compliance with the approved AMP is required by
Commission Regulation (EU) 1321/2014, Part M.A.301, paragraph 3.
TE.CAP.00110-009 © European Union Aviation Safety Agency. All rights reserved. ISO9001 Certified. Page 1 of 4
Proprietary document. Copies are not controlled. Confirm revision status through the EASA-Internet/Intranet.
An agency of the European Union
EASA AD No.: 2019-0285

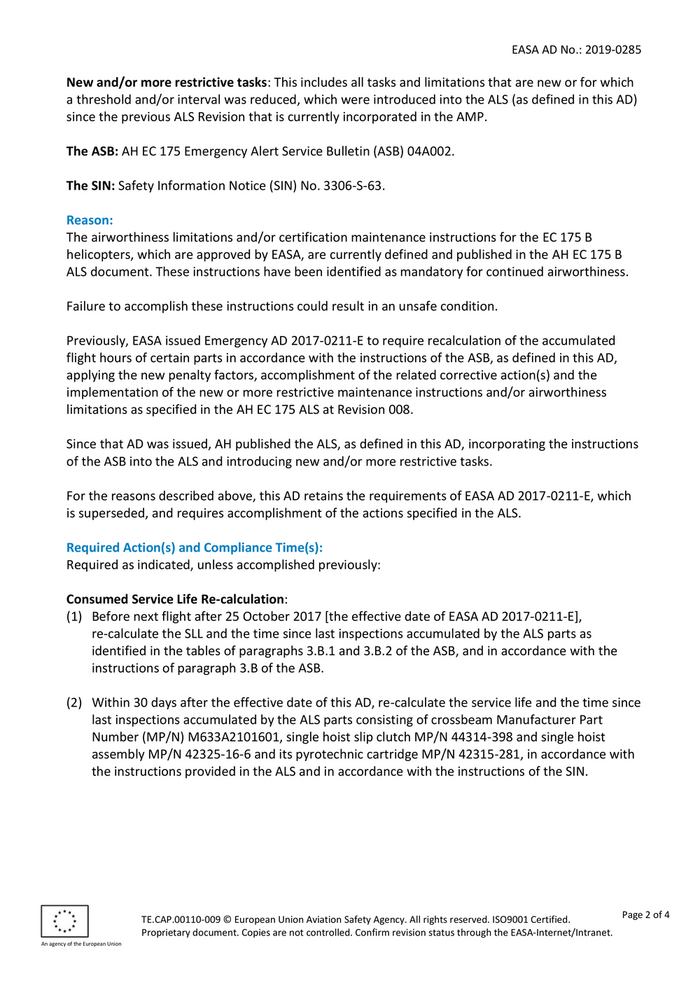

New and/or more restrictive tasks: This includes all tasks and limitations that are new or for which
a threshold and/or interval was reduced, which were introduced into the ALS (as defined in this AD)
since the previous ALS Revision that is currently incorporated in the AMP.
The ASB: AH EC 175 Emergency Alert Service Bulletin (ASB) 04A002.
The SIN: Safety Information Notice (SIN) No. 3306-S-63.
Reason:
The airworthiness limitations and/or certification maintenance instructions for the EC 175 B
helicopters, which are approved by EASA, are currently defined and published in the AH EC 175 B
ALS document. These instructions have been identified as mandatory for continued airworthiness.
Failure to accomplish these instructions could result in an unsafe condition.
Previously, EASA issued Emergency AD 2017-0211-E to require recalculation of the accumulated
flight hours of certain parts in accordance with the instructions of the ASB, as defined in this AD,
applying the new penalty factors, accomplishment of the related corrective action(s) and the
implementation of the new or more restrictive maintenance instructions and/or airworthiness
limitations as specified in the AH EC 175 ALS at Revision 008.
Since that AD was issued, AH published the ALS, as defined in this AD, incorporating the instructions
of the ASB into the ALS and introducing new and/or more restrictive tasks.
For the reasons described above, this AD retains the requirements of EASA AD 2017-0211-E, which
is superseded, and requires accomplishment of the actions specified in the ALS.
Required Action(s) and Compliance Time(s):
Required as indicated, unless accomplished previously:
Consumed Service Life Re-calculation:
(1) Before next flight after 25 October 2017 [the effective date of EASA AD 2017-0211-E],
re-calculate the SLL and the time since last inspections accumulated by the ALS parts as
identified in the tables of paragraphs 3.B.1 and 3.B.2 of the ASB, and in accordance with the
instructions of paragraph 3.B of the ASB.
(2) Within 30 days after the effective date of this AD, re-calculate the service life and the time since
last inspections accumulated by the ALS parts consisting of crossbeam Manufacturer Part
Number (MP/N) M633A2101601, single hoist slip clutch MP/N 44314-398 and single hoist
assembly MP/N 42325-16-6 and its pyrotechnic cartridge MP/N 42315-281, in accordance with
the instructions provided in the ALS and in accordance with the instructions of the SIN.
TE.CAP.00110-009 © European Union Aviation Safety Agency. All rights reserved. ISO9001 Certified. Page 2 of 4
Proprietary document. Copies are not controlled. Confirm revision status through the EASA-Internet/Intranet.
An agency of the European Union
EASA AD No.: 2019-0285

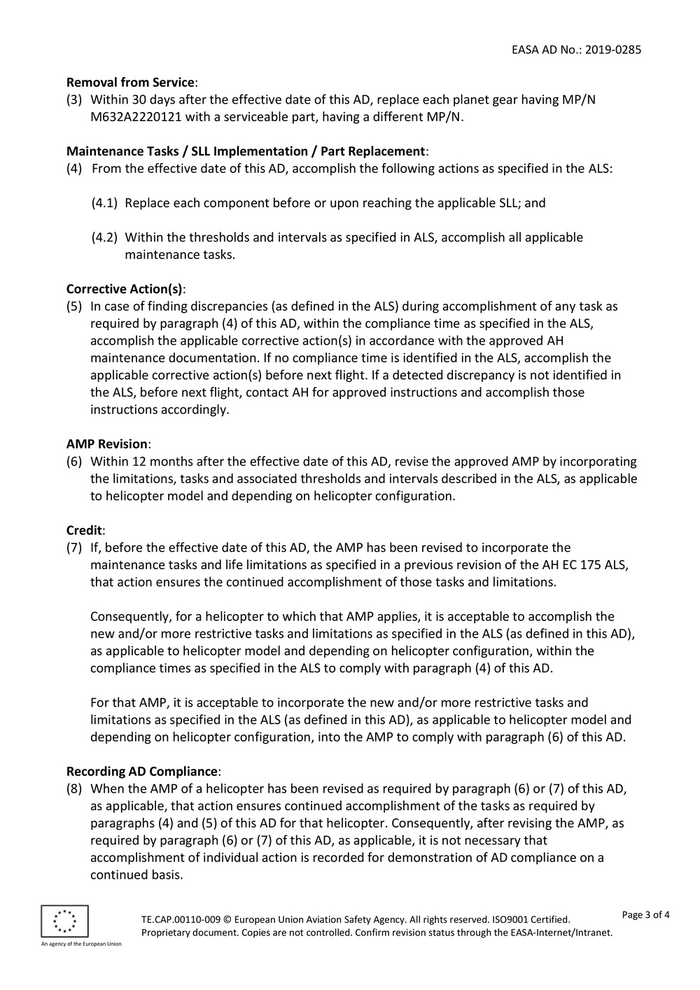

Removal from Service:
(3) Within 30 days after the effective date of this AD, replace each planet gear having MP/N
M632A2220121 with a serviceable part, having a different MP/N.
Maintenance Tasks / SLL Implementation / Part Replacement:
(4) From the effective date of this AD, accomplish the following actions as specified in the ALS:
(4.1) Replace each component before or upon reaching the applicable SLL; and
(4.2) Within the thresholds and intervals as specified in ALS, accomplish all applicable
maintenance tasks.
Corrective Action(s):
(5) In case of finding discrepancies (as defined in the ALS) during accomplishment of any task as
required by paragraph (4) of this AD, within the compliance time as specified in the ALS,
accomplish the applicable corrective action(s) in accordance with the approved AH
maintenance documentation. If no compliance time is identified in the ALS, accomplish the
applicable corrective action(s) before next flight. If a detected discrepancy is not identified in
the ALS, before next flight, contact AH for approved instructions and accomplish those
instructions accordingly.
AMP Revision:
(6) Within 12 months after the effective date of this AD, revise the approved AMP by incorporating
the limitations, tasks and associated thresholds and intervals described in the ALS, as applicable
to helicopter model and depending on helicopter configuration.
Credit:
(7) If, before the effective date of this AD, the AMP has been revised to incorporate the
maintenance tasks and life limitations as specified in a previous revision of the AH EC 175 ALS,
that action ensures the continued accomplishment of those tasks and limitations.
Consequently, for a helicopter to which that AMP applies, it is acceptable to accomplish the
new and/or more restrictive tasks and limitations as specified in the ALS (as defined in this AD),
as applicable to helicopter model and depending on helicopter configuration, within the
compliance times as specified in the ALS to comply with paragraph (4) of this AD.
For that AMP, it is acceptable to incorporate the new and/or more restrictive tasks and
limitations as specified in the ALS (as defined in this AD), as applicable to helicopter model and
depending on helicopter configuration, into the AMP to comply with paragraph (6) of this AD.
Recording AD Compliance:
(8) When the AMP of a helicopter has been revised as required by paragraph (6) or (7) of this AD,
as applicable, that action ensures continued accomplishment of the tasks as required by
paragraphs (4) and (5) of this AD for that helicopter. Consequently, after revising the AMP, as
required by paragraph (6) or (7) of this AD, as applicable, it is not necessary that
accomplishment of individual action is recorded for demonstration of AD compliance on a
continued basis.
TE.CAP.00110-009 © European Union Aviation Safety Agency. All rights reserved. ISO9001 Certified. Page 3 of 4
Proprietary document. Copies are not controlled. Confirm revision status through the EASA-Internet/Intranet.
An agency of the European Union
EASA AD No.: 2019-0285

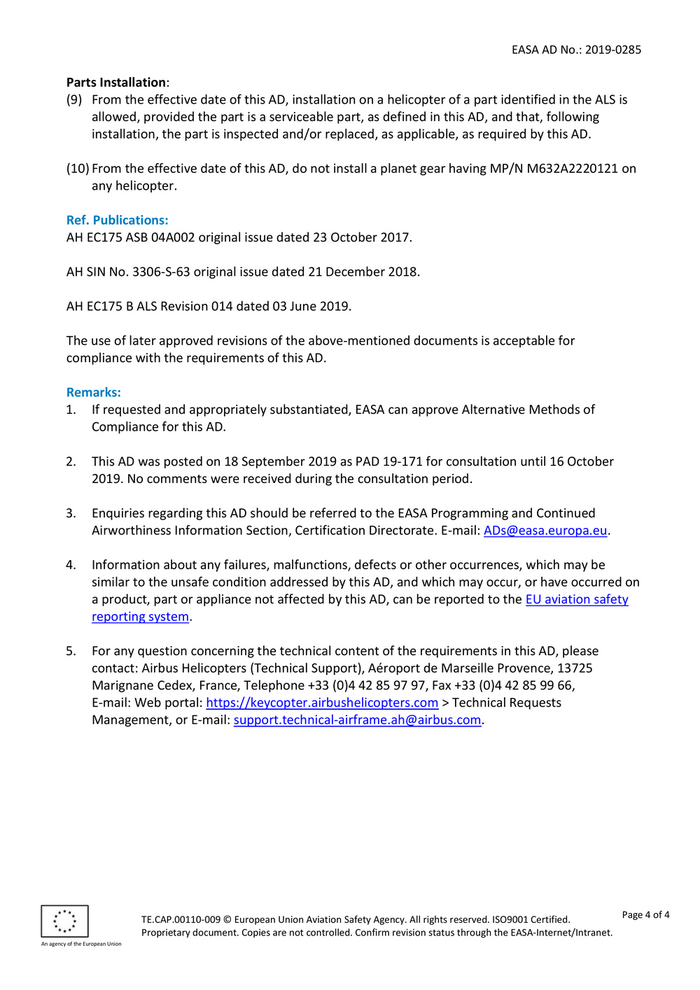

Parts Installation:
(9) From the effective date of this AD, installation on a helicopter of a part identified in the ALS is
allowed, provided the part is a serviceable part, as defined in this AD, and that, following
installation, the part is inspected and/or replaced, as applicable, as required by this AD.
(10) From the effective date of this AD, do not install a planet gear having MP/N M632A2220121 on
any helicopter.
Ref. Publications:
AH EC175 ASB 04A002 original issue dated 23 October 2017.
AH SIN No. 3306-S-63 original issue dated 21 December 2018.
AH EC175 B ALS Revision 014 dated 03 June 2019.
The use of later approved revisions of the above-mentioned documents is acceptable for
compliance with the requirements of this AD.
Remarks:
1. If requested and appropriately substantiated, EASA can approve Alternative Methods of
Compliance for this AD.
2. This AD was posted on 18 September 2019 as PAD 19-171 for consultation until 16 October
2019. No comments were received during the consultation period.
3. Enquiries regarding this AD should be referred to the EASA Programming and Continued
Airworthiness Information Section, Certification Directorate. E-mail: ADs@easa.europa.eu.
4. Information about any failures, malfunctions, defects or other occurrences, which may be
similar to the unsafe condition addressed by this AD, and which may occur, or have occurred on
a product, part or appliance not affected by this AD, can be reported to the EU aviation safety
reporting system.
5. For any question concerning the technical content of the requirements in this AD, please
contact: Airbus Helicopters (Technical Support), Aéroport de Marseille Provence, 13725
Marignane Cedex, France, Telephone +33 (0)4 42 85 97 97, Fax +33 (0)4 42 85 99 66,
E-mail: Web portal: https://keycopter.airbushelicopters.com > Technical Requests
Management, or E-mail: support.technical-airframe.ah@airbus.com.
TE.CAP.00110-009 © European Union Aviation Safety Agency. All rights reserved. ISO9001 Certified. Page 4 of 4
Proprietary document. Copies are not controlled. Confirm revision status through the EASA-Internet/Intranet.
An agency of the European Union

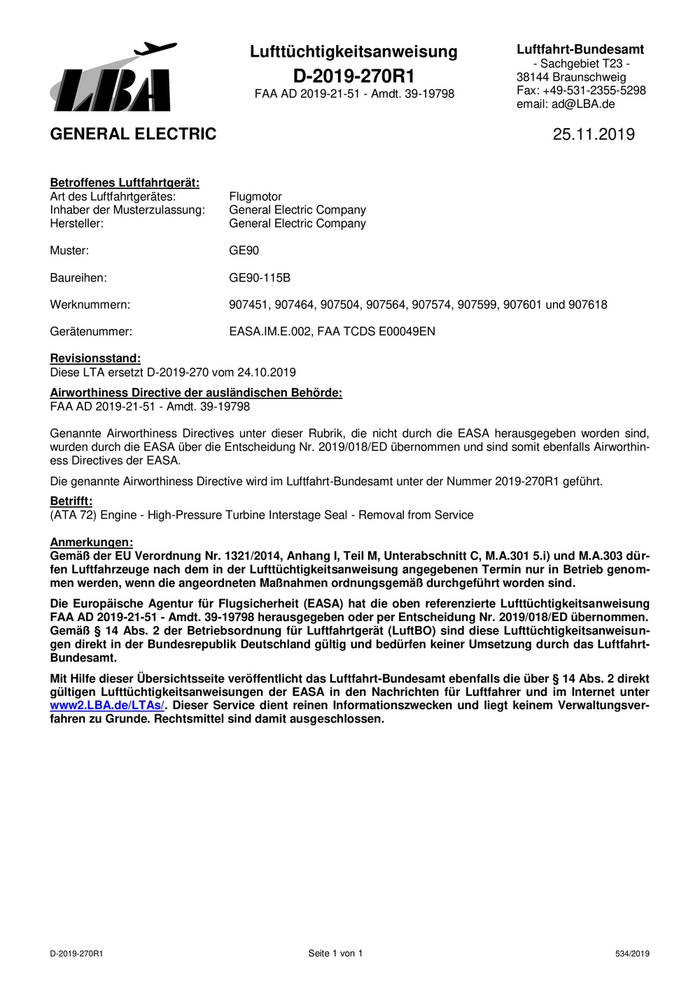

Lufttüchtigkeitsanweisung Luftfahrt-Bundesamt
- Sachgebiet T23 -
D-2019-270R1 38144 Braunschweig
FAA AD 2019-21-51 - Amdt. 39-19798 Fax: +49-531-2355-5298
email: ad@LBA.de
GENERAL ELECTRIC 25.11.2019
Betroffenes Luftfahrtgerät:
Art des Luftfahrtgerätes: Flugmotor
Inhaber der Musterzulassung: General Electric Company
Hersteller: General Electric Company
Muster: GE90
Baureihen: GE90-115B
Werknummern: 907451, 907464, 907504, 907564, 907574, 907599, 907601 und 907618
Gerätenummer: EASA.IM.E.002, FAA TCDS E00049EN
Revisionsstand:
Diese LTA ersetzt D-2019-270 vom 24.10.2019
Airworthiness Directive der ausländischen Behörde:
FAA AD 2019-21-51 - Amdt. 39-19798
Genannte Airworthiness Directives unter dieser Rubrik, die nicht durch die EASA herausgegeben worden sind,
wurden durch die EASA über die Entscheidung Nr. 2019/018/ED übernommen und sind somit ebenfalls Airworthin-
ess Directives der EASA.
Die genannte Airworthiness Directive wird im Luftfahrt-Bundesamt unter der Nummer 2019-270R1 geführt.
Betrifft:
(ATA 72) Engine - High-Pressure Turbine Interstage Seal - Removal from Service
Anmerkungen:
Gemäß der EU Verordnung Nr. 1321/2014, Anhang I, Teil M, Unterabschnitt C, M.A.301 5.i) und M.A.303 dür-
fen Luftfahrzeuge nach dem in der Lufttüchtigkeitsanweisung angegebenen Termin nur in Betrieb genom-
men werden, wenn die angeordneten Maßnahmen ordnungsgemäß durchgeführt worden sind.
Die Europäische Agentur für Flugsicherheit (EASA) hat die oben referenzierte Lufttüchtigkeitsanweisung
FAA AD 2019-21-51 - Amdt. 39-19798 herausgegeben oder per Entscheidung Nr. 2019/018/ED übernommen.
Gemäß § 14 Abs. 2 der Betriebsordnung für Luftfahrtgerät (LuftBO) sind diese Lufttüchtigkeitsanweisun-
gen direkt in der Bundesrepublik Deutschland gültig und bedürfen keiner Umsetzung durch das Luftfahrt-
Bundesamt.
Mit Hilfe dieser Übersichtsseite veröffentlicht das Luftfahrt-Bundesamt ebenfalls die über § 14 Abs. 2 direkt
gültigen Lufttüchtigkeitsanweisungen der EASA in den Nachrichten für Luftfahrer und im Internet unter
www2.LBA.de/LTAs/. Dieser Service dient reinen Informationszwecken und liegt keinem Verwaltungsver-
fahren zu Grunde. Rechtsmittel sind damit ausgeschlossen.
D-2019-270R1 Seite 1 von 1 534/2019
