Nachrichten für Luftfahrer 2021 Teil 2 (weicht ggf. von Druckversion ab)
LUFTTÜCHTIGKEITSANWEISUNGEN
2021-2-615

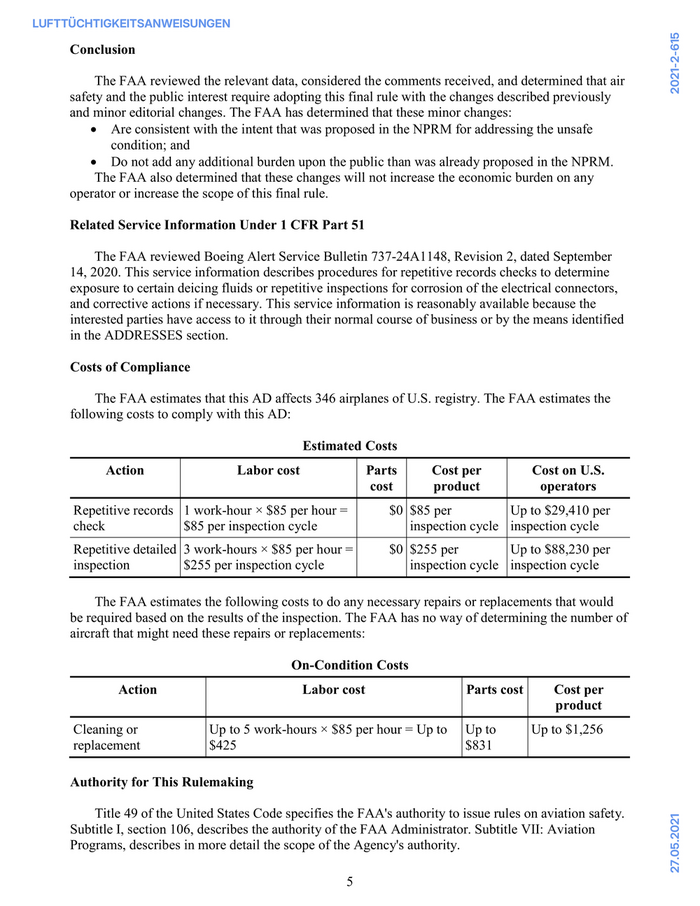

Conclusion
The FAA reviewed the relevant data, considered the comments received, and determined that air
safety and the public interest require adopting this final rule with the changes described previously
and minor editorial changes. The FAA has determined that these minor changes:
• Are consistent with the intent that was proposed in the NPRM for addressing the unsafe
condition; and
• Do not add any additional burden upon the public than was already proposed in the NPRM.
The FAA also determined that these changes will not increase the economic burden on any
operator or increase the scope of this final rule.
Related Service Information Under 1 CFR Part 51
The FAA reviewed Boeing Alert Service Bulletin 737-24A1148, Revision 2, dated September
14, 2020. This service information describes procedures for repetitive records checks to determine
exposure to certain deicing fluids or repetitive inspections for corrosion of the electrical connectors,
and corrective actions if necessary. This service information is reasonably available because the
interested parties have access to it through their normal course of business or by the means identified
in the ADDRESSES section.
Costs of Compliance
The FAA estimates that this AD affects 346 airplanes of U.S. registry. The FAA estimates the
following costs to comply with this AD:
Estimated Costs
Action Labor cost Parts Cost per Cost on U.S.
cost product operators
Repetitive records 1 work-hour × $85 per hour = $0 $85 per Up to $29,410 per
check $85 per inspection cycle inspection cycle inspection cycle
Repetitive detailed 3 work-hours × $85 per hour = $0 $255 per Up to $88,230 per
inspection $255 per inspection cycle inspection cycle inspection cycle
The FAA estimates the following costs to do any necessary repairs or replacements that would
be required based on the results of the inspection. The FAA has no way of determining the number of
aircraft that might need these repairs or replacements:
On-Condition Costs
Action Labor cost Parts cost Cost per
product
Cleaning or Up to 5 work-hours × $85 per hour = Up to Up to Up to $1,256
replacement $425 $831
Authority for This Rulemaking
Title 49 of the United States Code specifies the FAA's authority to issue rules on aviation safety.
27.05.2021
Subtitle I, section 106, describes the authority of the FAA Administrator. Subtitle VII: Aviation
Programs, describes in more detail the scope of the Agency's authority.
5
LUFTTÜCHTIGKEITSANWEISUNGEN
2021-2-615

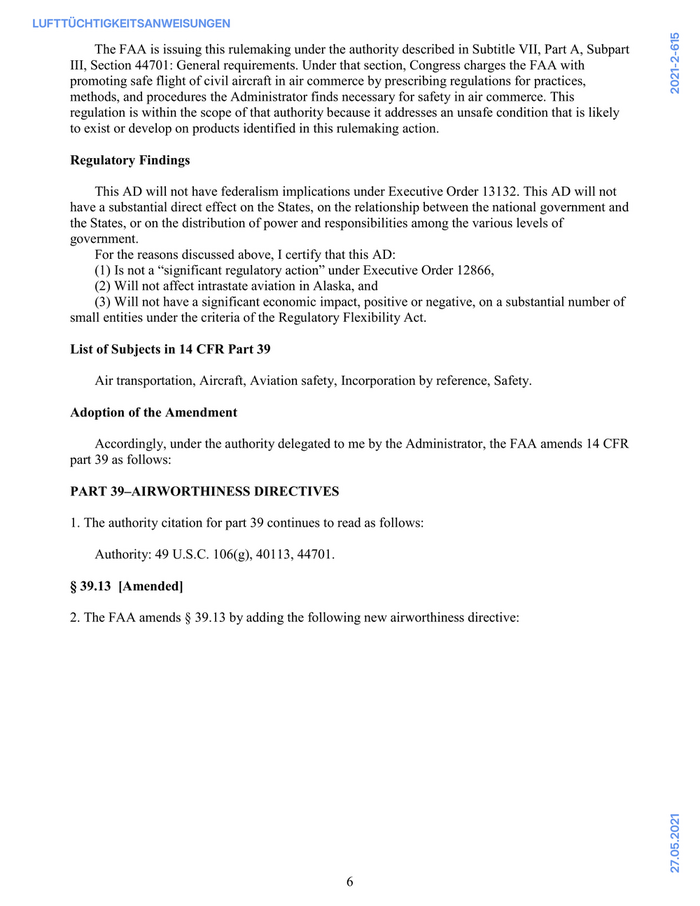

The FAA is issuing this rulemaking under the authority described in Subtitle VII, Part A, Subpart
III, Section 44701: General requirements. Under that section, Congress charges the FAA with
promoting safe flight of civil aircraft in air commerce by prescribing regulations for practices,
methods, and procedures the Administrator finds necessary for safety in air commerce. This
regulation is within the scope of that authority because it addresses an unsafe condition that is likely
to exist or develop on products identified in this rulemaking action.
Regulatory Findings
This AD will not have federalism implications under Executive Order 13132. This AD will not
have a substantial direct effect on the States, on the relationship between the national government and
the States, or on the distribution of power and responsibilities among the various levels of
government.
For the reasons discussed above, I certify that this AD:
(1) Is not a “significant regulatory action” under Executive Order 12866,
(2) Will not affect intrastate aviation in Alaska, and
(3) Will not have a significant economic impact, positive or negative, on a substantial number of
small entities under the criteria of the Regulatory Flexibility Act.
List of Subjects in 14 CFR Part 39
Air transportation, Aircraft, Aviation safety, Incorporation by reference, Safety.
Adoption of the Amendment
Accordingly, under the authority delegated to me by the Administrator, the FAA amends 14 CFR
part 39 as follows:
PART 39–AIRWORTHINESS DIRECTIVES
1. The authority citation for part 39 continues to read as follows:
Authority: 49 U.S.C. 106(g), 40113, 44701.
§ 39.13 [Amended]
2. The FAA amends § 39.13 by adding the following new airworthiness directive:
27.05.2021
6
LUFTTÜCHTIGKEITSANWEISUNGEN
2021-2-615
AIRWORTHINESS
FAA DIRECTIVE
Aviation Safety
www.faa.gov/aircraft/safety/alerts/
www.gpoaccess.gov/fr/advanced.html
2021-07-17 The Boeing Company: Amendment 39-21494 ; Docket No. FAA-2019-1071; Product
Identifier 2019-NM-165-AD.
(a) Effective Date
This airworthiness directive (AD) is effective May 25, 2021.
(b) Affected ADs
None.
(c) Applicability
This AD applies to all The Boeing Company Model 737-900ER series airplanes, certificated in
any category.
(d) Subject
Air Transport Association (ATA) of America Code 24, Electrical power.
(e) Unsafe Condition
This AD was prompted by reports of significant corrosion of electrical connectors located in the
main landing gear (MLG) wheel well. The FAA is issuing this AD to address corrosion and
subsequent moisture ingress that may lead to electrical shorting of the connectors and incorrect
functioning of critical systems necessary for safe flight and landing.
(f) Compliance
Comply with this AD within the compliance times specified, unless already done.
(g) Required Actions
Within 24 months after the date of issuance of the original airworthiness certificate or the date of
issuance of the original export certificate of airworthiness or 12 months after the effective date of this
AD, whichever is later: Do the actions required by paragraph (g)(1) or (2) of this AD.
(1) Determine airplane exposure to runway deicing fluids containing potassium formate or
potassium acetate by reviewing airport data on the types of components in the deicing fluid used at
airports that support airplane operations.
(i) If the airplane has not been exposed: Repeat the requirements specified in paragraph (g)(1) of
this AD thereafter at intervals not to exceed 24 months.
(ii) If the airplane has been exposed: Within 90 days after that determination is made, do the
27.05.2021
inspection required by paragraph (g)(2) of this AD. Repeat the inspection thereafter at intervals not to
exceed 24 months.
7
LUFTTÜCHTIGKEITSANWEISUNGEN
2021-2-615
(2) Do a detailed inspection of the electrical connectors, including the contacts and backshells of
the line replaceable unit (LRU) in the wheel well of the MLG, for corrosion in accordance with the
Accomplishment Instructions of Boeing Alert Service Bulletin 737-24A1148, Revision 2, dated
September 14, 2020. Perform applicable corrective actions at the applicable times, as specified in
paragraphs (g)(2)(i) through (iii) of this AD, in accordance with the Accomplishment Instructions of
Boeing Alert Service Bulletin 737-24A1148, Revision 2, dated September 14, 2020. Repeat the
inspection thereafter at intervals not to exceed 24 months. For the purposes of this AD, a detailed
inspection is defined as an intensive visual examination of a specific structural area, system,
installation, or assembly to detect damage, failure, or irregularity. Available lighting is normally
supplemented with a direct source of good lighting at intensity deemed appropriate by the inspector.
Inspection aids such as mirror, magnifying lenses, etc., may be used. Surface cleaning and elaborate
access procedures may be required.
(i) If the total backshell surface area corrosion is 10 percent or less, clean the backshell(s) before
further flight.
(ii) If the total backshell surface area corrosion is greater than 10 percent but less than 20
percent, replace the connectors and backshells within 30 days after the detailed inspection.
(iii) If the total backshell surface area corrosion is 20 percent or more, replace the connectors and
backshells before further flight.
(h) Credit for Previous Actions
This paragraph provides credit for the initial detailed inspection and applicable corrective actions
specified in paragraph (g)(2) of this AD, if those actions were performed before the effective date of
this AD using Boeing Alert Service Bulletin 737-24A1148, dated December 6, 2001, or Boeing Alert
Service Bulletin 737-24A1148, Revision 1, dated July 10, 2003.
(i) Alternative Methods of Compliance (AMOCs)
(1) The Manager, Seattle ACO Branch, FAA, has the authority to approve AMOCs for this AD,
if requested using the procedures found in 14 CFR 39.19. In accordance with 14 CFR 39.19, send
your request to your principal inspector or local Flight Standards District Office, as appropriate. If
sending information directly to the manager of the certification office, send it to the attention of the
person identified in paragraph (j) of this AD. Information may be emailed to: 9-ANM-Seattle-ACO-
AMOC-Requests@faa.gov.
(2) Before using any approved AMOC, notify your appropriate principal inspector, or lacking a
principal inspector, the manager of the local flight standards district office/certificate holding district
office.
(3) An AMOC that provides an acceptable level of safety may be used for any repair,
modification, or alteration required by this AD if it is approved by The Boeing Company
Organization Designation Authorization (ODA) that has been authorized by the Manager, Seattle
ACO Branch, FAA, to make those findings. To be approved, the repair method, modification
deviation, or alteration deviation must meet the certification basis of the airplane, and the approval
must specifically refer to this AD.
(4) FAA AMOC Letter 130S-09-9, dated April 28, 2009, and AMOCs approved previously for
AD 2005-18-23, Amendment 39-14264 (70 FR 54253, September 14, 2005), are approved as
AMOCs for the corresponding provisions of this AD.
(j) Related Information
For more information about this AD, contact Julio C. Alvarez, Aerospace Engineer, Systems and
27.05.2021
Equipment Section, FAA, Seattle ACO Branch, 2200 South 216th St., Des Moines, WA 98198;
phone and fax: 206-231-3657; email: julio.c.alvarez@faa.gov.
8
LUFTTÜCHTIGKEITSANWEISUNGEN
2021-2-615

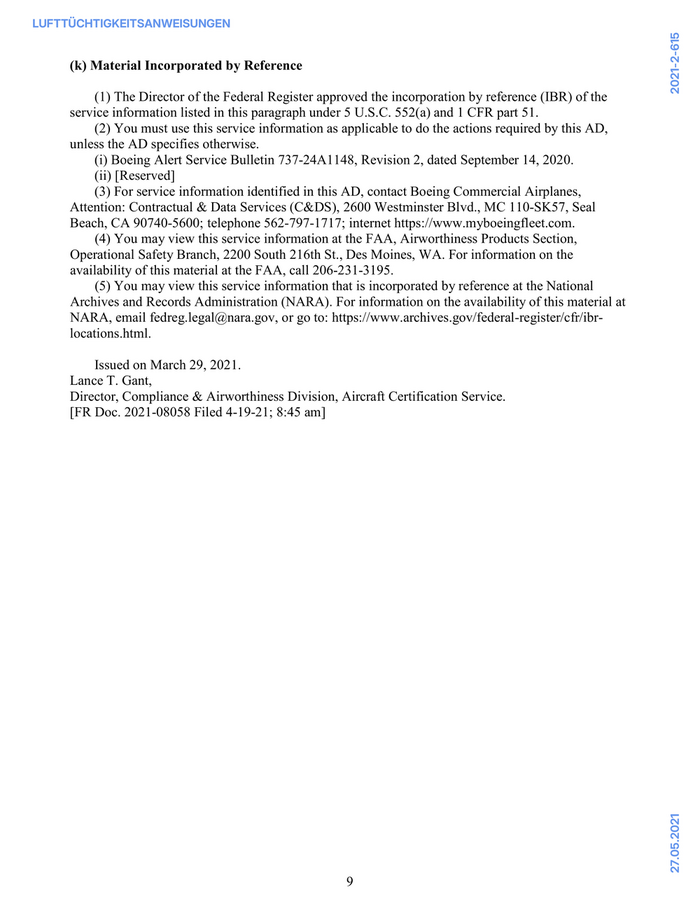

(k) Material Incorporated by Reference
(1) The Director of the Federal Register approved the incorporation by reference (IBR) of the
service information listed in this paragraph under 5 U.S.C. 552(a) and 1 CFR part 51.
(2) You must use this service information as applicable to do the actions required by this AD,
unless the AD specifies otherwise.
(i) Boeing Alert Service Bulletin 737-24A1148, Revision 2, dated September 14, 2020.
(ii) [Reserved]
(3) For service information identified in this AD, contact Boeing Commercial Airplanes,
Attention: Contractual & Data Services (C&DS), 2600 Westminster Blvd., MC 110-SK57, Seal
Beach, CA 90740-5600; telephone 562-797-1717; internet https://www.myboeingfleet.com.
(4) You may view this service information at the FAA, Airworthiness Products Section,
Operational Safety Branch, 2200 South 216th St., Des Moines, WA. For information on the
availability of this material at the FAA, call 206-231-3195.
(5) You may view this service information that is incorporated by reference at the National
Archives and Records Administration (NARA). For information on the availability of this material at
NARA, email fedreg.legal@nara.gov, or go to: https://www.archives.gov/federal-register/cfr/ibr-
locations.html.
Issued on March 29, 2021.
Lance T. Gant,
Director, Compliance & Airworthiness Division, Aircraft Certification Service.
[FR Doc. 2021-08058 Filed 4-19-21; 8:45 am]
27.05.2021
9
LUFTTÜCHTIGKEITSANWEISUNGEN
2021-2-615

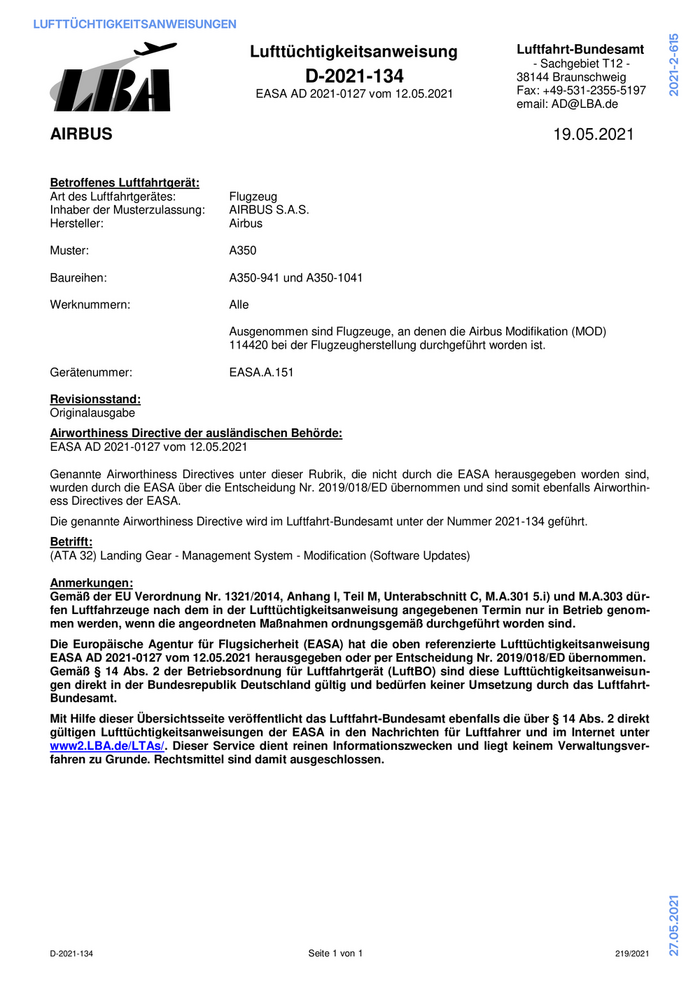

Lufttüchtigkeitsanweisung Luftfahrt-Bundesamt
- Sachgebiet T12 -
D-2021-134 38144 Braunschweig
EASA AD 2021-0127 vom 12.05.2021 Fax: +49-531-2355-5197
email: AD@LBA.de
AIRBUS 19.05.2021
Betroffenes Luftfahrtgerät:
Art des Luftfahrtgerätes: Flugzeug
Inhaber der Musterzulassung: AIRBUS S.A.S.
Hersteller: Airbus
Muster: A350
Baureihen: A350-941 und A350-1041
Werknummern: Alle
Ausgenommen sind Flugzeuge, an denen die Airbus Modifikation (MOD)
114420 bei der Flugzeugherstellung durchgeführt worden ist.
Gerätenummer: EASA.A.151
Revisionsstand:
Originalausgabe
Airworthiness Directive der ausländischen Behörde:
EASA AD 2021-0127 vom 12.05.2021
Genannte Airworthiness Directives unter dieser Rubrik, die nicht durch die EASA herausgegeben worden sind,
wurden durch die EASA über die Entscheidung Nr. 2019/018/ED übernommen und sind somit ebenfalls Airworthin-
ess Directives der EASA.
Die genannte Airworthiness Directive wird im Luftfahrt-Bundesamt unter der Nummer 2021-134 geführt.
Betrifft:
(ATA 32) Landing Gear - Management System - Modification (Software Updates)
Anmerkungen:
Gemäß der EU Verordnung Nr. 1321/2014, Anhang I, Teil M, Unterabschnitt C, M.A.301 5.i) und M.A.303 dür-
fen Luftfahrzeuge nach dem in der Lufttüchtigkeitsanweisung angegebenen Termin nur in Betrieb genom-
men werden, wenn die angeordneten Maßnahmen ordnungsgemäß durchgeführt worden sind.
Die Europäische Agentur für Flugsicherheit (EASA) hat die oben referenzierte Lufttüchtigkeitsanweisung
EASA AD 2021-0127 vom 12.05.2021 herausgegeben oder per Entscheidung Nr. 2019/018/ED übernommen.
Gemäß § 14 Abs. 2 der Betriebsordnung für Luftfahrtgerät (LuftBO) sind diese Lufttüchtigkeitsanweisun-
gen direkt in der Bundesrepublik Deutschland gültig und bedürfen keiner Umsetzung durch das Luftfahrt-
Bundesamt.
Mit Hilfe dieser Übersichtsseite veröffentlicht das Luftfahrt-Bundesamt ebenfalls die über § 14 Abs. 2 direkt
gültigen Lufttüchtigkeitsanweisungen der EASA in den Nachrichten für Luftfahrer und im Internet unter
www2.LBA.de/LTAs/. Dieser Service dient reinen Informationszwecken und liegt keinem Verwaltungsver-
fahren zu Grunde. Rechtsmittel sind damit ausgeschlossen.
27.05.2021
D-2021-134 Seite 1 von 1 219/2021
LUFTTÜCHTIGKEITSANWEISUNGEN
2021-2-615
EASA AD No.: 2021-0127

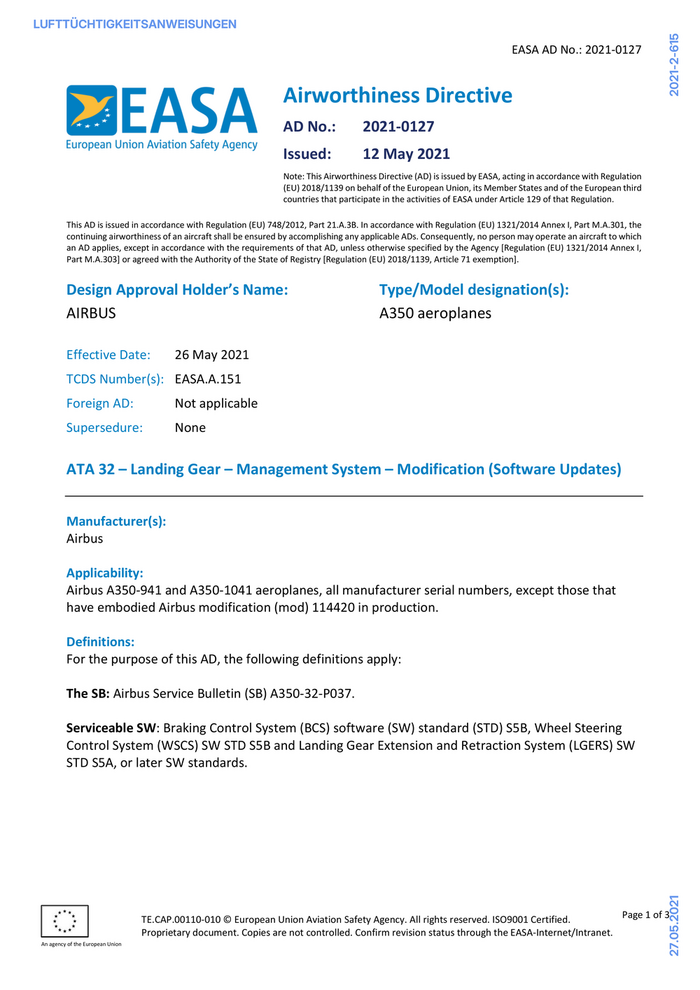

Airworthiness Directive
AD No.: 2021-0127
Issued: 12 May 2021
Note: This Airworthiness Directive (AD) is issued by EASA, acting in accordance with Regulation
(EU) 2018/1139 on behalf of the European Union, its Member States and of the European third
countries that participate in the activities of EASA under Article 129 of that Regulation.
This AD is issued in accordance with Regulation (EU) 748/2012, Part 21.A.3B. In accordance with Regulation (EU) 1321/2014 Annex I, Part M.A.301, the
continuing airworthiness of an aircraft shall be ensured by accomplishing any applicable ADs. Consequently, no person may operate an aircraft to which
an AD applies, except in accordance with the requirements of that AD, unless otherwise specified by the Agency [Regulation (EU) 1321/2014 Annex I,
Part M.A.303] or agreed with the Authority of the State of Registry [Regulation (EU) 2018/1139, Article 71 exemption].
Design Approval Holder’s Name: Type/Model designation(s):
AIRBUS A350 aeroplanes
Effective Date: 26 May 2021
TCDS Number(s): EASA.A.151
Foreign AD: Not applicable
Supersedure: None
ATA 32 – Landing Gear – Management System – Modification (Software Updates)
Manufacturer(s):
Airbus
Applicability:
Airbus A350-941 and A350-1041 aeroplanes, all manufacturer serial numbers, except those that
have embodied Airbus modification (mod) 114420 in production.
Definitions:
For the purpose of this AD, the following definitions apply:
The SB: Airbus Service Bulletin (SB) A350-32-P037.
Serviceable SW: Braking Control System (BCS) software (SW) standard (STD) S5B, Wheel Steering
Control System (WSCS) SW STD S5B and Landing Gear Extension and Retraction System (LGERS) SW
STD S5A, or later SW standards.
27.05.2021
TE.CAP.00110-010 © European Union Aviation Safety Agency. All rights reserved. ISO9001 Certified. Page 1 of 3
Proprietary document. Copies are not controlled. Confirm revision status through the EASA-Internet/Intranet.
An agency of the European Union
LUFTTÜCHTIGKEITSANWEISUNGEN
2021-2-615
EASA AD No.: 2021-0127

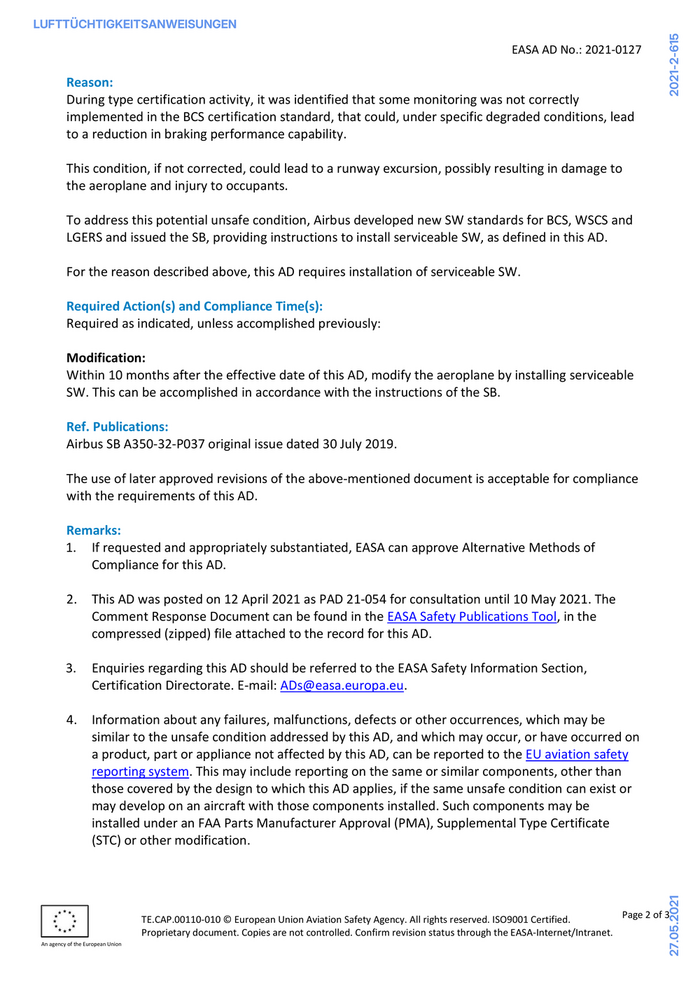

Reason:
During type certification activity, it was identified that some monitoring was not correctly
implemented in the BCS certification standard, that could, under specific degraded conditions, lead
to a reduction in braking performance capability.
This condition, if not corrected, could lead to a runway excursion, possibly resulting in damage to
the aeroplane and injury to occupants.
To address this potential unsafe condition, Airbus developed new SW standards for BCS, WSCS and
LGERS and issued the SB, providing instructions to install serviceable SW, as defined in this AD.
For the reason described above, this AD requires installation of serviceable SW.
Required Action(s) and Compliance Time(s):
Required as indicated, unless accomplished previously:
Modification:
Within 10 months after the effective date of this AD, modify the aeroplane by installing serviceable
SW. This can be accomplished in accordance with the instructions of the SB.
Ref. Publications:
Airbus SB A350-32-P037 original issue dated 30 July 2019.
The use of later approved revisions of the above-mentioned document is acceptable for compliance
with the requirements of this AD.
Remarks:
1. If requested and appropriately substantiated, EASA can approve Alternative Methods of
Compliance for this AD.
2. This AD was posted on 12 April 2021 as PAD 21-054 for consultation until 10 May 2021. The
Comment Response Document can be found in the EASA Safety Publications Tool, in the
compressed (zipped) file attached to the record for this AD.
3. Enquiries regarding this AD should be referred to the EASA Safety Information Section,
Certification Directorate. E-mail: ADs@easa.europa.eu.
4. Information about any failures, malfunctions, defects or other occurrences, which may be
similar to the unsafe condition addressed by this AD, and which may occur, or have occurred on
a product, part or appliance not affected by this AD, can be reported to the EU aviation safety
reporting system. This may include reporting on the same or similar components, other than
those covered by the design to which this AD applies, if the same unsafe condition can exist or
may develop on an aircraft with those components installed. Such components may be
installed under an FAA Parts Manufacturer Approval (PMA), Supplemental Type Certificate
(STC) or other modification.
27.05.2021
TE.CAP.00110-010 © European Union Aviation Safety Agency. All rights reserved. ISO9001 Certified. Page 2 of 3
Proprietary document. Copies are not controlled. Confirm revision status through the EASA-Internet/Intranet.
An agency of the European Union
LUFTTÜCHTIGKEITSANWEISUNGEN
2021-2-615
EASA AD No.: 2021-0127
5. For any question concerning the technical content of the requirements in this AD, please
contact: AIRBUS A350 XWB, E-mail: continued-airworthiness.a350@airbus.com.
27.05.2021
TE.CAP.00110-010 © European Union Aviation Safety Agency. All rights reserved. ISO9001 Certified. Page 3 of 3
Proprietary document. Copies are not controlled. Confirm revision status through the EASA-Internet/Intranet.
An agency of the European Union
LUFTTÜCHTIGKEITSANWEISUNGEN
2021-2-615

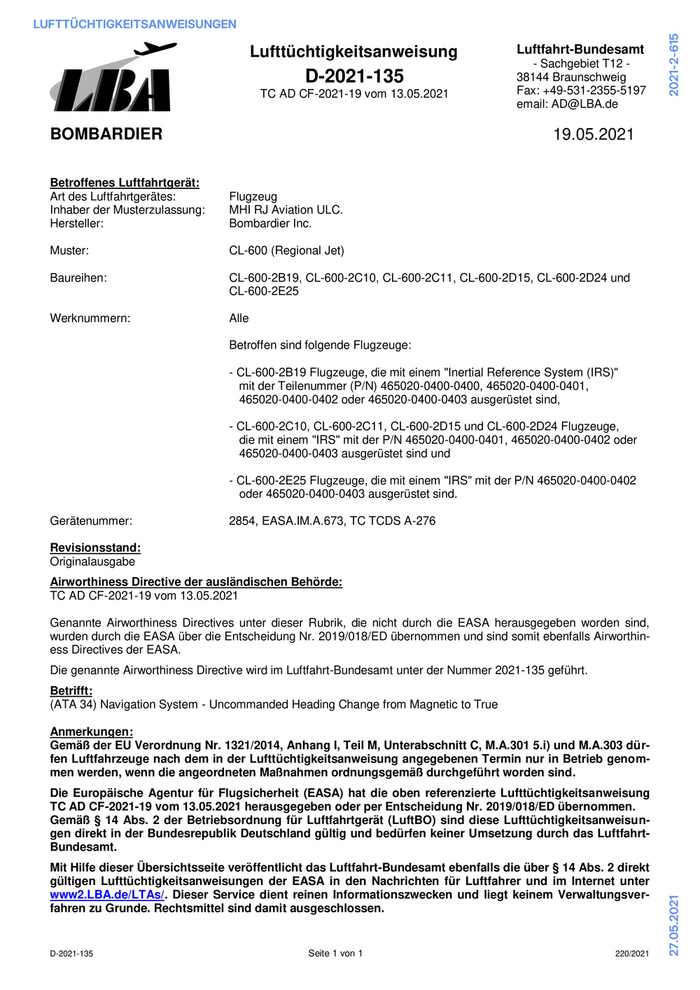

Lufttüchtigkeitsanweisung Luftfahrt-Bundesamt
- Sachgebiet T12 -
D-2021-135 38144 Braunschweig
TC AD CF-2021-19 vom 13.05.2021 Fax: +49-531-2355-5197
email: AD@LBA.de
BOMBARDIER 19.05.2021
Betroffenes Luftfahrtgerät:
Art des Luftfahrtgerätes: Flugzeug
Inhaber der Musterzulassung: MHI RJ Aviation ULC.
Hersteller: Bombardier Inc.
Muster: CL-600 (Regional Jet)
Baureihen: CL-600-2B19, CL-600-2C10, CL-600-2C11, CL-600-2D15, CL-600-2D24 und
CL-600-2E25
Werknummern: Alle
Betroffen sind folgende Flugzeuge:
- CL-600-2B19 Flugzeuge, die mit einem "Inertial Reference System (IRS)"
mit der Teilenummer (P/N) 465020-0400-0400, 465020-0400-0401,
465020-0400-0402 oder 465020-0400-0403 ausgerüstet sind,
- CL-600-2C10, CL-600-2C11, CL-600-2D15 und CL-600-2D24 Flugzeuge,
die mit einem "IRS" mit der P/N 465020-0400-0401, 465020-0400-0402 oder
465020-0400-0403 ausgerüstet sind und
- CL-600-2E25 Flugzeuge, die mit einem "IRS" mit der P/N 465020-0400-0402
oder 465020-0400-0403 ausgerüstet sind.
Gerätenummer: 2854, EASA.IM.A.673, TC TCDS A-276
Revisionsstand:
Originalausgabe
Airworthiness Directive der ausländischen Behörde:
TC AD CF-2021-19 vom 13.05.2021
Genannte Airworthiness Directives unter dieser Rubrik, die nicht durch die EASA herausgegeben worden sind,
wurden durch die EASA über die Entscheidung Nr. 2019/018/ED übernommen und sind somit ebenfalls Airworthin-
ess Directives der EASA.
Die genannte Airworthiness Directive wird im Luftfahrt-Bundesamt unter der Nummer 2021-135 geführt.
Betrifft:
(ATA 34) Navigation System - Uncommanded Heading Change from Magnetic to True
Anmerkungen:
Gemäß der EU Verordnung Nr. 1321/2014, Anhang I, Teil M, Unterabschnitt C, M.A.301 5.i) und M.A.303 dür-
fen Luftfahrzeuge nach dem in der Lufttüchtigkeitsanweisung angegebenen Termin nur in Betrieb genom-
men werden, wenn die angeordneten Maßnahmen ordnungsgemäß durchgeführt worden sind.
Die Europäische Agentur für Flugsicherheit (EASA) hat die oben referenzierte Lufttüchtigkeitsanweisung
TC AD CF-2021-19 vom 13.05.2021 herausgegeben oder per Entscheidung Nr. 2019/018/ED übernommen.
Gemäß § 14 Abs. 2 der Betriebsordnung für Luftfahrtgerät (LuftBO) sind diese Lufttüchtigkeitsanweisun-
gen direkt in der Bundesrepublik Deutschland gültig und bedürfen keiner Umsetzung durch das Luftfahrt-
Bundesamt.
Mit Hilfe dieser Übersichtsseite veröffentlicht das Luftfahrt-Bundesamt ebenfalls die über § 14 Abs. 2 direkt
gültigen Lufttüchtigkeitsanweisungen der EASA in den Nachrichten für Luftfahrer und im Internet unter
www2.LBA.de/LTAs/. Dieser Service dient reinen Informationszwecken und liegt keinem Verwaltungsver-
27.05.2021
fahren zu Grunde. Rechtsmittel sind damit ausgeschlossen.
D-2021-135 Seite 1 von 1 220/2021
