Nachrichten für Luftfahrer 2021 Teil 2 (weicht ggf. von Druckversion ab)
LUFTTÜCHTIGKEITSANWEISUNGEN
TP 7245E
2021-2-615
1 of 2
AD Number: CF-2021-19
AIRWORTHINESS DIRECTIVE
This Airworthiness Directive (AD) is issued pursuant to Canadian Aviation Regulation (CAR) 521.427.
No person shall conduct a take-off or permit a take-off to be conducted in an aircraft that is in their legal
custody and control, unless the requirements of CAR 605.84 pertaining to ADs are met. Standard 625 -
Aircraft Equipment and Maintenance Standards Appendix H provides information concerning alternative
means of compliance (AMOC) with ADs.
Number: Effective Date:
CF-2021-19 27 May 2021
ATA: Type Certificate:
34 A-276
Subject:
Navigation System – Uncommanded Heading Change from Magnetic (MAG) to True (TRU)
Applicability:
MHI RJ Aviation ULC. (formerly Bombardier Inc.) aeroplanes:
Model CL-600-2B19, equipped with inertial reference system (IRS) part number (P/N)
465020-0400-0400, 465020-0400-0401, 465020-0400-0402 or 465020-0400-0403;
Model CL-600-2C10, CL-600-2C11, CL-600-2D15 and CL-600-2D24, equipped with IRS P/N
465020-0400-0401, 465020-0400-0402 or 465020-0400-0403;
Model CL-600-2E25, equipped with IRS P/N 465020-0400-0402 or 465020-0400-0403.
Compliance:
Within 30 days from the effective date of this AD, unless already accomplished.
Background:
MHI RJ Aviation has received reports from operators whereby the displayed heading changed from MAG
to TRU with no pilot action. An uncommanded change of the indicated heading from MAG to TRU may
result in misleading heading information (greater than 10 degrees in certain areas) on both pilot primary
flight displays (PFDs) and multi-function displays (MFDs) and misleading course information on flight
management systems (FMS).
Despite possible warnings and guidance provided by other systems such as traffic collision avoidance
system (TCAS), enhanced ground proximity warning system (EGPWS) or air traffic control (ATC), this
situation may lead to the aircraft being operated outside the terrain and obstacle protection provided in
instrument procedure and route designs, and could result in reduced operational safety margins.
This AD mandates the Airplane Flight Manual (AFM) update to the Instrument Systems Abnormal
Procedures.
Corrective Actions:
A. Amend the applicable Transport Canada (TC) approved AFM by incorporating the revision to the
Chapter 05 – Abnormal Procedures – Instrument Systems as listed in Table 1 below:
27.05.2021
LUFTTÜCHTIGKEITSANWEISUNGEN
CF-2021-19 2 of 2
2021-2-615
Table 1
Aeroplane Model AFM No AFM Revision
CL-600-2B19 CSP A-012 AFM Revision 74, dated 3 July 2020, or later revisions of this
procedure approved by TC
CL-600-2C10 and CSP B-012 AFM Revision 30, dated 28 February 2020, or later revisions
CL-600-2C11 of this procedure approved by TC
CL-600-2D15 and CSP C-012 AFM Revision 24, dated 27 March 2020, or later revisions of
CL-600-2D24 this procedure approved by TC
CL-600-2E25 CSP D-012 AFM Revision 23, dated 14 February 2020, or later revisions
of this procedure approved by TC
B. Following the incorporation of the above-mentioned AFM revisions, advise all flight crews of the
changes introduced by these revisions and thereafter operate the aircraft accordingly.
Authorization:
For the Minister of Transport,
ORIGINAL SIGNED BY
Matthew Weeks
Acting Chief, Continuing Airworthiness
Issued on 13 May 2021
Contact:
Philip Lynch, Continuing Airworthiness, Ottawa, telephone 888-663-3639, facsimile 613-996-9178 or
e-mail TC.AirworthinessDirectives-Consignesdenavigabilite.TC@tc.gc.ca or any Transport Canada
Centre.
27.05.2021
LUFTTÜCHTIGKEITSANWEISUNGEN
2021-2-615

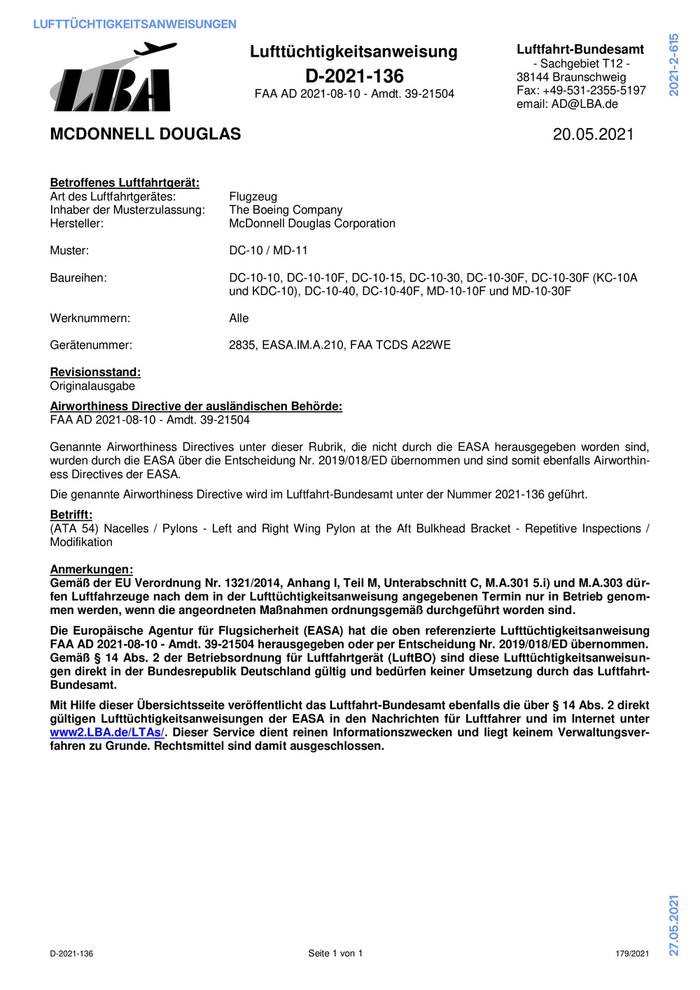

Lufttüchtigkeitsanweisung Luftfahrt-Bundesamt
- Sachgebiet T12 -
D-2021-136 38144 Braunschweig
FAA AD 2021-08-10 - Amdt. 39-21504 Fax: +49-531-2355-5197
email: AD@LBA.de
MCDONNELL DOUGLAS 20.05.2021
Betroffenes Luftfahrtgerät:
Art des Luftfahrtgerätes: Flugzeug
Inhaber der Musterzulassung: The Boeing Company
Hersteller: McDonnell Douglas Corporation
Muster: DC-10 / MD-11
Baureihen: DC-10-10, DC-10-10F, DC-10-15, DC-10-30, DC-10-30F, DC-10-30F (KC-10A
und KDC-10), DC-10-40, DC-10-40F, MD-10-10F und MD-10-30F
Werknummern: Alle
Gerätenummer: 2835, EASA.IM.A.210, FAA TCDS A22WE
Revisionsstand:
Originalausgabe
Airworthiness Directive der ausländischen Behörde:
FAA AD 2021-08-10 - Amdt. 39-21504
Genannte Airworthiness Directives unter dieser Rubrik, die nicht durch die EASA herausgegeben worden sind,
wurden durch die EASA über die Entscheidung Nr. 2019/018/ED übernommen und sind somit ebenfalls Airworthin-
ess Directives der EASA.
Die genannte Airworthiness Directive wird im Luftfahrt-Bundesamt unter der Nummer 2021-136 geführt.
Betrifft:
(ATA 54) Nacelles / Pylons - Left and Right Wing Pylon at the Aft Bulkhead Bracket - Repetitive Inspections /
Modifikation
Anmerkungen:
Gemäß der EU Verordnung Nr. 1321/2014, Anhang I, Teil M, Unterabschnitt C, M.A.301 5.i) und M.A.303 dür-
fen Luftfahrzeuge nach dem in der Lufttüchtigkeitsanweisung angegebenen Termin nur in Betrieb genom-
men werden, wenn die angeordneten Maßnahmen ordnungsgemäß durchgeführt worden sind.
Die Europäische Agentur für Flugsicherheit (EASA) hat die oben referenzierte Lufttüchtigkeitsanweisung
FAA AD 2021-08-10 - Amdt. 39-21504 herausgegeben oder per Entscheidung Nr. 2019/018/ED übernommen.
Gemäß § 14 Abs. 2 der Betriebsordnung für Luftfahrtgerät (LuftBO) sind diese Lufttüchtigkeitsanweisun-
gen direkt in der Bundesrepublik Deutschland gültig und bedürfen keiner Umsetzung durch das Luftfahrt-
Bundesamt.
Mit Hilfe dieser Übersichtsseite veröffentlicht das Luftfahrt-Bundesamt ebenfalls die über § 14 Abs. 2 direkt
gültigen Lufttüchtigkeitsanweisungen der EASA in den Nachrichten für Luftfahrer und im Internet unter
www2.LBA.de/LTAs/. Dieser Service dient reinen Informationszwecken und liegt keinem Verwaltungsver-
fahren zu Grunde. Rechtsmittel sind damit ausgeschlossen.
27.05.2021
D-2021-136 Seite 1 von 1 179/2021
LUFTTÜCHTIGKEITSANWEISUNGEN
2021-2-615

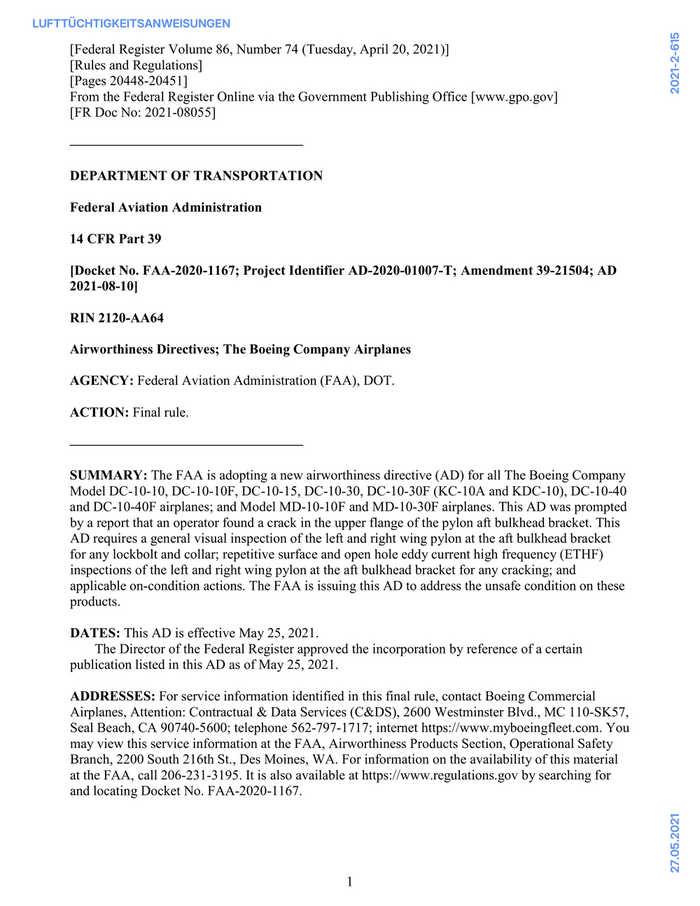

[Federal Register Volume 86, Number 74 (Tuesday, April 20, 2021)]
[Rules and Regulations]
[Pages 20448-20451]
From the Federal Register Online via the Government Publishing Office [www.gpo.gov]
[FR Doc No: 2021-08055]
––––––––––––––––––––––––––––––––––
DEPARTMENT OF TRANSPORTATION
Federal Aviation Administration
14 CFR Part 39
[Docket No. FAA-2020-1167; Project Identifier AD-2020-01007-T; Amendment 39-21504; AD
2021-08-10]
RIN 2120-AA64
Airworthiness Directives; The Boeing Company Airplanes
AGENCY: Federal Aviation Administration (FAA), DOT.
ACTION: Final rule.
––––––––––––––––––––––––––––––––––
SUMMARY: The FAA is adopting a new airworthiness directive (AD) for all The Boeing Company
Model DC-10-10, DC-10-10F, DC-10-15, DC-10-30, DC-10-30F (KC-10A and KDC-10), DC-10-40
and DC-10-40F airplanes; and Model MD-10-10F and MD-10-30F airplanes. This AD was prompted
by a report that an operator found a crack in the upper flange of the pylon aft bulkhead bracket. This
AD requires a general visual inspection of the left and right wing pylon at the aft bulkhead bracket
for any lockbolt and collar; repetitive surface and open hole eddy current high frequency (ETHF)
inspections of the left and right wing pylon at the aft bulkhead bracket for any cracking; and
applicable on-condition actions. The FAA is issuing this AD to address the unsafe condition on these
products.
DATES: This AD is effective May 25, 2021.
The Director of the Federal Register approved the incorporation by reference of a certain
publication listed in this AD as of May 25, 2021.
ADDRESSES: For service information identified in this final rule, contact Boeing Commercial
Airplanes, Attention: Contractual & Data Services (C&DS), 2600 Westminster Blvd., MC 110-SK57,
Seal Beach, CA 90740-5600; telephone 562-797-1717; internet https://www.myboeingfleet.com. You
may view this service information at the FAA, Airworthiness Products Section, Operational Safety
Branch, 2200 South 216th St., Des Moines, WA. For information on the availability of this material
at the FAA, call 206-231-3195. It is also available at https://www.regulations.gov by searching for
and locating Docket No. FAA-2020-1167.
27.05.2021
1
LUFTTÜCHTIGKEITSANWEISUNGEN
2021-2-615
Examining the AD Docket
You may examine the AD docket at https://www.regulations.gov by searching for and locating
Docket No. FAA-2020-1167; or in person at Docket Operations between 9 a.m. and 5 p.m., Monday
through Friday, except Federal holidays. The AD docket contains this final rule, any comments
received, and other information. The address for Docket Operations is U.S. Department of
Transportation, Docket Operations, M-30, West Building Ground Floor, Room W12-140, 1200 New
Jersey Avenue SE, Washington, DC 20590.
FOR FURTHER INFORMATION CONTACT: Manuel Hernandez, Aerospace Engineer,
Airframe Section, FAA, Los Angeles ACO Branch, 3960 Paramount Boulevard, Lakewood, CA
90712-4137; phone: 562-627-5256; fax: 562-627-5210; email: Manuel.F.Hernandez@faa.gov.
SUPPLEMENTARY INFORMATION:
Background
The FAA issued a notice of proposed rulemaking (NPRM) to amend 14 CFR part 39 by adding
an AD that would apply to all The Boeing Company Model DC-10-10, DC-10-10F, DC-10-15, DC-
10-30, DC-10-30F (KC-10A and KDC-10), DC-10-40 and DC-10-40F airplanes; and Model MD-10-
10F and MD-10-30F airplanes. The NPRM published in the Federal Register on January 15, 2021 (86
FR 3885). The NPRM was prompted by a report that an operator found a crack in the upper flange of
the pylon aft bulkhead bracket. In the NPRM, the FAA proposed to require a general visual
inspection of the left and right wing pylon at the aft bulkhead bracket for any lockbolt and collar;
repetitive surface and open hole ETHF inspections of the left and right wing pylon at the aft bulkhead
bracket for any cracking; and applicable on-condition actions. The FAA is issuing this AD to address
possible cracking of the wing pylon at the aft bulkhead bracket, which could result in the inability of
the pylon to sustain limit load and adversely affect the structural integrity of the airplane.
Discussion of Final Airworthiness Directive
Comments
The FAA received a comment from The Air Line Pilots Association, International (ALPA) who
supported the NPRM without change.
Conclusion
The FAA reviewed the relevant data, considered any comments received, and determined that air
safety requires adopting this AD as proposed. Except for minor editorial changes, this AD is adopted
as proposed in the NPRM. None of the changes will increase the economic burden on any operator.
Related Service Information Under 1 CFR Part 51
The FAA reviewed Boeing Alert Requirements Bulletin DC10-54A111 RB, dated June 26, 2020.
The service information describes procedures for a general visual inspection of the left and right wing
pylon at the aft bulkhead bracket for any lockbolt and collar; repetitive surface and open hole ETHF
inspections of the left and right wing pylon at the aft bulkhead bracket for any cracking; and
applicable on-condition actions. On-condition actions include modifying any aft bulkhead bracket
that has a lockbolt and collar, and repair or replacement of the aft bulkhead bracket.
27.05.2021
This service information is reasonably available because the interested parties have access to it
through their normal course of business or by the means identified in ADDRESSES.
2
LUFTTÜCHTIGKEITSANWEISUNGEN
2021-2-615

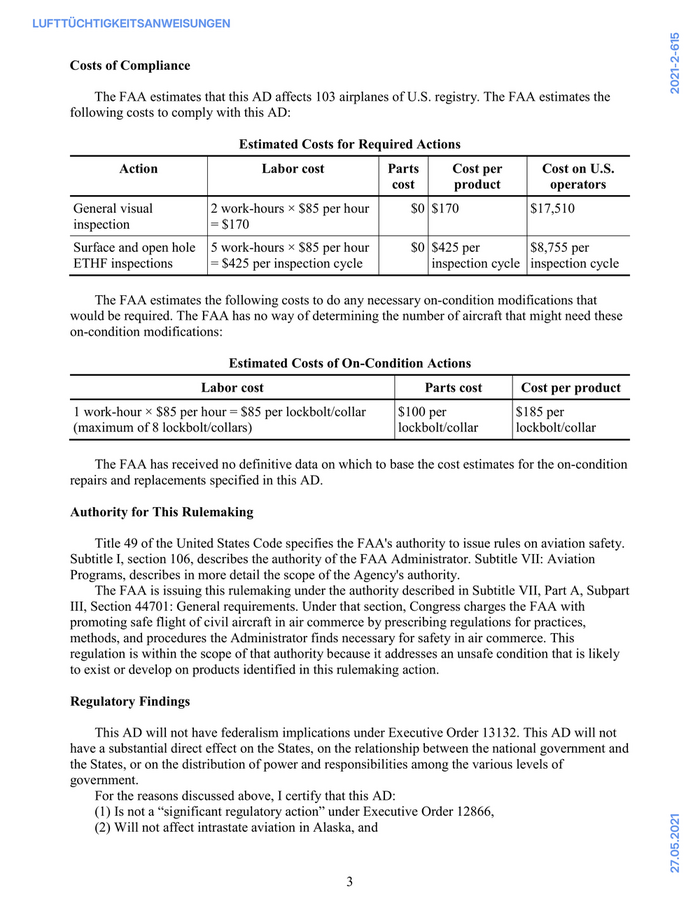

Costs of Compliance
The FAA estimates that this AD affects 103 airplanes of U.S. registry. The FAA estimates the
following costs to comply with this AD:
Estimated Costs for Required Actions
Action Labor cost Parts Cost per Cost on U.S.
cost product operators
General visual 2 work-hours × $85 per hour $0 $170 $17,510
inspection = $170
Surface and open hole 5 work-hours × $85 per hour $0 $425 per $8,755 per
ETHF inspections = $425 per inspection cycle inspection cycle inspection cycle
The FAA estimates the following costs to do any necessary on-condition modifications that
would be required. The FAA has no way of determining the number of aircraft that might need these
on-condition modifications:
Estimated Costs of On-Condition Actions
Labor cost Parts cost Cost per product
1 work-hour × $85 per hour = $85 per lockbolt/collar $100 per $185 per
(maximum of 8 lockbolt/collars) lockbolt/collar lockbolt/collar
The FAA has received no definitive data on which to base the cost estimates for the on-condition
repairs and replacements specified in this AD.
Authority for This Rulemaking
Title 49 of the United States Code specifies the FAA's authority to issue rules on aviation safety.
Subtitle I, section 106, describes the authority of the FAA Administrator. Subtitle VII: Aviation
Programs, describes in more detail the scope of the Agency's authority.
The FAA is issuing this rulemaking under the authority described in Subtitle VII, Part A, Subpart
III, Section 44701: General requirements. Under that section, Congress charges the FAA with
promoting safe flight of civil aircraft in air commerce by prescribing regulations for practices,
methods, and procedures the Administrator finds necessary for safety in air commerce. This
regulation is within the scope of that authority because it addresses an unsafe condition that is likely
to exist or develop on products identified in this rulemaking action.
Regulatory Findings
This AD will not have federalism implications under Executive Order 13132. This AD will not
have a substantial direct effect on the States, on the relationship between the national government and
the States, or on the distribution of power and responsibilities among the various levels of
government.
For the reasons discussed above, I certify that this AD:
(1) Is not a “significant regulatory action” under Executive Order 12866,
27.05.2021
(2) Will not affect intrastate aviation in Alaska, and
3
LUFTTÜCHTIGKEITSANWEISUNGEN
2021-2-615

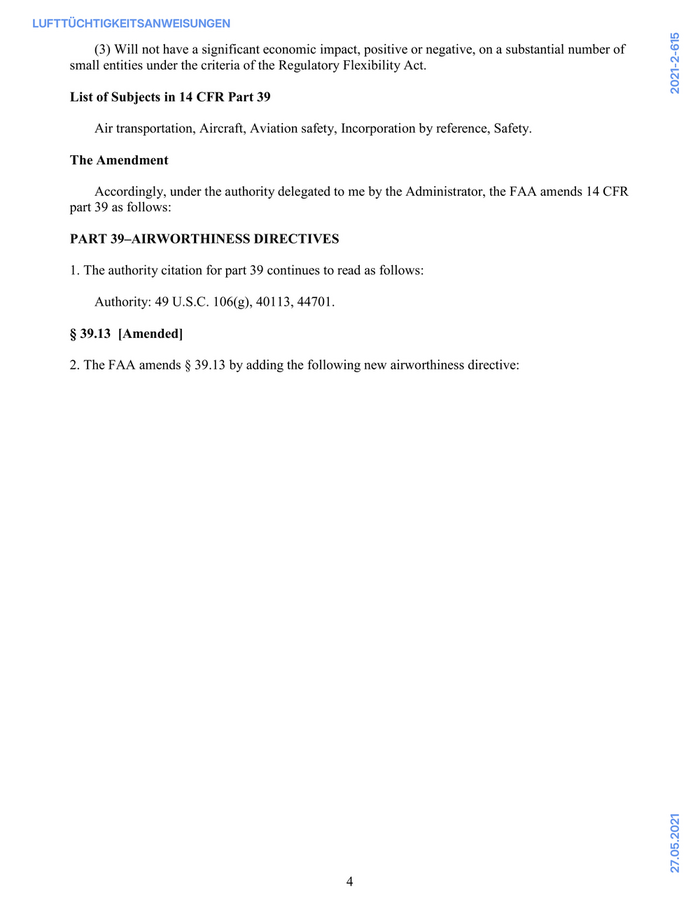

(3) Will not have a significant economic impact, positive or negative, on a substantial number of
small entities under the criteria of the Regulatory Flexibility Act.
List of Subjects in 14 CFR Part 39
Air transportation, Aircraft, Aviation safety, Incorporation by reference, Safety.
The Amendment
Accordingly, under the authority delegated to me by the Administrator, the FAA amends 14 CFR
part 39 as follows:
PART 39–AIRWORTHINESS DIRECTIVES
1. The authority citation for part 39 continues to read as follows:
Authority: 49 U.S.C. 106(g), 40113, 44701.
§ 39.13 [Amended]
2. The FAA amends § 39.13 by adding the following new airworthiness directive:
27.05.2021
4
LUFTTÜCHTIGKEITSANWEISUNGEN
2021-2-615

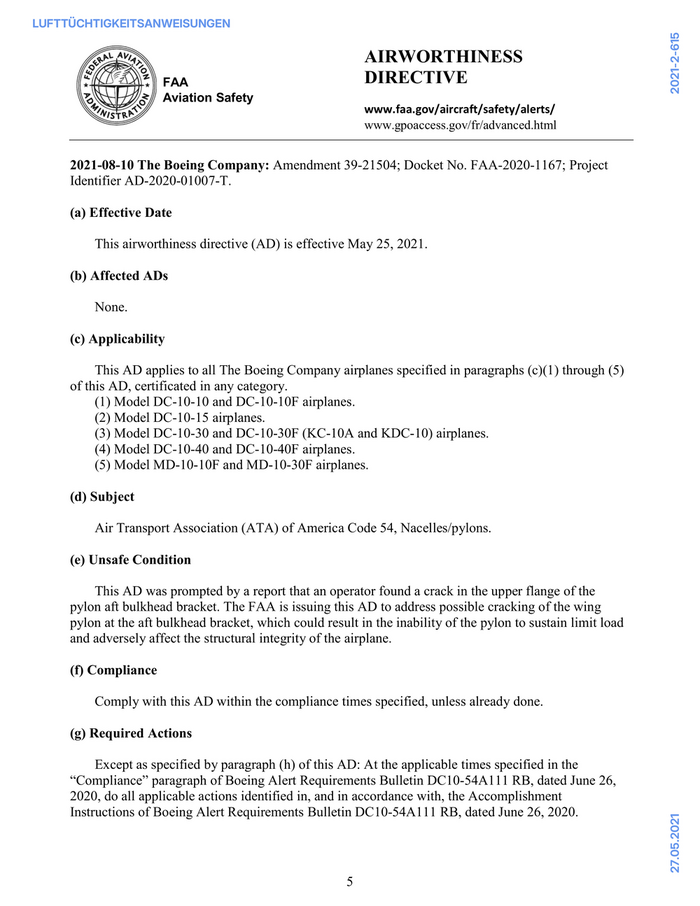

AIRWORTHINESS
FAA DIRECTIVE
Aviation Safety
www.faa.gov/aircraft/safety/alerts/
www.gpoaccess.gov/fr/advanced.html
2021-08-10 The Boeing Company: Amendment 39-21504; Docket No. FAA-2020-1167; Project
Identifier AD-2020-01007-T.
(a) Effective Date
This airworthiness directive (AD) is effective May 25, 2021.
(b) Affected ADs
None.
(c) Applicability
This AD applies to all The Boeing Company airplanes specified in paragraphs (c)(1) through (5)
of this AD, certificated in any category.
(1) Model DC-10-10 and DC-10-10F airplanes.
(2) Model DC-10-15 airplanes.
(3) Model DC-10-30 and DC-10-30F (KC-10A and KDC-10) airplanes.
(4) Model DC-10-40 and DC-10-40F airplanes.
(5) Model MD-10-10F and MD-10-30F airplanes.
(d) Subject
Air Transport Association (ATA) of America Code 54, Nacelles/pylons.
(e) Unsafe Condition
This AD was prompted by a report that an operator found a crack in the upper flange of the
pylon aft bulkhead bracket. The FAA is issuing this AD to address possible cracking of the wing
pylon at the aft bulkhead bracket, which could result in the inability of the pylon to sustain limit load
and adversely affect the structural integrity of the airplane.
(f) Compliance
Comply with this AD within the compliance times specified, unless already done.
(g) Required Actions
Except as specified by paragraph (h) of this AD: At the applicable times specified in the
“Compliance” paragraph of Boeing Alert Requirements Bulletin DC10-54A111 RB, dated June 26,
2020, do all applicable actions identified in, and in accordance with, the Accomplishment
Instructions of Boeing Alert Requirements Bulletin DC10-54A111 RB, dated June 26, 2020.
27.05.2021
5
LUFTTÜCHTIGKEITSANWEISUNGEN
2021-2-615

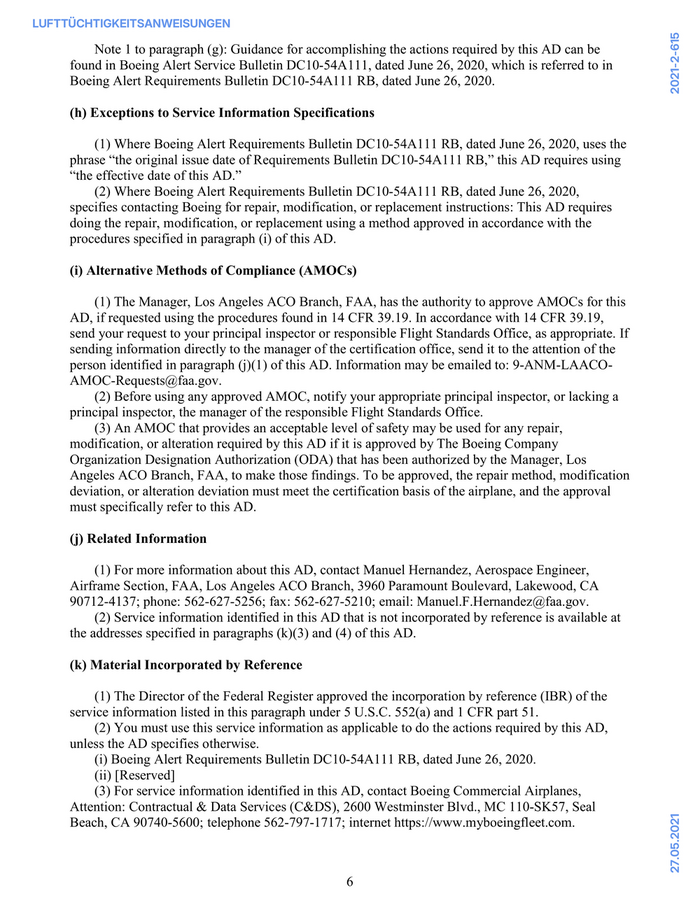

Note 1 to paragraph (g): Guidance for accomplishing the actions required by this AD can be
found in Boeing Alert Service Bulletin DC10-54A111, dated June 26, 2020, which is referred to in
Boeing Alert Requirements Bulletin DC10-54A111 RB, dated June 26, 2020.
(h) Exceptions to Service Information Specifications
(1) Where Boeing Alert Requirements Bulletin DC10-54A111 RB, dated June 26, 2020, uses the
phrase “the original issue date of Requirements Bulletin DC10-54A111 RB,” this AD requires using
“the effective date of this AD.”
(2) Where Boeing Alert Requirements Bulletin DC10-54A111 RB, dated June 26, 2020,
specifies contacting Boeing for repair, modification, or replacement instructions: This AD requires
doing the repair, modification, or replacement using a method approved in accordance with the
procedures specified in paragraph (i) of this AD.
(i) Alternative Methods of Compliance (AMOCs)
(1) The Manager, Los Angeles ACO Branch, FAA, has the authority to approve AMOCs for this
AD, if requested using the procedures found in 14 CFR 39.19. In accordance with 14 CFR 39.19,
send your request to your principal inspector or responsible Flight Standards Office, as appropriate. If
sending information directly to the manager of the certification office, send it to the attention of the
person identified in paragraph (j)(1) of this AD. Information may be emailed to: 9-ANM-LAACO-
AMOC-Requests@faa.gov.
(2) Before using any approved AMOC, notify your appropriate principal inspector, or lacking a
principal inspector, the manager of the responsible Flight Standards Office.
(3) An AMOC that provides an acceptable level of safety may be used for any repair,
modification, or alteration required by this AD if it is approved by The Boeing Company
Organization Designation Authorization (ODA) that has been authorized by the Manager, Los
Angeles ACO Branch, FAA, to make those findings. To be approved, the repair method, modification
deviation, or alteration deviation must meet the certification basis of the airplane, and the approval
must specifically refer to this AD.
(j) Related Information
(1) For more information about this AD, contact Manuel Hernandez, Aerospace Engineer,
Airframe Section, FAA, Los Angeles ACO Branch, 3960 Paramount Boulevard, Lakewood, CA
90712-4137; phone: 562-627-5256; fax: 562-627-5210; email: Manuel.F.Hernandez@faa.gov.
(2) Service information identified in this AD that is not incorporated by reference is available at
the addresses specified in paragraphs (k)(3) and (4) of this AD.
(k) Material Incorporated by Reference
(1) The Director of the Federal Register approved the incorporation by reference (IBR) of the
service information listed in this paragraph under 5 U.S.C. 552(a) and 1 CFR part 51.
(2) You must use this service information as applicable to do the actions required by this AD,
unless the AD specifies otherwise.
(i) Boeing Alert Requirements Bulletin DC10-54A111 RB, dated June 26, 2020.
(ii) [Reserved]
(3) For service information identified in this AD, contact Boeing Commercial Airplanes,
Attention: Contractual & Data Services (C&DS), 2600 Westminster Blvd., MC 110-SK57, Seal
Beach, CA 90740-5600; telephone 562-797-1717; internet https://www.myboeingfleet.com.
27.05.2021
6
LUFTTÜCHTIGKEITSANWEISUNGEN
2021-2-615

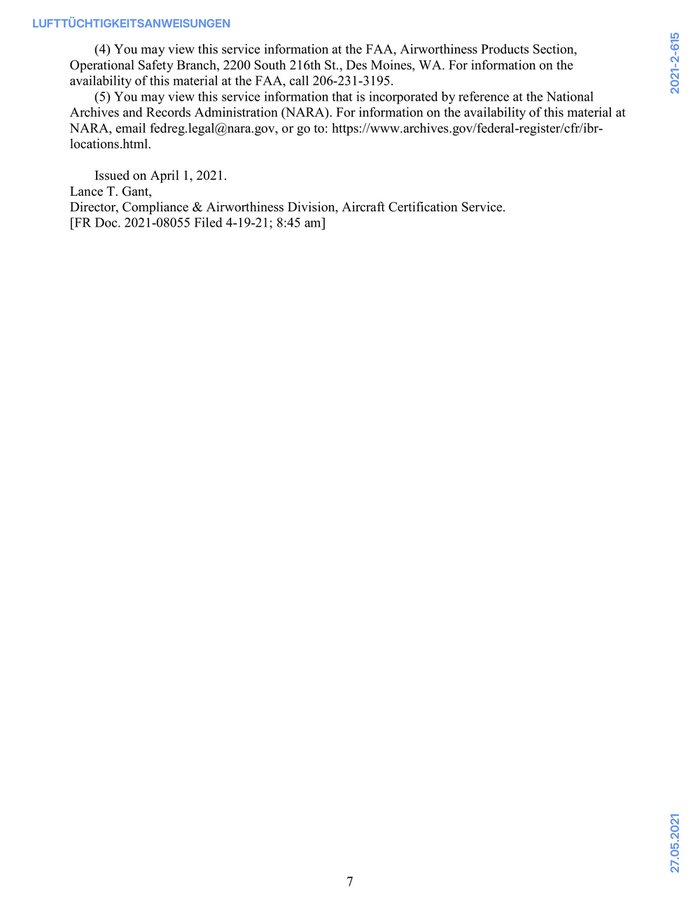

(4) You may view this service information at the FAA, Airworthiness Products Section,
Operational Safety Branch, 2200 South 216th St., Des Moines, WA. For information on the
availability of this material at the FAA, call 206-231-3195.
(5) You may view this service information that is incorporated by reference at the National
Archives and Records Administration (NARA). For information on the availability of this material at
NARA, email fedreg.legal@nara.gov, or go to: https://www.archives.gov/federal-register/cfr/ibr-
locations.html.
Issued on April 1, 2021.
Lance T. Gant,
Director, Compliance & Airworthiness Division, Aircraft Certification Service.
[FR Doc. 2021-08055 Filed 4-19-21; 8:45 am]
27.05.2021
7
