Nachrichten für Luftfahrer 2021 Teil 2 (weicht ggf. von Druckversion ab)
LUFTTÜCHTIGKEITSANWEISUNGEN
2021-2-652
EASA AD No.: 2015-0226R6

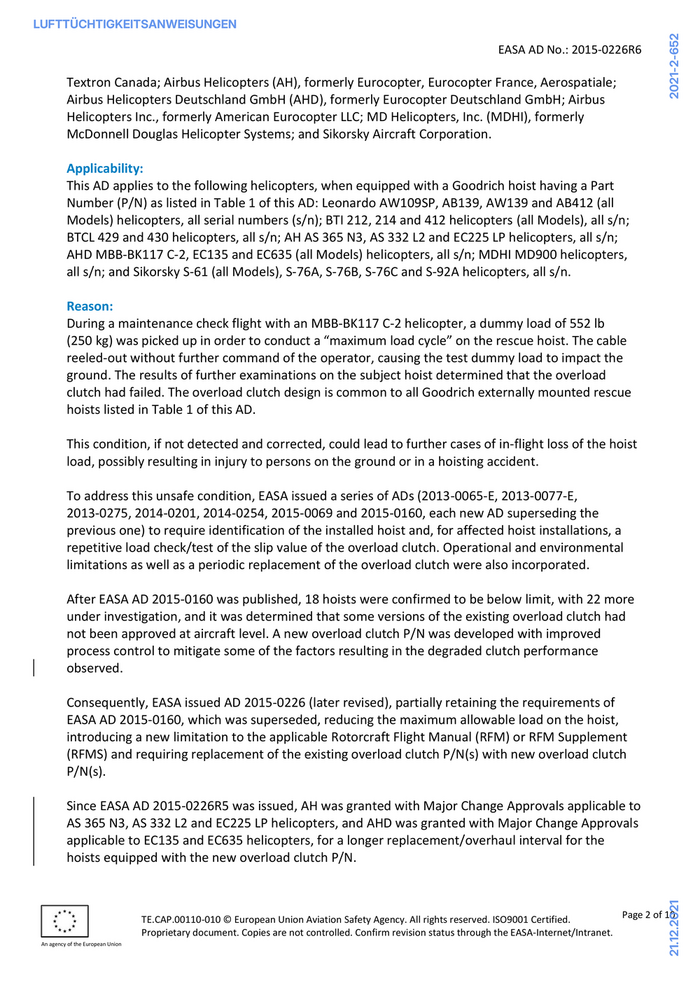

Textron Canada; Airbus Helicopters (AH), formerly Eurocopter, Eurocopter France, Aerospatiale;
Airbus Helicopters Deutschland GmbH (AHD), formerly Eurocopter Deutschland GmbH; Airbus
Helicopters Inc., formerly American Eurocopter LLC; MD Helicopters, Inc. (MDHI), formerly
McDonnell Douglas Helicopter Systems; and Sikorsky Aircraft Corporation.
Applicability:
This AD applies to the following helicopters, when equipped with a Goodrich hoist having a Part
Number (P/N) as listed in Table 1 of this AD: Leonardo AW109SP, AB139, AW139 and AB412 (all
Models) helicopters, all serial numbers (s/n); BTI 212, 214 and 412 helicopters (all Models), all s/n;
BTCL 429 and 430 helicopters, all s/n; AH AS 365 N3, AS 332 L2 and EC225 LP helicopters, all s/n;
AHD MBB-BK117 C-2, EC135 and EC635 (all Models) helicopters, all s/n; MDHI MD900 helicopters,
all s/n; and Sikorsky S-61 (all Models), S-76A, S-76B, S-76C and S-92A helicopters, all s/n.
Reason:
During a maintenance check flight with an MBB-BK117 C-2 helicopter, a dummy load of 552 lb
(250 kg) was picked up in order to conduct a “maximum load cycle” on the rescue hoist. The cable
reeled-out without further command of the operator, causing the test dummy load to impact the
ground. The results of further examinations on the subject hoist determined that the overload
clutch had failed. The overload clutch design is common to all Goodrich externally mounted rescue
hoists listed in Table 1 of this AD.
This condition, if not detected and corrected, could lead to further cases of in-flight loss of the hoist
load, possibly resulting in injury to persons on the ground or in a hoisting accident.
To address this unsafe condition, EASA issued a series of ADs (2013-0065-E, 2013-0077-E,
2013-0275, 2014-0201, 2014-0254, 2015-0069 and 2015-0160, each new AD superseding the
previous one) to require identification of the installed hoist and, for affected hoist installations, a
repetitive load check/test of the slip value of the overload clutch. Operational and environmental
limitations as well as a periodic replacement of the overload clutch were also incorporated.
After EASA AD 2015-0160 was published, 18 hoists were confirmed to be below limit, with 22 more
under investigation, and it was determined that some versions of the existing overload clutch had
not been approved at aircraft level. A new overload clutch P/N was developed with improved
process control to mitigate some of the factors resulting in the degraded clutch performance
observed.
Consequently, EASA issued AD 2015-0226 (later revised), partially retaining the requirements of
EASA AD 2015-0160, which was superseded, reducing the maximum allowable load on the hoist,
introducing a new limitation to the applicable Rotorcraft Flight Manual (RFM) or RFM Supplement
(RFMS) and requiring replacement of the existing overload clutch P/N(s) with new overload clutch
P/N(s).
Since EASA AD 2015-0226R5 was issued, AH was granted with Major Change Approvals applicable to
AS 365 N3, AS 332 L2 and EC225 LP helicopters, and AHD was granted with Major Change Approvals
applicable to EC135 and EC635 helicopters, for a longer replacement/overhaul interval for the
hoists equipped with the new overload clutch P/N.
21.12.2021
TE.CAP.00110-010 © European Union Aviation Safety Agency. All rights reserved. ISO9001 Certified. Page 2 of 10
Proprietary document. Copies are not controlled. Confirm revision status through the EASA-Internet/Intranet.
An agency of the European Union
LUFTTÜCHTIGKEITSANWEISUNGEN
2021-2-652
EASA AD No.: 2015-0226R6

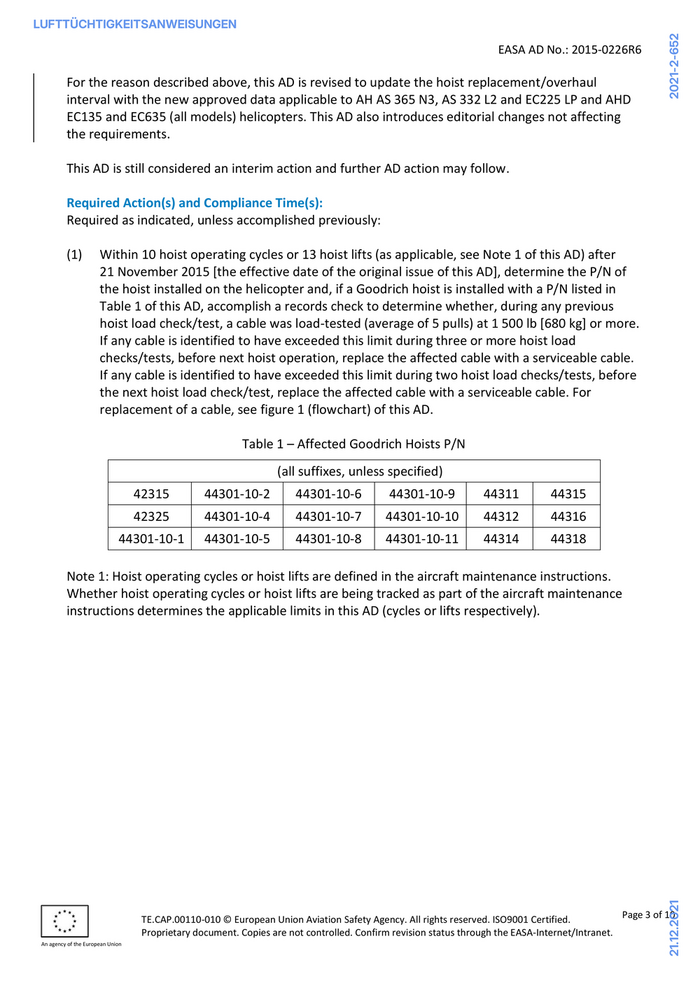

For the reason described above, this AD is revised to update the hoist replacement/overhaul
interval with the new approved data applicable to AH AS 365 N3, AS 332 L2 and EC225 LP and AHD
EC135 and EC635 (all models) helicopters. This AD also introduces editorial changes not affecting
the requirements.
This AD is still considered an interim action and further AD action may follow.
Required Action(s) and Compliance Time(s):
Required as indicated, unless accomplished previously:
(1) Within 10 hoist operating cycles or 13 hoist lifts (as applicable, see Note 1 of this AD) after
21 November 2015 [the effective date of the original issue of this AD], determine the P/N of
the hoist installed on the helicopter and, if a Goodrich hoist is installed with a P/N listed in
Table 1 of this AD, accomplish a records check to determine whether, during any previous
hoist load check/test, a cable was load-tested (average of 5 pulls) at 1 500 lb [680 kg] or more.
If any cable is identified to have exceeded this limit during three or more hoist load
checks/tests, before next hoist operation, replace the affected cable with a serviceable cable.
If any cable is identified to have exceeded this limit during two hoist load checks/tests, before
the next hoist load check/test, replace the affected cable with a serviceable cable. For
replacement of a cable, see figure 1 (flowchart) of this AD.
Table 1 – Affected Goodrich Hoists P/N
(all suffixes, unless specified)
42315 44301-10-2 44301-10-6 44301-10-9 44311 44315
42325 44301-10-4 44301-10-7 44301-10-10 44312 44316
44301-10-1 44301-10-5 44301-10-8 44301-10-11 44314 44318
Note 1: Hoist operating cycles or hoist lifts are defined in the aircraft maintenance instructions.
Whether hoist operating cycles or hoist lifts are being tracked as part of the aircraft maintenance
instructions determines the applicable limits in this AD (cycles or lifts respectively).
21.12.2021
TE.CAP.00110-010 © European Union Aviation Safety Agency. All rights reserved. ISO9001 Certified. Page 3 of 10
Proprietary document. Copies are not controlled. Confirm revision status through the EASA-Internet/Intranet.
An agency of the European Union
LUFTTÜCHTIGKEITSANWEISUNGEN
2021-2-652
EASA AD No.: 2015-0226R6
Figure 1
(2) Within 30 days after 21 November 2015 [the effective date of the original issue of this AD],
accomplish an initial hoist load check/test in accordance with approved instructions from the
helicopter design approval holder, or from the hoist installation design change approval
holder (STC holder), as applicable to installation and helicopter type/model.
(3) Within the time interval, or hoist operating cycles/hoist lifts specified in the approved
instructions from the applicable design (change) approval holder, whichever occurs first after
the initial load check as required by paragraph (2) of this AD, and, thereafter, at intervals not
to exceed the values (calendar time, or hoist operating cycles/hoist lifts, whichever occurs
first) as specified in those same instructions, as applicable, accomplish a hoist load check/test
(see Note 1 of this AD) in accordance with the instructions for on-going testing.
(4) If, during any hoist load check/test as required by paragraph (2) or (3) of this AD, as
applicable, the hoist fails the test, deactivate the hoist and, before next hoist operation,
replace the hoist with a serviceable hoist, as defined in Table 2 of this AD.
21.12.2021
TE.CAP.00110-010 © European Union Aviation Safety Agency. All rights reserved. ISO9001 Certified. Page 4 of 10
Proprietary document. Copies are not controlled. Confirm revision status through the EASA-Internet/Intranet.
An agency of the European Union
LUFTTÜCHTIGKEITSANWEISUNGEN
2021-2-652
EASA AD No.: 2015-0226R6

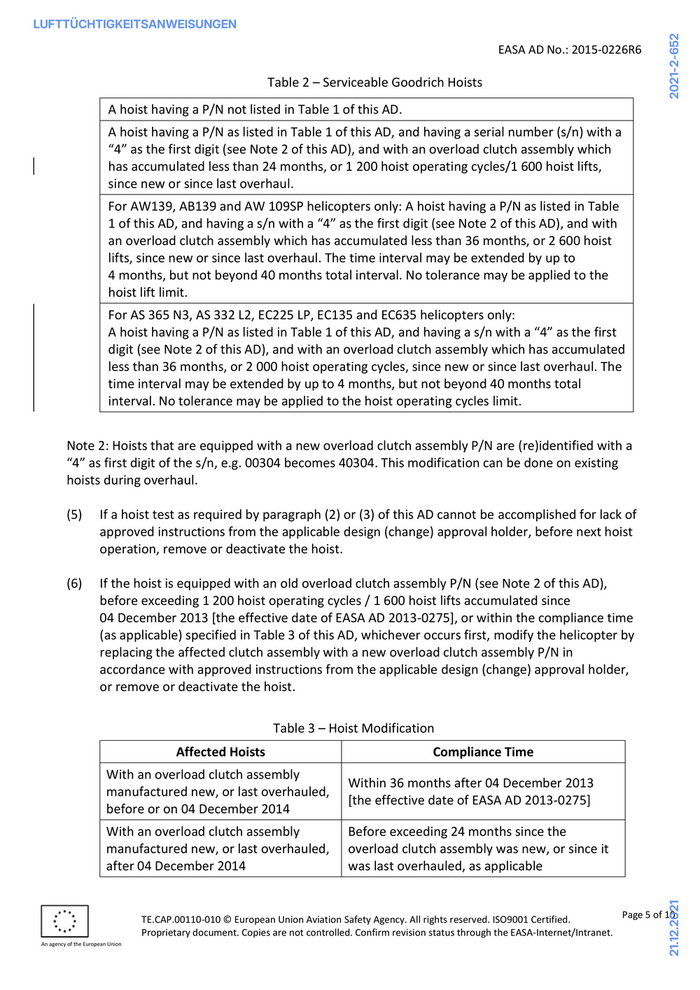

Table 2 – Serviceable Goodrich Hoists
A hoist having a P/N not listed in Table 1 of this AD.
A hoist having a P/N as listed in Table 1 of this AD, and having a serial number (s/n) with a
“4” as the first digit (see Note 2 of this AD), and with an overload clutch assembly which
has accumulated less than 24 months, or 1 200 hoist operating cycles/1 600 hoist lifts,
since new or since last overhaul.
For AW139, AB139 and AW 109SP helicopters only: A hoist having a P/N as listed in Table
1 of this AD, and having a s/n with a “4” as the first digit (see Note 2 of this AD), and with
an overload clutch assembly which has accumulated less than 36 months, or 2 600 hoist
lifts, since new or since last overhaul. The time interval may be extended by up to
4 months, but not beyond 40 months total interval. No tolerance may be applied to the
hoist lift limit.
For AS 365 N3, AS 332 L2, EC225 LP, EC135 and EC635 helicopters only:
A hoist having a P/N as listed in Table 1 of this AD, and having a s/n with a “4” as the first
digit (see Note 2 of this AD), and with an overload clutch assembly which has accumulated
less than 36 months, or 2 000 hoist operating cycles, since new or since last overhaul. The
time interval may be extended by up to 4 months, but not beyond 40 months total
interval. No tolerance may be applied to the hoist operating cycles limit.
Note 2: Hoists that are equipped with a new overload clutch assembly P/N are (re)identified with a
“4” as first digit of the s/n, e.g. 00304 becomes 40304. This modification can be done on existing
hoists during overhaul.
(5) If a hoist test as required by paragraph (2) or (3) of this AD cannot be accomplished for lack of
approved instructions from the applicable design (change) approval holder, before next hoist
operation, remove or deactivate the hoist.
(6) If the hoist is equipped with an old overload clutch assembly P/N (see Note 2 of this AD),
before exceeding 1 200 hoist operating cycles / 1 600 hoist lifts accumulated since
04 December 2013 [the effective date of EASA AD 2013-0275], or within the compliance time
(as applicable) specified in Table 3 of this AD, whichever occurs first, modify the helicopter by
replacing the affected clutch assembly with a new overload clutch assembly P/N in
accordance with approved instructions from the applicable design (change) approval holder,
or remove or deactivate the hoist.
Table 3 – Hoist Modification
Affected Hoists Compliance Time
With an overload clutch assembly
Within 36 months after 04 December 2013
manufactured new, or last overhauled,
[the effective date of EASA AD 2013-0275]
before or on 04 December 2014
With an overload clutch assembly Before exceeding 24 months since the
manufactured new, or last overhauled, overload clutch assembly was new, or since it
after 04 December 2014 was last overhauled, as applicable
21.12.2021
TE.CAP.00110-010 © European Union Aviation Safety Agency. All rights reserved. ISO9001 Certified. Page 5 of 10
Proprietary document. Copies are not controlled. Confirm revision status through the EASA-Internet/Intranet.
An agency of the European Union
LUFTTÜCHTIGKEITSANWEISUNGEN
2021-2-652
EASA AD No.: 2015-0226R6

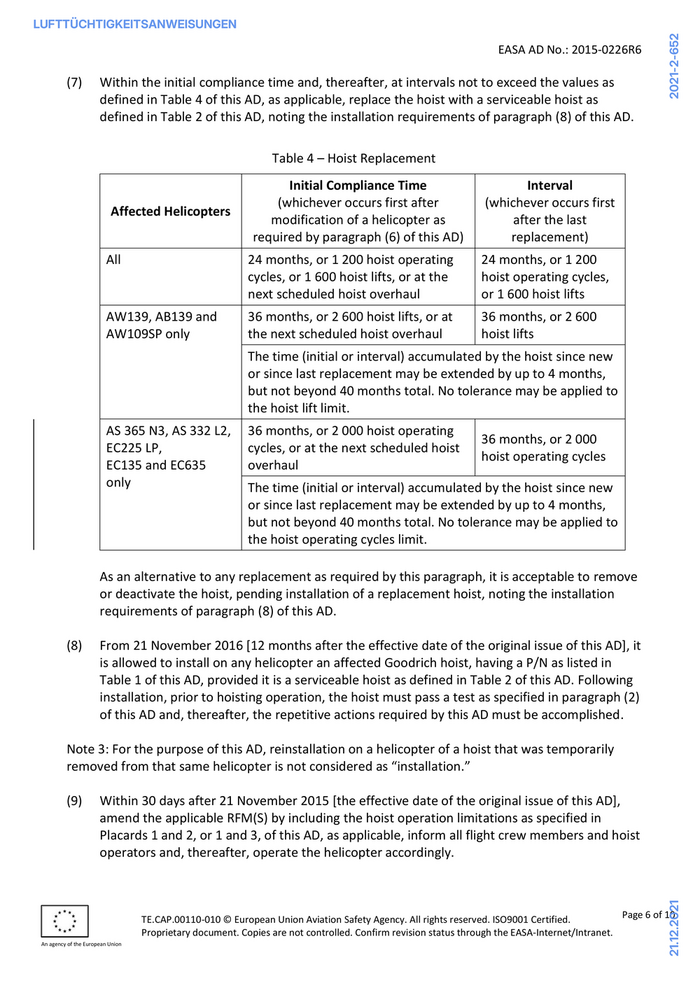

(7) Within the initial compliance time and, thereafter, at intervals not to exceed the values as
defined in Table 4 of this AD, as applicable, replace the hoist with a serviceable hoist as
defined in Table 2 of this AD, noting the installation requirements of paragraph (8) of this AD.
Table 4 – Hoist Replacement
Initial Compliance Time Interval
(whichever occurs first after (whichever occurs first
Affected Helicopters
modification of a helicopter as after the last
required by paragraph (6) of this AD) replacement)
All 24 months, or 1 200 hoist operating 24 months, or 1 200
cycles, or 1 600 hoist lifts, or at the hoist operating cycles,
next scheduled hoist overhaul or 1 600 hoist lifts
AW139, AB139 and 36 months, or 2 600 hoist lifts, or at 36 months, or 2 600
AW109SP only the next scheduled hoist overhaul hoist lifts
The time (initial or interval) accumulated by the hoist since new
or since last replacement may be extended by up to 4 months,
but not beyond 40 months total. No tolerance may be applied to
the hoist lift limit.
AS 365 N3, AS 332 L2, 36 months, or 2 000 hoist operating
36 months, or 2 000
EC225 LP, cycles, or at the next scheduled hoist
hoist operating cycles
EC135 and EC635 overhaul
only The time (initial or interval) accumulated by the hoist since new
or since last replacement may be extended by up to 4 months,
but not beyond 40 months total. No tolerance may be applied to
the hoist operating cycles limit.
As an alternative to any replacement as required by this paragraph, it is acceptable to remove
or deactivate the hoist, pending installation of a replacement hoist, noting the installation
requirements of paragraph (8) of this AD.
(8) From 21 November 2016 [12 months after the effective date of the original issue of this AD], it
is allowed to install on any helicopter an affected Goodrich hoist, having a P/N as listed in
Table 1 of this AD, provided it is a serviceable hoist as defined in Table 2 of this AD. Following
installation, prior to hoisting operation, the hoist must pass a test as specified in paragraph (2)
of this AD and, thereafter, the repetitive actions required by this AD must be accomplished.
Note 3: For the purpose of this AD, reinstallation on a helicopter of a hoist that was temporarily
removed from that same helicopter is not considered as “installation.”
(9) Within 30 days after 21 November 2015 [the effective date of the original issue of this AD],
amend the applicable RFM(S) by including the hoist operation limitations as specified in
Placards 1 and 2, or 1 and 3, of this AD, as applicable, inform all flight crew members and hoist
operators and, thereafter, operate the helicopter accordingly.
21.12.2021
TE.CAP.00110-010 © European Union Aviation Safety Agency. All rights reserved. ISO9001 Certified. Page 6 of 10
Proprietary document. Copies are not controlled. Confirm revision status through the EASA-Internet/Intranet.
An agency of the European Union
LUFTTÜCHTIGKEITSANWEISUNGEN
2021-2-652
EASA AD No.: 2015-0226R6

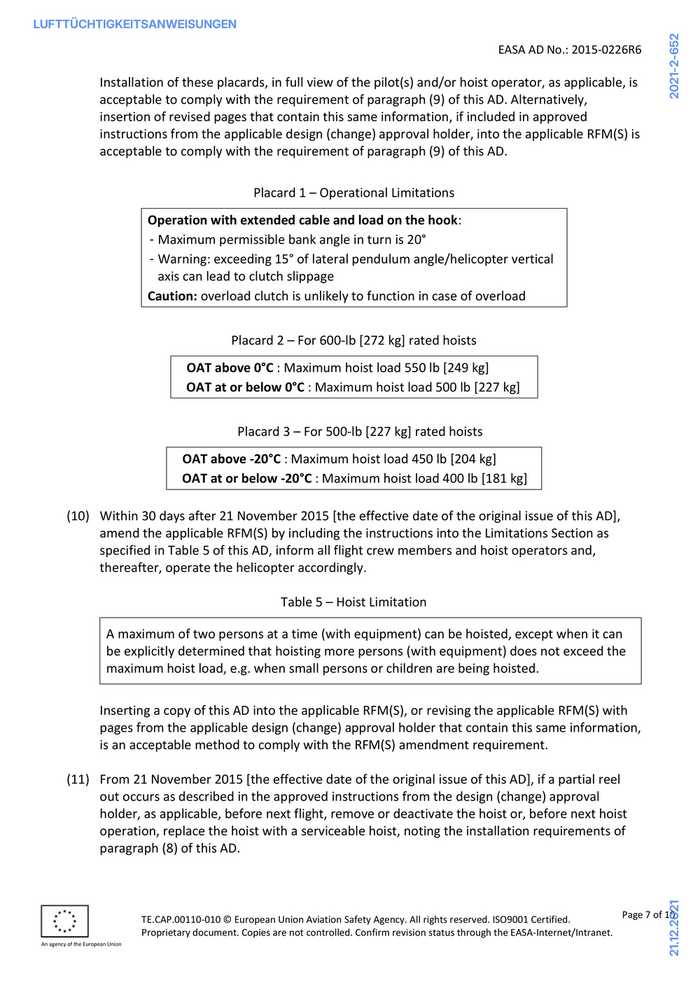

Installation of these placards, in full view of the pilot(s) and/or hoist operator, as applicable, is
acceptable to comply with the requirement of paragraph (9) of this AD. Alternatively,
insertion of revised pages that contain this same information, if included in approved
instructions from the applicable design (change) approval holder, into the applicable RFM(S) is
acceptable to comply with the requirement of paragraph (9) of this AD.
Placard 1 – Operational Limitations
Operation with extended cable and load on the hook:
- Maximum permissible bank angle in turn is 20°
- Warning: exceeding 15° of lateral pendulum angle/helicopter vertical
axis can lead to clutch slippage
Caution: overload clutch is unlikely to function in case of overload
Placard 2 – For 600-lb [272 kg] rated hoists
OAT above 0°C : Maximum hoist load 550 lb [249 kg]
OAT at or below 0°C : Maximum hoist load 500 lb [227 kg]
Placard 3 – For 500-lb [227 kg] rated hoists
OAT above -20°C : Maximum hoist load 450 lb [204 kg]
OAT at or below -20°C : Maximum hoist load 400 lb [181 kg]
(10) Within 30 days after 21 November 2015 [the effective date of the original issue of this AD],
amend the applicable RFM(S) by including the instructions into the Limitations Section as
specified in Table 5 of this AD, inform all flight crew members and hoist operators and,
thereafter, operate the helicopter accordingly.
Table 5 – Hoist Limitation
A maximum of two persons at a time (with equipment) can be hoisted, except when it can
be explicitly determined that hoisting more persons (with equipment) does not exceed the
maximum hoist load, e.g. when small persons or children are being hoisted.
Inserting a copy of this AD into the applicable RFM(S), or revising the applicable RFM(S) with
pages from the applicable design (change) approval holder that contain this same information,
is an acceptable method to comply with the RFM(S) amendment requirement.
(11) From 21 November 2015 [the effective date of the original issue of this AD], if a partial reel
out occurs as described in the approved instructions from the design (change) approval
holder, as applicable, before next flight, remove or deactivate the hoist or, before next hoist
operation, replace the hoist with a serviceable hoist, noting the installation requirements of
paragraph (8) of this AD.
21.12.2021
TE.CAP.00110-010 © European Union Aviation Safety Agency. All rights reserved. ISO9001 Certified. Page 7 of 10
Proprietary document. Copies are not controlled. Confirm revision status through the EASA-Internet/Intranet.
An agency of the European Union
LUFTTÜCHTIGKEITSANWEISUNGEN
2021-2-652
EASA AD No.: 2015-0226R6

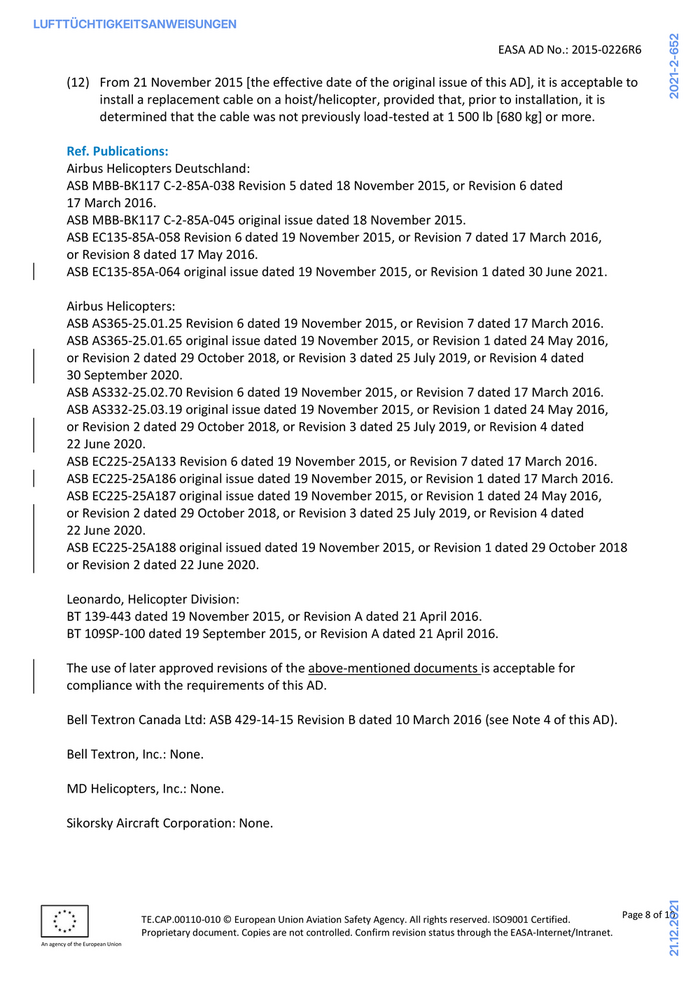

(12) From 21 November 2015 [the effective date of the original issue of this AD], it is acceptable to
install a replacement cable on a hoist/helicopter, provided that, prior to installation, it is
determined that the cable was not previously load-tested at 1 500 lb [680 kg] or more.
Ref. Publications:
Airbus Helicopters Deutschland:
ASB MBB-BK117 C-2-85A-038 Revision 5 dated 18 November 2015, or Revision 6 dated
17 March 2016.
ASB MBB‐BK117 C‐2‐85A‐045 original issue dated 18 November 2015.
ASB EC135-85A-058 Revision 6 dated 19 November 2015, or Revision 7 dated 17 March 2016,
or Revision 8 dated 17 May 2016.
ASB EC135-85A‐064 original issue dated 19 November 2015, or Revision 1 dated 30 June 2021.
Airbus Helicopters:
ASB AS365-25.01.25 Revision 6 dated 19 November 2015, or Revision 7 dated 17 March 2016.
ASB AS365-25.01.65 original issue dated 19 November 2015, or Revision 1 dated 24 May 2016,
or Revision 2 dated 29 October 2018, or Revision 3 dated 25 July 2019, or Revision 4 dated
30 September 2020.
ASB AS332-25.02.70 Revision 6 dated 19 November 2015, or Revision 7 dated 17 March 2016.
ASB AS332-25.03.19 original issue dated 19 November 2015, or Revision 1 dated 24 May 2016,
or Revision 2 dated 29 October 2018, or Revision 3 dated 25 July 2019, or Revision 4 dated
22 June 2020.
ASB EC225-25A133 Revision 6 dated 19 November 2015, or Revision 7 dated 17 March 2016.
ASB EC225-25A186 original issue dated 19 November 2015, or Revision 1 dated 17 March 2016.
ASB EC225-25A187 original issue dated 19 November 2015, or Revision 1 dated 24 May 2016,
or Revision 2 dated 29 October 2018, or Revision 3 dated 25 July 2019, or Revision 4 dated
22 June 2020.
ASB EC225-25A188 original issued dated 19 November 2015, or Revision 1 dated 29 October 2018
or Revision 2 dated 22 June 2020.
Leonardo, Helicopter Division:
BT 139-443 dated 19 November 2015, or Revision A dated 21 April 2016.
BT 109SP-100 dated 19 September 2015, or Revision A dated 21 April 2016.
The use of later approved revisions of the above-mentioned documents is acceptable for
compliance with the requirements of this AD.
Bell Textron Canada Ltd: ASB 429-14-15 Revision B dated 10 March 2016 (see Note 4 of this AD).
Bell Textron, Inc.: None.
MD Helicopters, Inc.: None.
Sikorsky Aircraft Corporation: None.
21.12.2021
TE.CAP.00110-010 © European Union Aviation Safety Agency. All rights reserved. ISO9001 Certified. Page 8 of 10
Proprietary document. Copies are not controlled. Confirm revision status through the EASA-Internet/Intranet.
An agency of the European Union
LUFTTÜCHTIGKEITSANWEISUNGEN
2021-2-652
EASA AD No.: 2015-0226R6

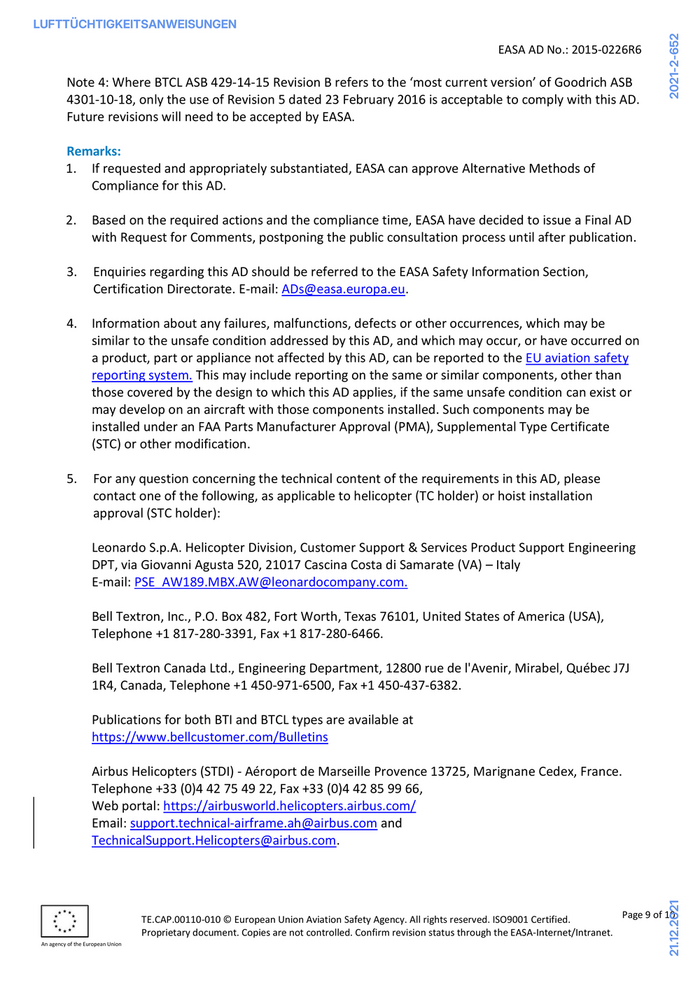

Note 4: Where BTCL ASB 429-14-15 Revision B refers to the ‘most current version’ of Goodrich ASB
4301-10-18, only the use of Revision 5 dated 23 February 2016 is acceptable to comply with this AD.
Future revisions will need to be accepted by EASA.
Remarks:
1. If requested and appropriately substantiated, EASA can approve Alternative Methods of
Compliance for this AD.
2. Based on the required actions and the compliance time, EASA have decided to issue a Final AD
with Request for Comments, postponing the public consultation process until after publication.
3. Enquiries regarding this AD should be referred to the EASA Safety Information Section,
Certification Directorate. E-mail: ADs@easa.europa.eu.
4. Information about any failures, malfunctions, defects or other occurrences, which may be
similar to the unsafe condition addressed by this AD, and which may occur, or have occurred on
a product, part or appliance not affected by this AD, can be reported to the EU aviation safety
reporting system. This may include reporting on the same or similar components, other than
those covered by the design to which this AD applies, if the same unsafe condition can exist or
may develop on an aircraft with those components installed. Such components may be
installed under an FAA Parts Manufacturer Approval (PMA), Supplemental Type Certificate
(STC) or other modification.
5. For any question concerning the technical content of the requirements in this AD, please
contact one of the following, as applicable to helicopter (TC holder) or hoist installation
approval (STC holder):
Leonardo S.p.A. Helicopter Division, Customer Support & Services Product Support Engineering
DPT, via Giovanni Agusta 520, 21017 Cascina Costa di Samarate (VA) – Italy
E-mail: PSE_AW189.MBX.AW@leonardocompany.com.
Bell Textron, Inc., P.O. Box 482, Fort Worth, Texas 76101, United States of America (USA),
Telephone +1 817-280-3391, Fax +1 817-280-6466.
Bell Textron Canada Ltd., Engineering Department, 12800 rue de l'Avenir, Mirabel, Québec J7J
1R4, Canada, Telephone +1 450-971-6500, Fax +1 450-437-6382.
Publications for both BTI and BTCL types are available at
https://www.bellcustomer.com/Bulletins
Airbus Helicopters (STDI) - Aéroport de Marseille Provence 13725, Marignane Cedex, France.
Telephone +33 (0)4 42 75 49 22, Fax +33 (0)4 42 85 99 66,
Web portal: https://airbusworld.helicopters.airbus.com/
Email: support.technical-airframe.ah@airbus.com and
TechnicalSupport.Helicopters@airbus.com.
21.12.2021
TE.CAP.00110-010 © European Union Aviation Safety Agency. All rights reserved. ISO9001 Certified. Page 9 of 10
Proprietary document. Copies are not controlled. Confirm revision status through the EASA-Internet/Intranet.
An agency of the European Union
LUFTTÜCHTIGKEITSANWEISUNGEN
2021-2-652
EASA AD No.: 2015-0226R6

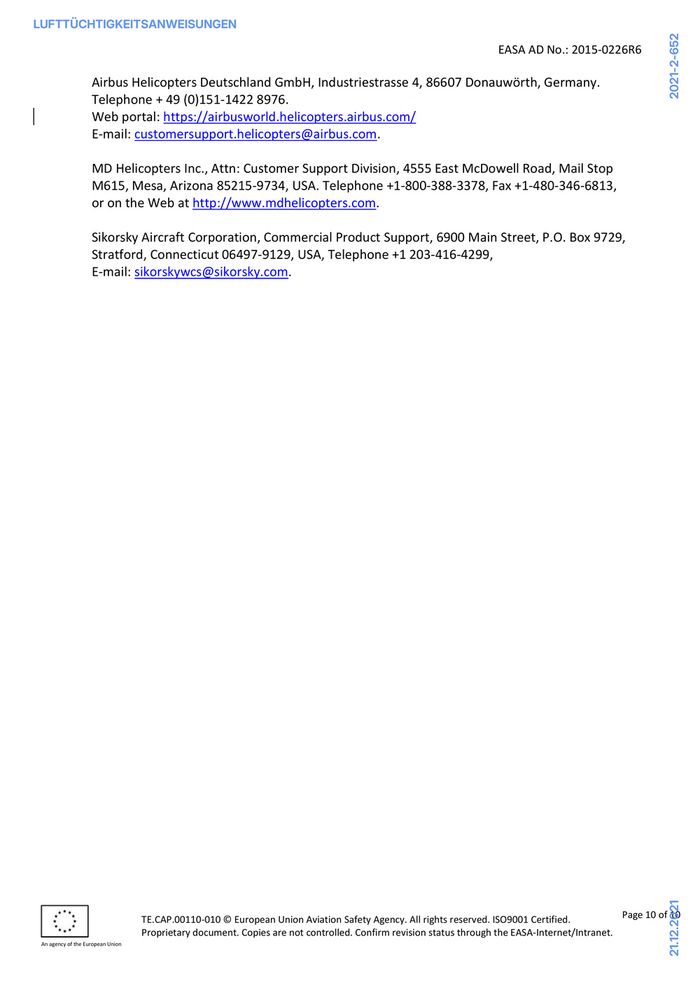

Airbus Helicopters Deutschland GmbH, Industriestrasse 4, 86607 Donauwörth, Germany.
Telephone + 49 (0)151-1422 8976.
Web portal: https://airbusworld.helicopters.airbus.com/
E-mail: customersupport.helicopters@airbus.com.
MD Helicopters Inc., Attn: Customer Support Division, 4555 East McDowell Road, Mail Stop
M615, Mesa, Arizona 85215-9734, USA. Telephone +1-800-388-3378, Fax +1-480-346-6813,
or on the Web at http://www.mdhelicopters.com.
Sikorsky Aircraft Corporation, Commercial Product Support, 6900 Main Street, P.O. Box 9729,
Stratford, Connecticut 06497-9129, USA, Telephone +1 203-416-4299,
E-mail: sikorskywcs@sikorsky.com.
21.12.2021
TE.CAP.00110-010 © European Union Aviation Safety Agency. All rights reserved. ISO9001 Certified. Page 10 of 10
Proprietary document. Copies are not controlled. Confirm revision status through the EASA-Internet/Intranet.
An agency of the European Union
LUFTTÜCHTIGKEITSANWEISUNGEN
2021-2-652

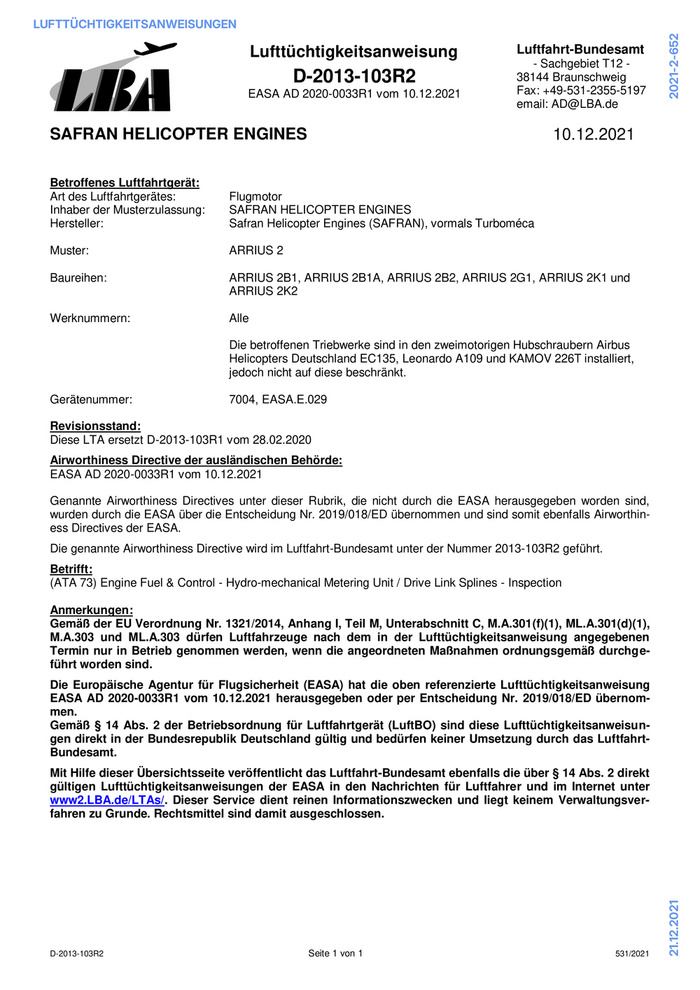

Lufttüchtigkeitsanweisung Luftfahrt-Bundesamt
- Sachgebiet T12 -
D-2013-103R2 38144 Braunschweig
EASA AD 2020-0033R1 vom 10.12.2021 Fax: +49-531-2355-5197
email: AD@LBA.de
SAFRAN HELICOPTER ENGINES 10.12.2021
Betroffenes Luftfahrtgerät:
Art des Luftfahrtgerätes: Flugmotor
Inhaber der Musterzulassung: SAFRAN HELICOPTER ENGINES
Hersteller: Safran Helicopter Engines (SAFRAN), vormals Turboméca
Muster: ARRIUS 2
Baureihen: ARRIUS 2B1, ARRIUS 2B1A, ARRIUS 2B2, ARRIUS 2G1, ARRIUS 2K1 und
ARRIUS 2K2
Werknummern: Alle
Die betroffenen Triebwerke sind in den zweimotorigen Hubschraubern Airbus
Helicopters Deutschland EC135, Leonardo A109 und KAMOV 226T installiert,
jedoch nicht auf diese beschränkt.
Gerätenummer: 7004, EASA.E.029
Revisionsstand:
Diese LTA ersetzt D-2013-103R1 vom 28.02.2020
Airworthiness Directive der ausländischen Behörde:
EASA AD 2020-0033R1 vom 10.12.2021
Genannte Airworthiness Directives unter dieser Rubrik, die nicht durch die EASA herausgegeben worden sind,
wurden durch die EASA über die Entscheidung Nr. 2019/018/ED übernommen und sind somit ebenfalls Airworthin-
ess Directives der EASA.
Die genannte Airworthiness Directive wird im Luftfahrt-Bundesamt unter der Nummer 2013-103R2 geführt.
Betrifft:
(ATA 73) Engine Fuel & Control - Hydro-mechanical Metering Unit / Drive Link Splines - Inspection
Anmerkungen:
Gemäß der EU Verordnung Nr. 1321/2014, Anhang I, Teil M, Unterabschnitt C, M.A.301(f)(1), ML.A.301(d)(1),
M.A.303 und ML.A.303 dürfen Luftfahrzeuge nach dem in der Lufttüchtigkeitsanweisung angegebenen
Termin nur in Betrieb genommen werden, wenn die angeordneten Maßnahmen ordnungsgemäß durchge-
führt worden sind.
Die Europäische Agentur für Flugsicherheit (EASA) hat die oben referenzierte Lufttüchtigkeitsanweisung
EASA AD 2020-0033R1 vom 10.12.2021 herausgegeben oder per Entscheidung Nr. 2019/018/ED übernom-
men.
Gemäß § 14 Abs. 2 der Betriebsordnung für Luftfahrtgerät (LuftBO) sind diese Lufttüchtigkeitsanweisun-
gen direkt in der Bundesrepublik Deutschland gültig und bedürfen keiner Umsetzung durch das Luftfahrt-
Bundesamt.
Mit Hilfe dieser Übersichtsseite veröffentlicht das Luftfahrt-Bundesamt ebenfalls die über § 14 Abs. 2 direkt
gültigen Lufttüchtigkeitsanweisungen der EASA in den Nachrichten für Luftfahrer und im Internet unter
www2.LBA.de/LTAs/. Dieser Service dient reinen Informationszwecken und liegt keinem Verwaltungsver-
fahren zu Grunde. Rechtsmittel sind damit ausgeschlossen.
21.12.2021
D-2013-103R2 Seite 1 von 1 531/2021
