Nachrichten für Luftfahrer 2017 Teil 2 (weicht ggf. von Druckversion ab)

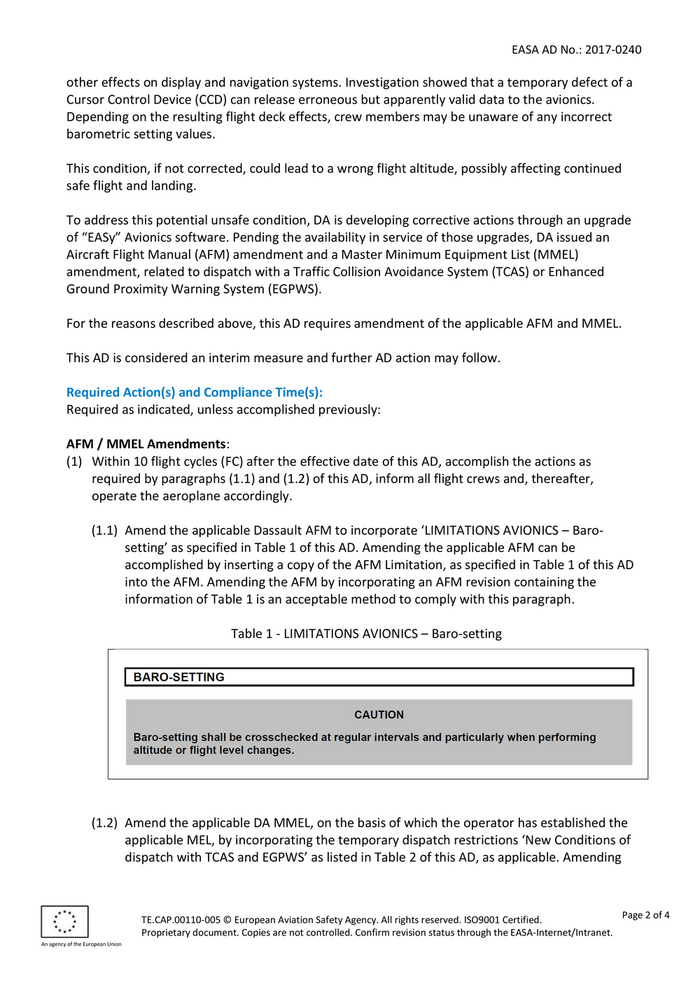

EASA AD No.: 2017-0240
other effects on display and navigation systems. Investigation showed that a temporary defect of a
Cursor Control Device (CCD) can release erroneous but apparently valid data to the avionics.
Depending on the resulting flight deck effects, crew members may be unaware of any incorrect
barometric setting values.
This condition, if not corrected, could lead to a wrong flight altitude, possibly affecting continued
safe flight and landing.
To address this potential unsafe condition, DA is developing corrective actions through an upgrade
of “EASy” Avionics software. Pending the availability in service of those upgrades, DA issued an
Aircraft Flight Manual (AFM) amendment and a Master Minimum Equipment List (MMEL)
amendment, related to dispatch with a Traffic Collision Avoidance System (TCAS) or Enhanced
Ground Proximity Warning System (EGPWS).
For the reasons described above, this AD requires amendment of the applicable AFM and MMEL.
This AD is considered an interim measure and further AD action may follow.
Required Action(s) and Compliance Time(s):
Required as indicated, unless accomplished previously:
AFM / MMEL Amendments:
(1) Within 10 flight cycles (FC) after the effective date of this AD, accomplish the actions as
required by paragraphs (1.1) and (1.2) of this AD, inform all flight crews and, thereafter,
operate the aeroplane accordingly.
(1.1) Amend the applicable Dassault AFM to incorporate ‘LIMITATIONS AVIONICS – Baro-
setting’ as specified in Table 1 of this AD. Amending the applicable AFM can be
accomplished by inserting a copy of the AFM Limitation, as specified in Table 1 of this AD
into the AFM. Amending the AFM by incorporating an AFM revision containing the
information of Table 1 is an acceptable method to comply with this paragraph.
Table 1 - LIMITATIONS AVIONICS – Baro-setting
(1.2) Amend the applicable DA MMEL, on the basis of which the operator has established the
applicable MEL, by incorporating the temporary dispatch restrictions ‘New Conditions of
dispatch with TCAS and EGPWS’ as listed in Table 2 of this AD, as applicable. Amending
TE.CAP.00110-005 © European Aviation Safety Agency. All rights reserved. ISO9001 Certified. Page 2 of 4
Proprietary document. Copies are not controlled. Confirm revision status through the EASA-Internet/Intranet.
An agency of the European Union

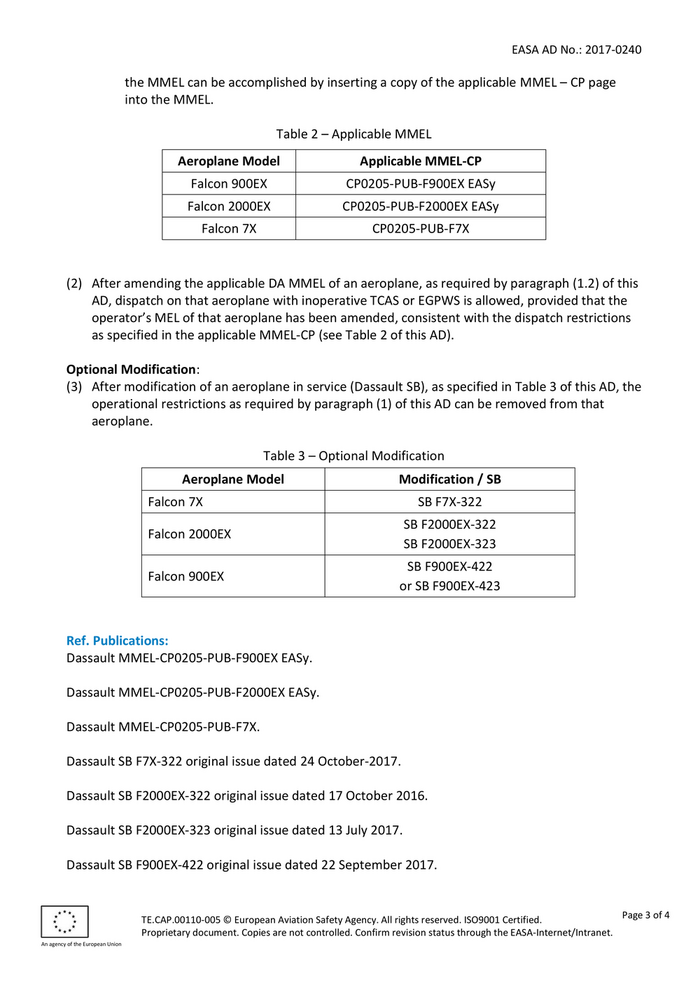

EASA AD No.: 2017-0240
the MMEL can be accomplished by inserting a copy of the applicable MMEL – CP page
into the MMEL.
Table 2 – Applicable MMEL
Aeroplane Model Applicable MMEL-CP
Falcon 900EX CP0205-PUB-F900EX EASy
Falcon 2000EX CP0205-PUB-F2000EX EASy
Falcon 7X CP0205-PUB-F7X
(2) After amending the applicable DA MMEL of an aeroplane, as required by paragraph (1.2) of this
AD, dispatch on that aeroplane with inoperative TCAS or EGPWS is allowed, provided that the
operator’s MEL of that aeroplane has been amended, consistent with the dispatch restrictions
as specified in the applicable MMEL-CP (see Table 2 of this AD).
Optional Modification:
(3) After modification of an aeroplane in service (Dassault SB), as specified in Table 3 of this AD, the
operational restrictions as required by paragraph (1) of this AD can be removed from that
aeroplane.
Table 3 – Optional Modification
Aeroplane Model Modification / SB
Falcon 7X SB F7X-322
SB F2000EX-322
Falcon 2000EX
SB F2000EX-323
SB F900EX-422
Falcon 900EX
or SB F900EX-423
Ref. Publications:
Dassault MMEL-CP0205-PUB-F900EX EASy.
Dassault MMEL-CP0205-PUB-F2000EX EASy.
Dassault MMEL-CP0205-PUB-F7X.
Dassault SB F7X-322 original issue dated 24 October-2017.
Dassault SB F2000EX-322 original issue dated 17 October 2016.
Dassault SB F2000EX-323 original issue dated 13 July 2017.
Dassault SB F900EX-422 original issue dated 22 September 2017.
TE.CAP.00110-005 © European Aviation Safety Agency. All rights reserved. ISO9001 Certified. Page 3 of 4
Proprietary document. Copies are not controlled. Confirm revision status through the EASA-Internet/Intranet.
An agency of the European Union

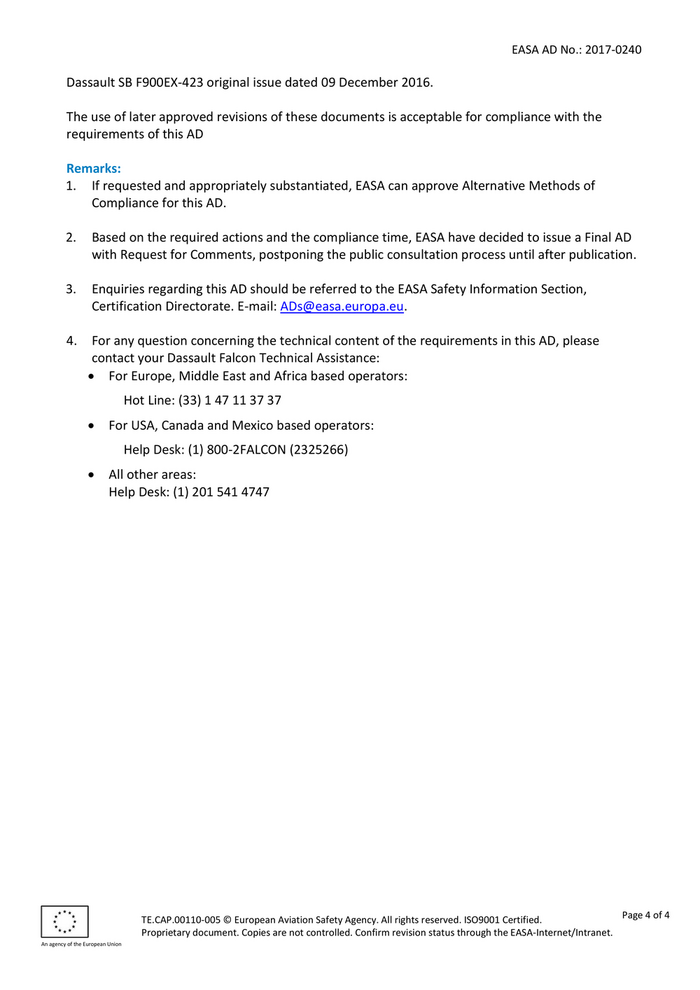

EASA AD No.: 2017-0240
Dassault SB F900EX-423 original issue dated 09 December 2016.
The use of later approved revisions of these documents is acceptable for compliance with the
requirements of this AD
Remarks:
1. If requested and appropriately substantiated, EASA can approve Alternative Methods of
Compliance for this AD.
2. Based on the required actions and the compliance time, EASA have decided to issue a Final AD
with Request for Comments, postponing the public consultation process until after publication.
3. Enquiries regarding this AD should be referred to the EASA Safety Information Section,
Certification Directorate. E-mail: ADs@easa.europa.eu.
4. For any question concerning the technical content of the requirements in this AD, please
contact your Dassault Falcon Technical Assistance:
For Europe, Middle East and Africa based operators:
Hot Line: (33) 1 47 11 37 37
For USA, Canada and Mexico based operators:
Help Desk: (1) 800-2FALCON (2325266)
All other areas:
Help Desk: (1) 201 541 4747
TE.CAP.00110-005 © European Aviation Safety Agency. All rights reserved. ISO9001 Certified. Page 4 of 4
Proprietary document. Copies are not controlled. Confirm revision status through the EASA-Internet/Intranet.
An agency of the European Union

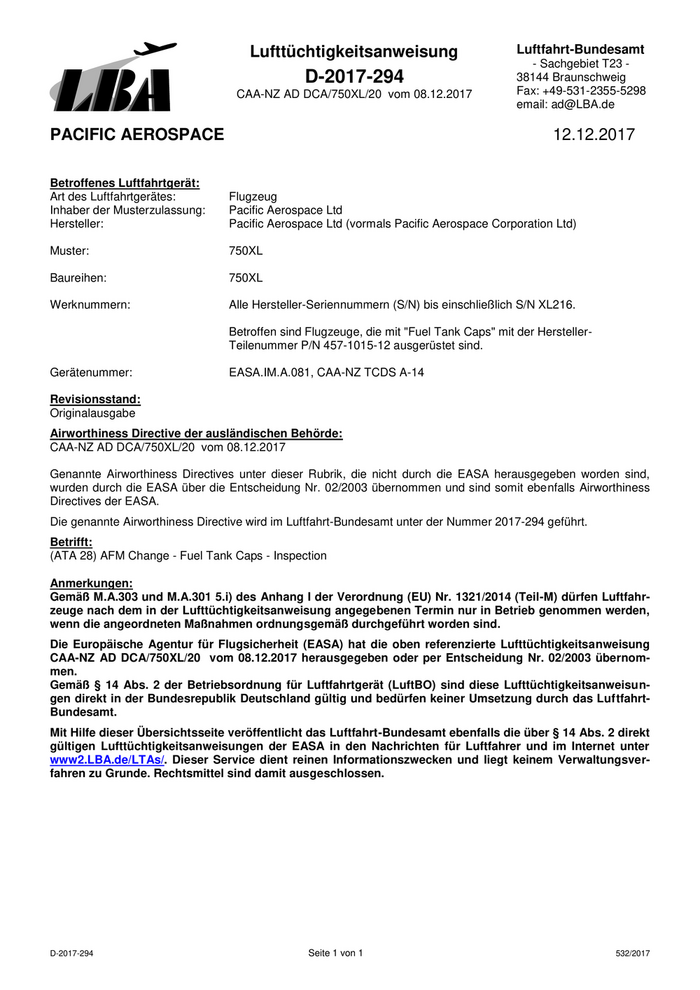

Lufttüchtigkeitsanweisung Luftfahrt-Bundesamt
- Sachgebiet T23 -
D-2017-294 38144 Braunschweig
CAA-NZ AD DCA/750XL/20 vom 08.12.2017 Fax: +49-531-2355-5298
email: ad@LBA.de
PACIFIC AEROSPACE 12.12.2017
Betroffenes Luftfahrtgerät:
Art des Luftfahrtgerätes: Flugzeug
Inhaber der Musterzulassung: Pacific Aerospace Ltd
Hersteller: Pacific Aerospace Ltd (vormals Pacific Aerospace Corporation Ltd)
Muster: 750XL
Baureihen: 750XL
Werknummern: Alle Hersteller-Seriennummern (S/N) bis einschließlich S/N XL216.
Betroffen sind Flugzeuge, die mit "Fuel Tank Caps" mit der Hersteller-
Teilenummer P/N 457-1015-12 ausgerüstet sind.
Gerätenummer: EASA.IM.A.081, CAA-NZ TCDS A-14
Revisionsstand:
Originalausgabe
Airworthiness Directive der ausländischen Behörde:
CAA-NZ AD DCA/750XL/20 vom 08.12.2017
Genannte Airworthiness Directives unter dieser Rubrik, die nicht durch die EASA herausgegeben worden sind,
wurden durch die EASA über die Entscheidung Nr. 02/2003 übernommen und sind somit ebenfalls Airworthiness
Directives der EASA.
Die genannte Airworthiness Directive wird im Luftfahrt-Bundesamt unter der Nummer 2017-294 geführt.
Betrifft:
(ATA 28) AFM Change - Fuel Tank Caps - Inspection
Anmerkungen:
Gemäß M.A.303 und M.A.301 5.i) des Anhang I der Verordnung (EU) Nr. 1321/2014 (Teil-M) dürfen Luftfahr-
zeuge nach dem in der Lufttüchtigkeitsanweisung angegebenen Termin nur in Betrieb genommen werden,
wenn die angeordneten Maßnahmen ordnungsgemäß durchgeführt worden sind.
Die Europäische Agentur für Flugsicherheit (EASA) hat die oben referenzierte Lufttüchtigkeitsanweisung
CAA-NZ AD DCA/750XL/20 vom 08.12.2017 herausgegeben oder per Entscheidung Nr. 02/2003 übernom-
men.
Gemäß § 14 Abs. 2 der Betriebsordnung für Luftfahrtgerät (LuftBO) sind diese Lufttüchtigkeitsanweisun-
gen direkt in der Bundesrepublik Deutschland gültig und bedürfen keiner Umsetzung durch das Luftfahrt-
Bundesamt.
Mit Hilfe dieser Übersichtsseite veröffentlicht das Luftfahrt-Bundesamt ebenfalls die über § 14 Abs. 2 direkt
gültigen Lufttüchtigkeitsanweisungen der EASA in den Nachrichten für Luftfahrer und im Internet unter
www2.LBA.de/LTAs/. Dieser Service dient reinen Informationszwecken und liegt keinem Verwaltungsver-
fahren zu Grunde. Rechtsmittel sind damit ausgeschlossen.
D-2017-294 Seite 1 von 1 532/2017

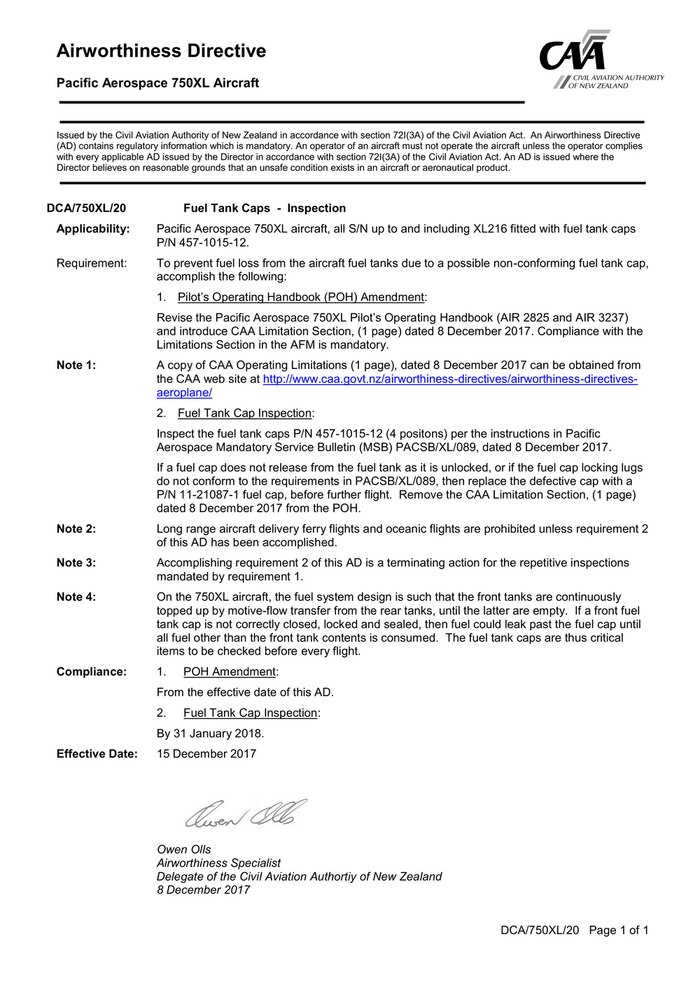

Airworthiness Directive
Pacific Aerospace 750XL Aircraft
Issued by the Civil Aviation Authority of New Zealand in accordance with section 72I(3A) of the Civil Aviation Act. An Airworthiness Directive
(AD) contains regulatory information which is mandatory. An operator of an aircraft must not operate the aircraft unless the operator complies
with every applicable AD issued by the Director in accordance with section 72I(3A) of the Civil Aviation Act. An AD is issued where the
Director believes on reasonable grounds that an unsafe condition exists in an aircraft or aeronautical product.
DCA/750XL/20 Fuel Tank Caps - Inspection
Applicability: Pacific Aerospace 750XL aircraft, all S/N up to and including XL216 fitted with fuel tank caps
P/N 457-1015-12.
Requirement: To prevent fuel loss from the aircraft fuel tanks due to a possible non-conforming fuel tank cap,
accomplish the following:
1. Pilot’s Operating Handbook (POH) Amendment:
Revise the Pacific Aerospace 750XL Pilot’s Operating Handbook (AIR 2825 and AIR 3237)
and introduce CAA Limitation Section, (1 page) dated 8 December 2017. Compliance with the
Limitations Section in the AFM is mandatory.
Note 1: A copy of CAA Operating Limitations (1 page), dated 8 December 2017 can be obtained from
the CAA web site at http://www.caa.govt.nz/airworthiness-directives/airworthiness-directives-
aeroplane/
2. Fuel Tank Cap Inspection:
Inspect the fuel tank caps P/N 457-1015-12 (4 positons) per the instructions in Pacific
Aerospace Mandatory Service Bulletin (MSB) PACSB/XL/089, dated 8 December 2017.
If a fuel cap does not release from the fuel tank as it is unlocked, or if the fuel cap locking lugs
do not conform to the requirements in PACSB/XL/089, then replace the defective cap with a
P/N 11-21087-1 fuel cap, before further flight. Remove the CAA Limitation Section, (1 page)
dated 8 December 2017 from the POH.
Note 2: Long range aircraft delivery ferry flights and oceanic flights are prohibited unless requirement 2
of this AD has been accomplished.
Note 3: Accomplishing requirement 2 of this AD is a terminating action for the repetitive inspections
mandated by requirement 1.
Note 4: On the 750XL aircraft, the fuel system design is such that the front tanks are continuously
topped up by motive-flow transfer from the rear tanks, until the latter are empty. If a front fuel
tank cap is not correctly closed, locked and sealed, then fuel could leak past the fuel cap until
all fuel other than the front tank contents is consumed. The fuel tank caps are thus critical
items to be checked before every flight.
Compliance: 1. POH Amendment:
From the effective date of this AD.
2. Fuel Tank Cap Inspection:
By 31 January 2018.
Effective Date: 15 December 2017
Owen Olls
Airworthiness Specialist
Delegate of the Civil Aviation Authortiy of New Zealand
8 December 2017
DCA/750XL/20 Page 1 of 1

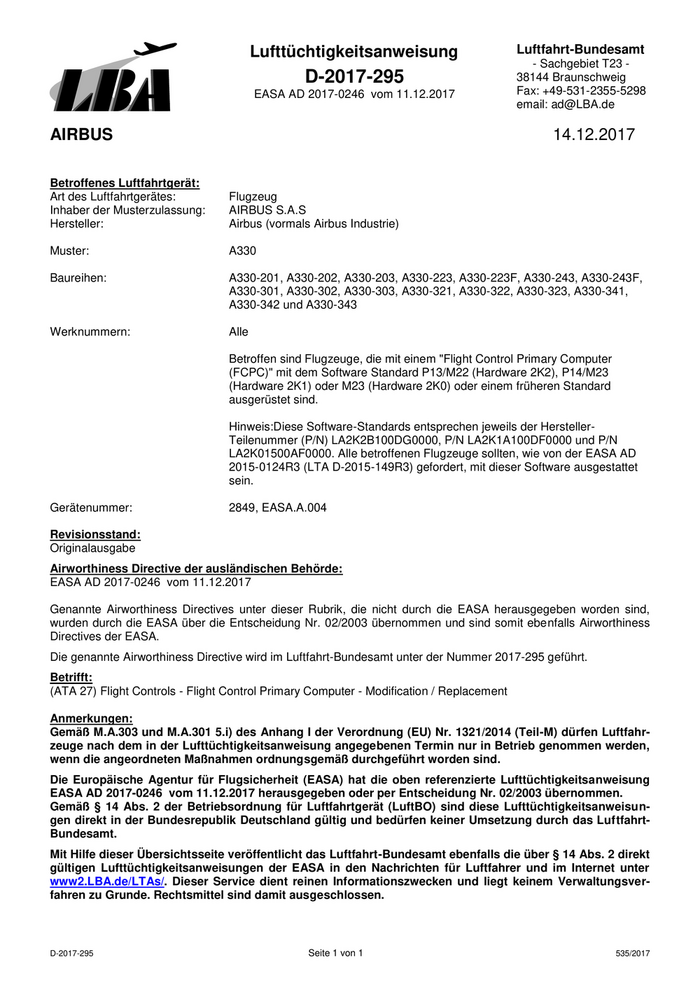

Lufttüchtigkeitsanweisung Luftfahrt-Bundesamt
- Sachgebiet T23 -
D-2017-295 38144 Braunschweig
EASA AD 2017-0246 vom 11.12.2017 Fax: +49-531-2355-5298
email: ad@LBA.de
AIRBUS 14.12.2017
Betroffenes Luftfahrtgerät:
Art des Luftfahrtgerätes: Flugzeug
Inhaber der Musterzulassung: AIRBUS S.A.S
Hersteller: Airbus (vormals Airbus Industrie)
Muster: A330
Baureihen: A330-201, A330-202, A330-203, A330-223, A330-223F, A330-243, A330-243F,
A330-301, A330-302, A330-303, A330-321, A330-322, A330-323, A330-341,
A330-342 und A330-343
Werknummern: Alle
Betroffen sind Flugzeuge, die mit einem "Flight Control Primary Computer
(FCPC)" mit dem Software Standard P13/M22 (Hardware 2K2), P14/M23
(Hardware 2K1) oder M23 (Hardware 2K0) oder einem früheren Standard
ausgerüstet sind.
Hinweis:Diese Software-Standards entsprechen jeweils der Hersteller-
Teilenummer (P/N) LA2K2B100DG0000, P/N LA2K1A100DF0000 und P/N
LA2K01500AF0000. Alle betroffenen Flugzeuge sollten, wie von der EASA AD
2015-0124R3 (LTA D-2015-149R3) gefordert, mit dieser Software ausgestattet
sein.
Gerätenummer: 2849, EASA.A.004
Revisionsstand:
Originalausgabe
Airworthiness Directive der ausländischen Behörde:
EASA AD 2017-0246 vom 11.12.2017
Genannte Airworthiness Directives unter dieser Rubrik, die nicht durch die EASA herausgegeben worden sind,
wurden durch die EASA über die Entscheidung Nr. 02/2003 übernommen und sind somit ebenfalls Airworthiness
Directives der EASA.
Die genannte Airworthiness Directive wird im Luftfahrt-Bundesamt unter der Nummer 2017-295 geführt.
Betrifft:
(ATA 27) Flight Controls - Flight Control Primary Computer - Modification / Replacement
Anmerkungen:
Gemäß M.A.303 und M.A.301 5.i) des Anhang I der Verordnung (EU) Nr. 1321/2014 (Teil-M) dürfen Luftfahr-
zeuge nach dem in der Lufttüchtigkeitsanweisung angegebenen Termin nur in Betrieb genommen werden,
wenn die angeordneten Maßnahmen ordnungsgemäß durchgeführt worden sind.
Die Europäische Agentur für Flugsicherheit (EASA) hat die oben referenzierte Lufttüchtigkeitsanweisung
EASA AD 2017-0246 vom 11.12.2017 herausgegeben oder per Entscheidung Nr. 02/2003 übernommen.
Gemäß § 14 Abs. 2 der Betriebsordnung für Luftfahrtgerät (LuftBO) sind diese Lufttüchtigkeitsanweisun-
gen direkt in der Bundesrepublik Deutschland gültig und bedürfen keiner Umsetzung durch das Luftfahrt-
Bundesamt.
Mit Hilfe dieser Übersichtsseite veröffentlicht das Luftfahrt-Bundesamt ebenfalls die über § 14 Abs. 2 direkt
gültigen Lufttüchtigkeitsanweisungen der EASA in den Nachrichten für Luftfahrer und im Internet unter
www2.LBA.de/LTAs/. Dieser Service dient reinen Informationszwecken und liegt keinem Verwaltungsver-
fahren zu Grunde. Rechtsmittel sind damit ausgeschlossen.
D-2017-295 Seite 1 von 1 535/2017

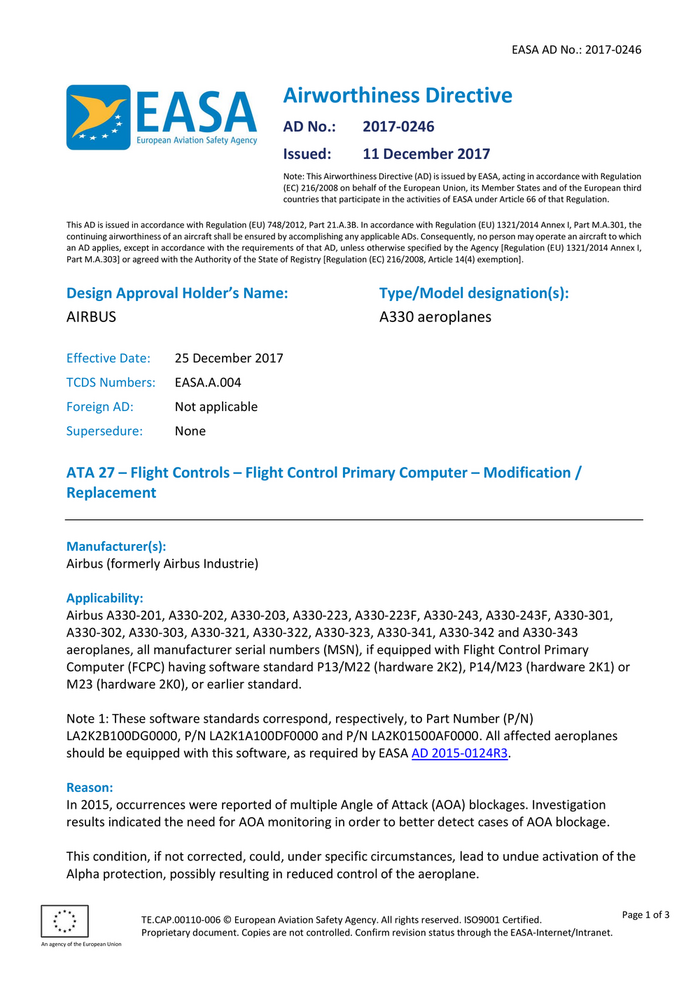

EASA AD No.: 2017-0246
Airworthiness Directive
AD No.: 2017-0246
Issued: 11 December 2017
Note: This Airworthiness Directive (AD) is issued by EASA, acting in accordance with Regulation
(EC) 216/2008 on behalf of the European Union, its Member States and of the European third
countries that participate in the activities of EASA under Article 66 of that Regulation.
This AD is issued in accordance with Regulation (EU) 748/2012, Part 21.A.3B. In accordance with Regulation (EU) 1321/2014 Annex I, Part M.A.301, the
continuing airworthiness of an aircraft shall be ensured by accomplishing any applicable ADs. Consequently, no person may operate an aircraft to which
an AD applies, except in accordance with the requirements of that AD, unless otherwise specified by the Agency [Regulation (EU) 1321/2014 Annex I,
Part M.A.303] or agreed with the Authority of the State of Registry [Regulation (EC) 216/2008, Article 14(4) exemption].
Design Approval Holder’s Name: Type/Model designation(s):
AIRBUS A330 aeroplanes
Effective Date: 25 December 2017
TCDS Numbers: EASA.A.004
Foreign AD: Not applicable
Supersedure: None
ATA 27 – Flight Controls – Flight Control Primary Computer – Modification /
Replacement
Manufacturer(s):
Airbus (formerly Airbus Industrie)
Applicability:
Airbus A330-201, A330-202, A330-203, A330-223, A330-223F, A330-243, A330-243F, A330-301,
A330-302, A330-303, A330-321, A330-322, A330-323, A330-341, A330-342 and A330-343
aeroplanes, all manufacturer serial numbers (MSN), if equipped with Flight Control Primary
Computer (FCPC) having software standard P13/M22 (hardware 2K2), P14/M23 (hardware 2K1) or
M23 (hardware 2K0), or earlier standard.
Note 1: These software standards correspond, respectively, to Part Number (P/N)
LA2K2B100DG0000, P/N LA2K1A100DF0000 and P/N LA2K01500AF0000. All affected aeroplanes
should be equipped with this software, as required by EASA AD 2015-0124R3.
Reason:
In 2015, occurrences were reported of multiple Angle of Attack (AOA) blockages. Investigation
results indicated the need for AOA monitoring in order to better detect cases of AOA blockage.
This condition, if not corrected, could, under specific circumstances, lead to undue activation of the
Alpha protection, possibly resulting in reduced control of the aeroplane.
TE.CAP.00110-006 © European Aviation Safety Agency. All rights reserved. ISO9001 Certified. Page 1 of 3
Proprietary document. Copies are not controlled. Confirm revision status through the EASA-Internet/Intranet.
An agency of the European Union
EASA AD No.: 2017-0246

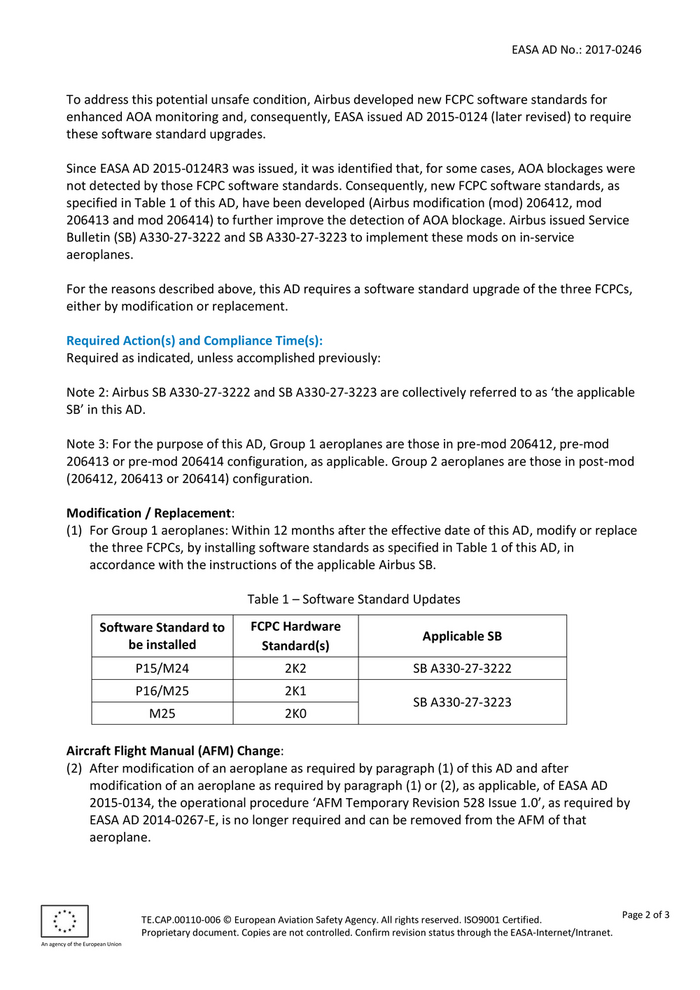

To address this potential unsafe condition, Airbus developed new FCPC software standards for
enhanced AOA monitoring and, consequently, EASA issued AD 2015-0124 (later revised) to require
these software standard upgrades.
Since EASA AD 2015-0124R3 was issued, it was identified that, for some cases, AOA blockages were
not detected by those FCPC software standards. Consequently, new FCPC software standards, as
specified in Table 1 of this AD, have been developed (Airbus modification (mod) 206412, mod
206413 and mod 206414) to further improve the detection of AOA blockage. Airbus issued Service
Bulletin (SB) A330-27-3222 and SB A330-27-3223 to implement these mods on in-service
aeroplanes.
For the reasons described above, this AD requires a software standard upgrade of the three FCPCs,
either by modification or replacement.
Required Action(s) and Compliance Time(s):
Required as indicated, unless accomplished previously:
Note 2: Airbus SB A330-27-3222 and SB A330-27-3223 are collectively referred to as ‘the applicable
SB’ in this AD.
Note 3: For the purpose of this AD, Group 1 aeroplanes are those in pre-mod 206412, pre-mod
206413 or pre-mod 206414 configuration, as applicable. Group 2 aeroplanes are those in post-mod
(206412, 206413 or 206414) configuration.
Modification / Replacement:
(1) For Group 1 aeroplanes: Within 12 months after the effective date of this AD, modify or replace
the three FCPCs, by installing software standards as specified in Table 1 of this AD, in
accordance with the instructions of the applicable Airbus SB.
Table 1 – Software Standard Updates
Software Standard to FCPC Hardware
Applicable SB
be installed Standard(s)
P15/M24 2K2 SB A330-27-3222
P16/M25 2K1
SB A330-27-3223
M25 2K0
Aircraft Flight Manual (AFM) Change:
(2) After modification of an aeroplane as required by paragraph (1) of this AD and after
modification of an aeroplane as required by paragraph (1) or (2), as applicable, of EASA AD
2015-0134, the operational procedure ‘AFM Temporary Revision 528 Issue 1.0’, as required by
EASA AD 2014-0267-E, is no longer required and can be removed from the AFM of that
aeroplane.
TE.CAP.00110-006 © European Aviation Safety Agency. All rights reserved. ISO9001 Certified. Page 2 of 3
Proprietary document. Copies are not controlled. Confirm revision status through the EASA-Internet/Intranet.
An agency of the European Union
EASA AD No.: 2017-0246

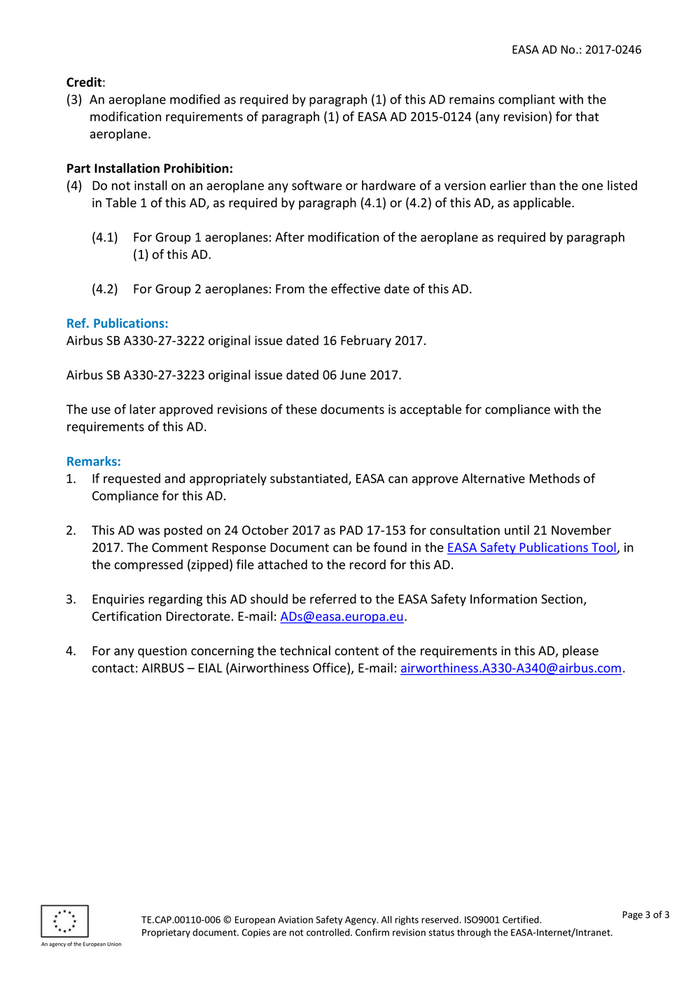

Credit:
(3) An aeroplane modified as required by paragraph (1) of this AD remains compliant with the
modification requirements of paragraph (1) of EASA AD 2015-0124 (any revision) for that
aeroplane.
Part Installation Prohibition:
(4) Do not install on an aeroplane any software or hardware of a version earlier than the one listed
in Table 1 of this AD, as required by paragraph (4.1) or (4.2) of this AD, as applicable.
(4.1) For Group 1 aeroplanes: After modification of the aeroplane as required by paragraph
(1) of this AD.
(4.2) For Group 2 aeroplanes: From the effective date of this AD.
Ref. Publications:
Airbus SB A330-27-3222 original issue dated 16 February 2017.
Airbus SB A330-27-3223 original issue dated 06 June 2017.
The use of later approved revisions of these documents is acceptable for compliance with the
requirements of this AD.
Remarks:
1. If requested and appropriately substantiated, EASA can approve Alternative Methods of
Compliance for this AD.
2. This AD was posted on 24 October 2017 as PAD 17-153 for consultation until 21 November
2017. The Comment Response Document can be found in the EASA Safety Publications Tool, in
the compressed (zipped) file attached to the record for this AD.
3. Enquiries regarding this AD should be referred to the EASA Safety Information Section,
Certification Directorate. E-mail: ADs@easa.europa.eu.
4. For any question concerning the technical content of the requirements in this AD, please
contact: AIRBUS – EIAL (Airworthiness Office), E-mail: airworthiness.A330-A340@airbus.com.
TE.CAP.00110-006 © European Aviation Safety Agency. All rights reserved. ISO9001 Certified. Page 3 of 3
Proprietary document. Copies are not controlled. Confirm revision status through the EASA-Internet/Intranet.
An agency of the European Union
Lufttüchtigkeitsanweisung Luftfahrt-Bundesamt
- Sachgebiet T23 -
D-2017-296 38144 Braunschweig
FAA AD 2017-24-10 - Amdt. 39-19114 Fax: +49-531-2355-5298
email: ad@LBA.de
BOEING 14.12.2017
Betroffenes Luftfahrtgerät:
Art des Luftfahrtgerätes: Flugzeug
Inhaber der Musterzulassung: The Boeing Company
Hersteller: The Boeing Company
Muster: BOEING 757
Baureihen: 757-200, 757-200PF und
757-300
Werknummern: Gemäß Boeing Alert Service Bulletin 757-53A0101 vom 08.11.2016.
Gerätenummer: 2845, EASA.IM.A.205, FAA TCDS A2NM
Revisionsstand:
Originalausgabe
Airworthiness Directive der ausländischen Behörde:
FAA AD 2017-24-10 - Amdt. 39-19114
Genannte Airworthiness Directives unter dieser Rubrik, die nicht durch die EASA herausgegeben worden sind,
wurden durch die EASA über die Entscheidung Nr. 02/2003 übernommen und sind somit ebenfalls Airworthiness
Directives der EASA.
Die genannte Airworthiness Directive wird im Luftfahrt-Bundesamt unter der Nummer 2017-296 geführt.
Betrifft:
(ATA 53) Fuselage - Fuselage Frame Inner Chord - Inspection
Anmerkungen:
Gemäß M.A.303 und M.A.301 5.i) des Anhang I der Verordnung (EU) Nr. 1321/2014 (Teil-M) dürfen Luftfahr-
zeuge nach dem in der Lufttüchtigkeitsanweisung angegebenen Termin nur in Betrieb genommen werden,
wenn die angeordneten Maßnahmen ordnungsgemäß durchgeführt worden sind.
Die Europäische Agentur für Flugsicherheit (EASA) hat die oben referenzierte Lufttüchtigkeitsanweisung
FAA AD 2017-24-10 - Amdt. 39-19114 herausgegeben oder per Entscheidung Nr. 02/2003 übernommen.
Gemäß § 14 Abs. 2 der Betriebsordnung für Luftfahrtgerät (LuftBO) sind diese Lufttüchtigkeitsanweisun-
gen direkt in der Bundesrepublik Deutschland gültig und bedürfen keiner Umsetzung durch das Luftfahrt-
Bundesamt.
Mit Hilfe dieser Übersichtsseite veröffentlicht das Luftfahrt-Bundesamt ebenfalls die über § 14 Abs. 2 direkt
gültigen Lufttüchtigkeitsanweisungen der EASA in den Nachrichten für Luftfahrer und im Internet unter
www2.LBA.de/LTAs/. Dieser Service dient reinen Informationszwecken und liegt keinem Verwaltungsver-
fahren zu Grunde. Rechtsmittel sind damit ausgeschlossen.
D-2017-296 Seite 1 von 1 538/2017
