…That still have limitations • Indeed, since 2004, the international Maritime Organization (IMO) has required AIS transponders to be installed aboard most vessels. Most, and not each. • The Safety of Life at Sea (SOLAS) convention states that “All ships of 300 gross tonnage and upwards engaged on international voyages and cargo ships of 500 gross tonnage and upwards not engaged on international voyages and passenger ships irrespective of size shall be fitted with an AIS”. • What about vessels that are not fitted with AIS? What about the vessels that turn their transmitter down?
11

Earth Observation: The perfect complement to AIS data Optical sensor Example of ship detection using Sentinel 2 A Image acquired on Mogadiscio - Somalia 05-Apr-2016,07:23 UTC
12

Earth Observation: The perfect complement to AIS data Optical sensor Vehicle Small sized cities No Vehicle detected Very High Resolution Optical images for Ships                                         Low activity detection Very High Resolution Optical images for activity level detection, infrastructure evolutions, vehicle activities…
13

Earth Observation: The perfect complement to AIS data Radar sensor EEZ                  Area Of Interest              Small Area Of Interest Resolution : from 50 to 150 m     Resolution : from 10 to 30 m      Resolution : from 3 to10 m Coverage : 300 to 500 km swath    Coverage : 50 to 150 km swath     Coverage : 20 to 150 km swath Acquisitions : Planified          Acquisitions : On demand (> 12h)  Acquisitions : On demand (> 12h) Processing : < 30 minutes         Processing : < 30 minutes         Processing : depending on the need Field of interest:                Field of interest:                Field of interest: - Vessel detection (> 50-100 m)   - Vessel detection (> 15-20 m)    - Vessel detection (> 5-10 m) - - Oilspill detection              - Oilspill detection              - Vessel (> 100 m) - Icebergs detection              - Sea state monitoring            - Sea state monitoring - Sea state monitoring
14

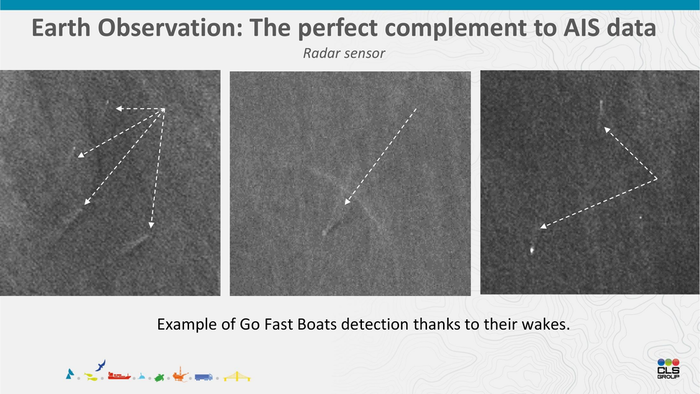

Earth Observation: The perfect complement to AIS data Radar sensor Example of Go Fast Boats detection thanks to their wakes.
15

CLS Maritime Awareness System Data Fusion and Analysis to strengthen Maritime Awareness ▪ Big Data ▪ Various sources of data (AIS, VMS, LRIT, EO, Maritime databases…) ▪ Real-Time and historical analysis ▪ Patented algorithms ▪ Patterns analysis ▪ Alerts monitoring 16
16

CLS Maritime Awareness System - Overview
17

CLS Maritime Awareness System - Operational Use Area of interest Surveillance Fisheries control Border Surveillance EEZ Surveillance Illegal        Fleet Tracking activities     Vessel of detection at   Interest sea tracking and alerts management
18

10)

2018/09/19 15:47:53 UTC

23 CLSVIGI DO
2 CLS



Additional info



Additional info

„260









Type: 70 - Cargo, all ships of this type 17 I <>
H
Radio Call Sign (RC):5VEH3 Draught:3.2 m 4 Radio Call Sign (RC):5VFH6 Draught:4 m
Width :8 m Length Overall :60 m P| Width :8 m Length Overall :61 m
-- e PR >: a
Last Position Last Position Der 4
1 —
& 2018/07/27 22:58:10 Q 6.79887°, -58.17058° u ETEZAREZERTG I EEE RG m N
@®o 9? ® 213.6° 0.1kt P
s ORB-SAIS- AIS Quality: High F- 200):1:27 128 AIS Quality: High
LER r DL 1/8099 >
Trajectory Nearby Vessel Identity Trajectory Nearby Vessel Identity
a)] change 2] change
| Ku Fa TE l ZI: j Alert j La | TS | PS
[5] pa}
=] AT
Timeline [6] up]
+ Create Report ® View reports —+- Create Report ® View reports

of Use ® 2018 Microsoft Corporation Earthstar Geographics SIO
19

2018-08-02 13:30 UTC – 15:45 UTC Both vessels drifting together (Speed: 2nm) 2018-08-02 13:00 UTC – 13:30 UTC 2018-08-02 18:15 UTC – 2018 -08-03 22:00 UTC First contact between both vessels Ruth keeps drifting alone 2018-08-02 09:15 UTC Jubilee entering the area 2018-08-02 16:15 UTC – 18:15 UTC Both vessels are drifting again together 2018-08-02 15:42 UTC – DEIMOS S-2 Image (Speed: 2nm) Both vessels drifting together
